Description
Introduction:
AM–RCA-0808 is 8×8 audio matrix for switching and distributing stereo audio signals. The output has any channel distribution function. It can
choose one output for multiple audio input signals, or choose one audio input signal for one output or multiple simultaneous outputs.
Features:
Built-in round-robin switching function, can set the interval time and channel arbitrarily.
It supports up to 32 sets of scene storage functions, which can be directly recalled.
Compatible with codes and instructions of all similar products in the market to meet the needs of different industries and customers.
The matrix panel adopts Omron buttons, which are durable, highly sensitive and comfortable to touch.
With 1 x network interface, 2 x RS-232 and RS-485 communication interfaces, dual serial port design.
Open control protocols and protocol standards, support third-party and customer self-developed software control.
Specification:
| Product Hardwarear Information | System structure | Pure hardware architecture |
| Start up | <8s | |
| Operating system | No CPU and operating system | |
| Input/Output Signal | Input interface | RCA, 3PIN |
| Output interface | RCA, 3PIN | |
| Input/Output channel | Maximum support 32 channel input/output | |
| Switching speed | 50ms | |
| Image Processing | Audio input and output level | +19.3Vp-p |
| S/N ratio | ≥91dB | |
| Control | Voltage | 110~240V,50/60Hz |
| Stability | Power | <10W |
| Control method | RS232 / Button |

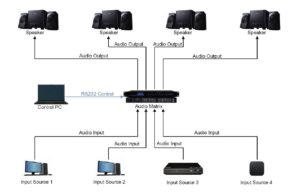

Diagram:
