Description
Introduction:
VW-IPS is an SDVoE-Compliant, All-In-One AV over IP solution that provides highest-quality, uncompressed 4K and zero-frame latency audio/video extension over a standard 10G Copper or Fiber Network Switch with instant switching, Video Wall and MultiView functions. It can transfer advanced HDMI content such as HDR (high dynamic range), full color-depth and multichannel HD Bitstream audio. Flexible transceiver design (one box can be set to encoder or decoder) is much convenient in a real installation site and inventory control. Its built-in Secondary Stream supports a high quality, bandwidth configurable H.264/H.265 compression video stream for portable device preview purpose. Multiple control and data signals can be simultaneously transmitted with audio and video, including bi-directional IR, RS-232, USB KVM, CEC and 1G Ethernet.
Features:
HDMI 2.0b and HDCP 2.2 compliant
Support video resolution up to 4K@60Hz 4:4:4, 18Gbps video bandwidth
Flexible transceiver design (Encoder, Decoder, Copper and Fiber ports within a single box)
Encoder or Decoder mode can be set via Button or API
Automatic detection of Fiber and Copper ports (priority can be set)
Encoder supports HDMI Loop out
Support HDR10, Dolby Vision, HLG, 3D as well
Support full HDMI audio formats, up to Dolby TrueHD, Dolby Atmos and DTS-HD, DTS:X
Support Zero-Frame latency operating mode
Support signal extension, seamless switching, Matrix, Video Wall up to 9×9 and MultiView up to 25 windows
Flexible audio routes control including bidirectional analog audio transmissions between Encoder and Decoder
Built-in H.264/H.265 Secondary Stream (SS) for preview
Support Secondary Stream VLAN tagging and parameters configuration
Support bi-directional IR and RS-232 control signal pass-through
Support USB2.0 (KVM), CEC routing control
Support IR, RS-232, TCP/IP, Web GUI control
Standard POE supported (802.3at PD device)
10G managed network switch
Specification:
| Parameters | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Input Format | 10GBaseT |
| Network Video Bandwidth | 10G |
| Video Resolution | Up to 4K@60Hz 4:4:4 |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Color Depth | Full Color-Depth |
| HDR | HDR, HDR 10, HDR10+, Dolby Vision, HLG |
|
HDMI Audio Formats |
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD, DTS:X |

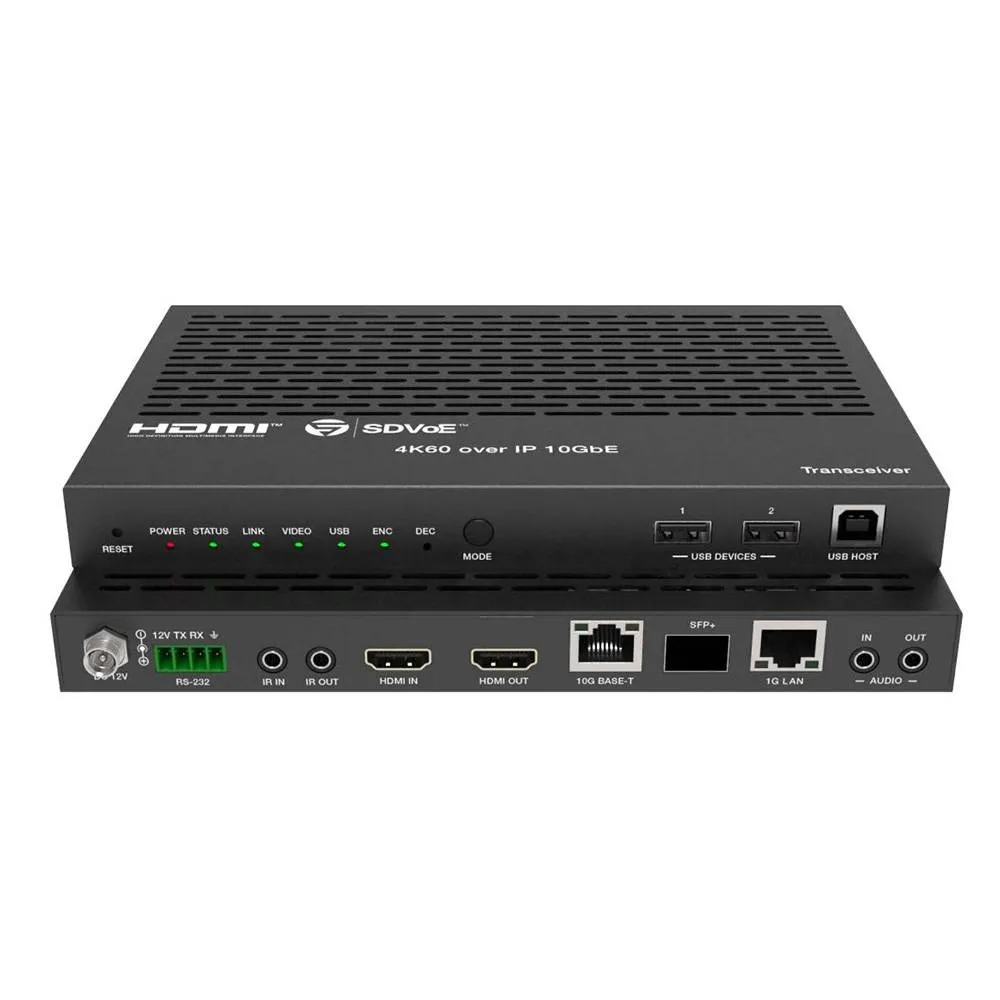

| Analog Audio Formats | Left and Right stereo analog audio |
| Transmission Distance | 100M (CAT6A/7) / 90M(CAT6) |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connection | |
|
Input ports |
1 x HDMI IN [Type A, 19-pin female]
1 x USB 2.0 HOST [Type B, 4-pin female] 1x IR IN [3.5mm Jack] 1x AUDIO IN [3.5mm Jack] 1 x RS-232 [4-pin phoenix connector] |
|
Output ports |
1 x HDMI OUT [Type A, 19-pin female] 1x AUDIO OUT [3.5mm Jack]
1 x IR OUT [3.5mm Jack] 2 x USB 2.0 DEVICE [Type-A, 4pin female] |
|
Network ports |
1 x 10G BASE-T [RJ45 jack]
1 x 10G SFP+ [Fiber slot] 1 x 1G LAN [RJ45 jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 204mm [W] x 134mm [D] x 21.5mm [H] |
| Weight | 693g |
|
Power Supply |
Input: AC100 – 240V 50/60Hz,
Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | ≈13.5W |
| Operating Temperature | 32 – 104°F / 0 – 40°C |
| Storage Temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (no-condensing) |

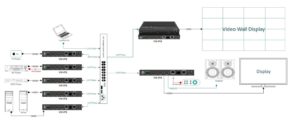

Diagram:
