Description
Introduction:
The 18Gbps HDMI extender can extend hd audio and video signals and one-way IR signals through a single Cat5e/6 line with a length of 50 meters and video resolution up to 4K2K@60Hz 4:4:4 support local HDMI loop output at the receiving end can strip the audio of the source device to analog L/R output, support PoC functionIn addition, the extender supports one-way IR control, that is, the user can control the source through IR signal at the display end.
This extender contains transmitter and receiver two parts through the use of CAT cable, HDMI extension applications to provide the best solution.
Features:
- Conforms to HDMI 2.0 HDCP 2.2/HDCP 1.4 and DVI 1.0 specifications;
- Supports 18Gbps video bandwidth;
- Input and output support video resolution up to 4K2K@60Hz 4:4:4;
- Through a single Cat5e/6 wire, the signal transmission distance can be extended to 50 meters;
- Support 1 HDMI loop output (transmitter);
- With unidirectional IR control;
- Supports the HDR function;
- Supports Power over Cable (PoC);
- Supports automatic EDID copy;
Specification:
| Specification | ||
| HDMI compatible | HDMI 2.0 | |
| HDCP compatible | HDCP 2.2/HDCP 1.4 | |
| Video bandwidth | 18Gbps | |
| Video Resolution | 4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:2 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All 3D TV formats All computer resolutions, including 1920 x 1200 |
|
| Color Space | RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 | |
| Color Depth | 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr4:2:2/4:2:0) 8-bit (4K60Hz 4:4:4 ) |
|
| HDMI audio format | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
|
| Electrostatic Protection | ±8kV (kV) , ±4kV (Contact discharge) | |
| Connect | ||

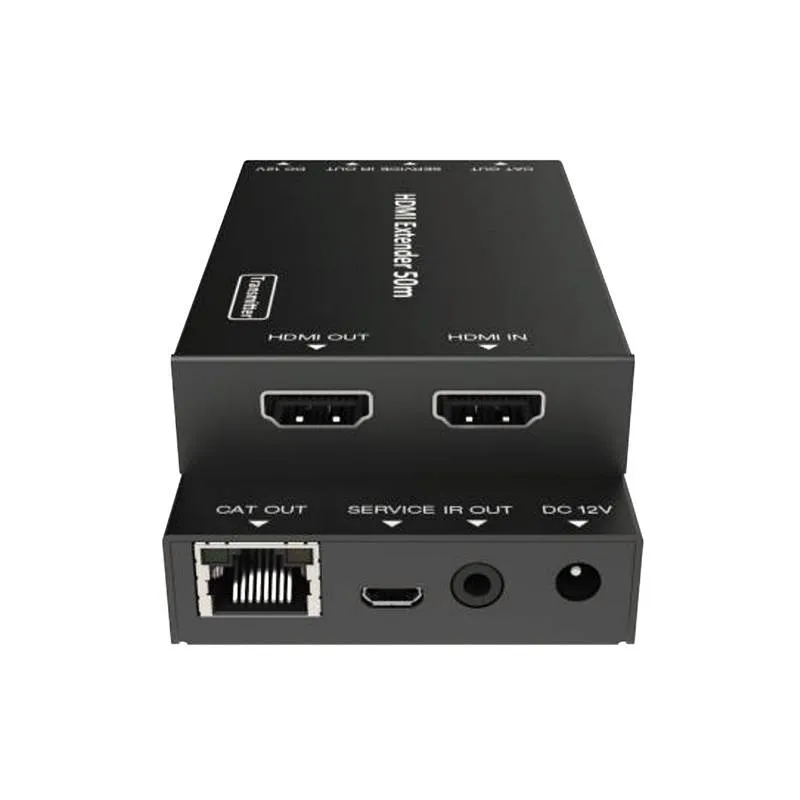

| Launcher | Input：1×HDMI Type A [19-pin Receptacle] 1×SERVICE [Mini-USB, Scalable Link Interface] Output：1×HDMI Type A [19-pin Receptacle] 1×CAT OUT [RJ45, 8-pin Receptacle] Control：1×IR OUT [3.5mm Stereo Mini-jack] |
|
| Receiver | Input：1×CAT IN [RJ45, 8-pin Receptacle] 1×SERVICE [Mini-USB,Scalable Link Interface] Output：1×HDMI Type A [19-pin Receptacle] Control：1×IR IN [3.5mm Stereo Mini-jack] |
|
| Fuselage | ||
| Housing | Metal Case | |
| Color | Black | |
| Size | Launcher / Receiver： 88mm [L] x 61mm [W] x 18mm [H] |
|
| Weight | Launcher：160g，Receiver：155g | |
| Power supplies | Input：AC 100~240V 50/60Hz Output：DC 12V/1A |
|
| Power Consumption | 3.84W | |
| Operating temperature | 0°C ~ 40°C / 32°F ~ 104°F | |
| Storage temperature | -20°C ~ 60°C / -4°F ~ 140°F | |
| Relative humidity | 20~90% RH (No condensation) | |
| Resolution/Range | 4K60 -Meter | 4K30 / 1080P – Meter |
| CAT5e | 50m | 50m |
| CAT6/6a/7 | 60m | 70m |
| Resolution/line length | 4K60 – Meter | 4K30 / 1080P – Meter |
| HDMI IN / OUT | 3m | 10m |
| Advanced high-speed HDMI cable is recommended. | ||
