Description
Introduction:
This HDMI extender can extend hd audio and video signals and IR control signals by 70m (1080p resolution) or 40m (4K30 resolution) over a single Class 6 cable (CAT6), achieving long distance and high quality transmission with zero delay between the signal source and the display deviceSupport local HDMI signal loop, and can be cascading to another extension device video resolution up to 4K2K@30Hz 4:4:4 support EDID copy function (local or remote EDID can be selected) support PCM7.1,Dolby True HD,DTS HD and other audio formats the productionIt is widely used in multimedia video conferencing, distance learning, and other large screen presentation scenarios.
Features:
- Conforms to HDMI 1.4 HDCP 1.4 and DVI 1.0 specifications;
- Video resolution is up to 4K2K@30Hz YUV 4:4:4;
- The maximum signal transmission distance through a single CAT5E/6 network cable is shown as follows:
CAT6: 70m extension, 1080P resolution;Extended 40 meters, 4K30 resolution.
CAT5E: extension 60 meters, resolution 1080P;The extension is 35 meters and the resolution is 4K30.
- You can copy the EDID from the receiving end or the outgoing end;
- Signals are cascaded through an HDMI signal loopout port;
- Unidirectional POC support (from transmitter to receiver);
- Control with unidirectional IR signal;
- Reasonable design, easy to install.
Specification:

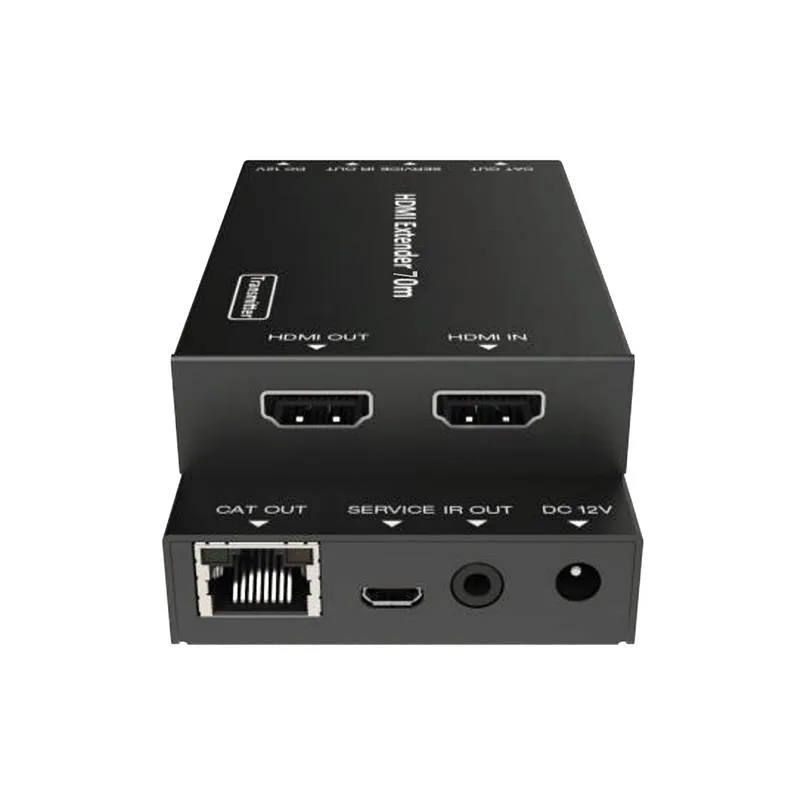

| Specification | |
| HDMI compatible | HDMI 1.4 |
| HDCP compatible | HDCP 1.4 |
| Video bandwidth | 10.2Gbps |
| Video resolution | Up to 4k@30 hz |
| audio format | Up to 7.1ch HD Audio |
| TMDS input signal | 3.3 volts |
| DDC input signal | 5.0 volts/P-P |
| Electrostatic protection | Mannequin：±8kV (kV) , ±4kV (Contact discharge) |
| Link | |
| Launcher | input：1×HDMI IN [Type A, 19-pin Receptacle] Output：1×HDMI OUT [Type A, 19-pin Receptacle] 1×IR OUT [3.5mm, Stereo, Mini socket] 1×CAT OUT [RJ45, 8-pin Receptacle] |
| Receiver | input：1×IR IN [3.5mm，Stereo, Mini socket] 1×CAT IN [RJ45, 8-pin Receptacle] Output:1×HDMI OUT [Type A, 19-pin Receptacle] |
| Fuselage | |
| Housing | Metal Case |
| Color | Black |
| Size | 79.5mm [L] x 69mm [W] x 16.5mm [H] |
| Weight | Launcher：132g，Receiver：130g |
| Power supplies | 12V/1A DC |
| Power Consumption | Launcher：1.86W，Receiver：0.87W |
| Operating temperature | 0°C ~ 40°C |
| Storage temperature | -20°C ~ 60°C |
| Relative humidity | 20~90% RH (No condensation) |

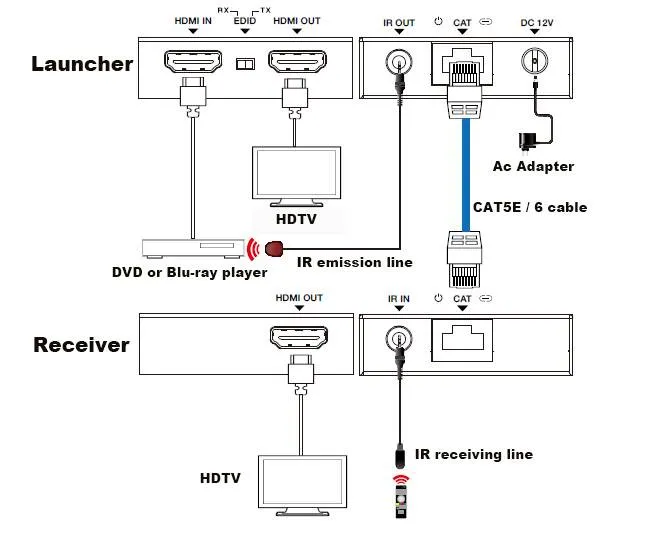

Diagram:
