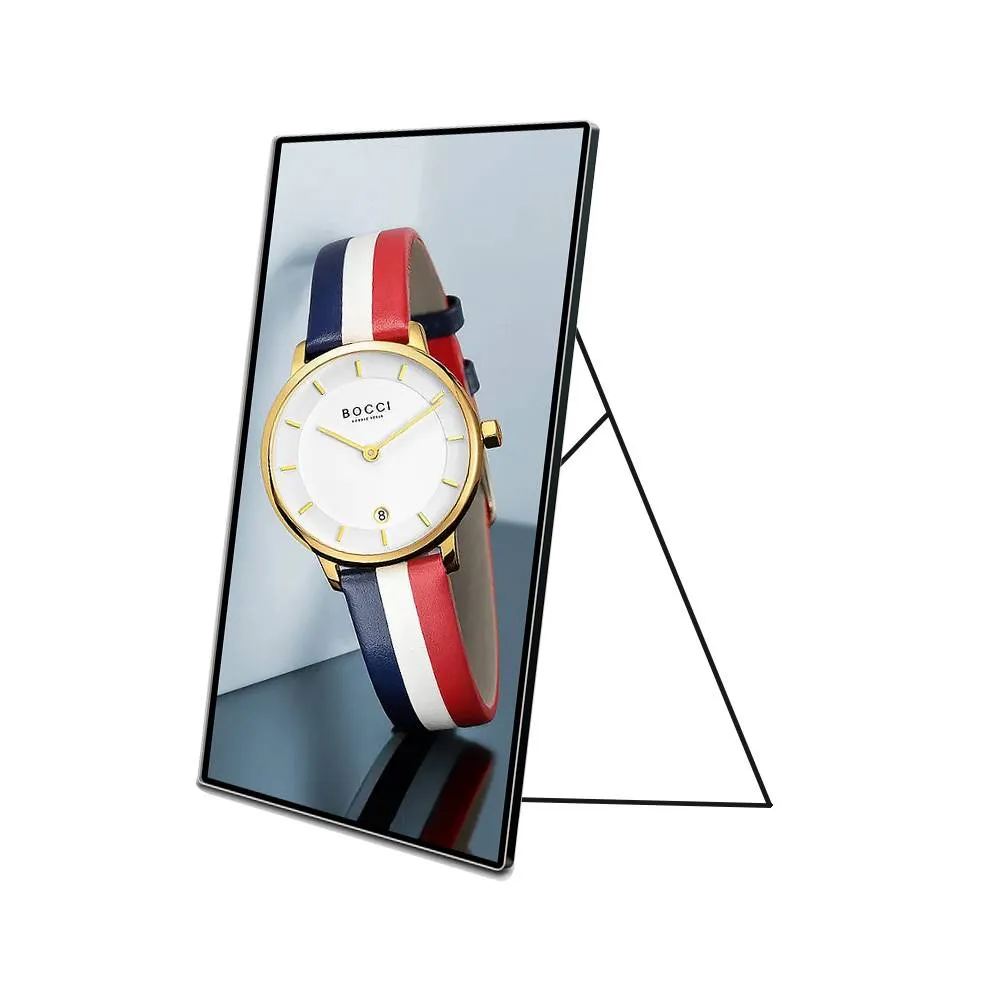

AD Series LED Advertising Dispiay

Description

Introduction:

The LED advertising display integrates the world’s leading small-pitch LED technology and smart Android system. Widely used in airports, stations, supermarkets, retail chains and other commercial display fields.

Ultra-thin, lightweight and innovatively designed mirror LED screens are the latest creation in retail advertising. Compared to traditional bulky LED advertising displays, our screens are lighter, thinner, more convenient, and very simple to set up, move and operate. Compared to LCD displays, the brightness is higher and the contrast ratio is higher, making it the perfect retail solution.



Features:



Intelligent Control

WIFI, 3G/4G, USB or HDMI wireless control etc, achieving both the synchronous and asynchronous control. Multiple poster

spliced together to play video and images to meet various application and advertisement demands.



Support centralized network management, remote control the display to carry out accurately targeted advertisement.



Diversifification

Frame are available in various color.



Hanging, standing and wall mounting are supported. Two way showing method- Horizontal and Verticality



Convenient Use

Completely front service. Quick installation, simple operation, convenient maintenance, saving the cost greatly.



Plug and play is available, automatic full play video source with extra operation. Easy and convenient.



Protections

24hour protection technology to realize functions such as, anti-collision, anti-humidity, anti-static, anti- radiation, wear-resisting,

efficient heat dissipation.







Specification:





	Specification	Parameter	Parameter
Physical Parameter	Lamps	SMD 1515	SMD 2020
	Pixel Pitch(mm)	1.8	2.571
	Module Resolution	160*120	112*84
	Cabinet Resolution	320*1080	224*756
	Density(dots/unit)	345600	169344
	Module Size(L*H*T mm)	288*216*6.2
	Cabinet Size(mm)	576*1944*35
	Cabinets Material	Aluminum
	Modules Array	2*9
	Weight Per Cabinet(kg)	35
	Weight Per Modules(kg)	0.47
Optical Parameter	Grey Scale(bit)	14
	Refresh Rate(Hz)	3840
	Drive Mode	1/30
	Brightness(nit)	600-1200 adjustable
	View Angle	H/160° V/160°
Electrical Parameter	Input Voltage(V)	100-240
	Current Frequency(Hz)	50/60
	Max Power Consumption	654(unit)
	Avg Power Consumption	218(unit)
Application Environment	Storage Temp(℃)	-10 — +60
	Working Temp(℃)	-10 — +50
	Storage Humidity	10%-90%
	Working Humidity	10%-90%
	Protection Level	IP 30
	Life Span(H)	100000
	Installation Method	Hanging,Standing,Wall mounting
	Maintenance Method	Front
