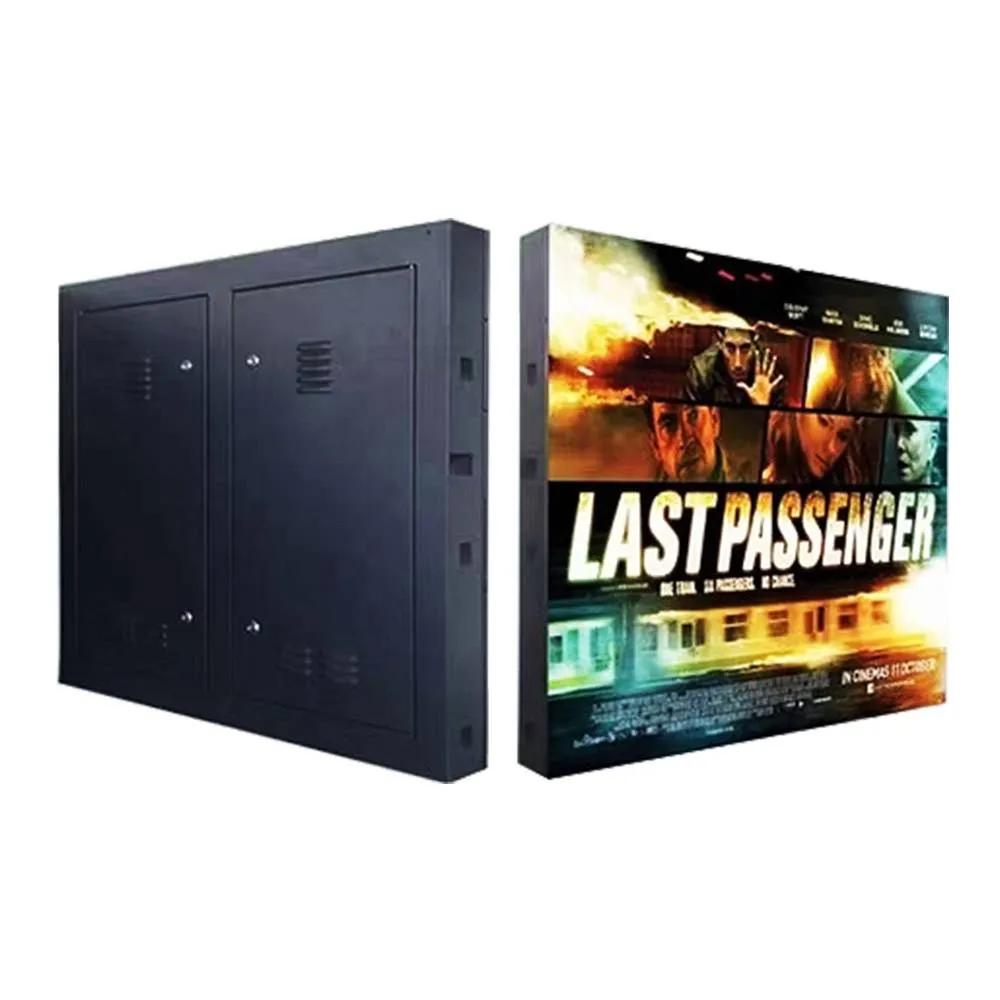

Description
Introduction:
Pixel Pitch: P3.0/P4.0/P5.0/P6.0/P8.0/P10.0
Cabinet Size: 960*960
Brightness: 4200-5000cd/sqm
Refresh Rate: 1920Hz
Features:
High Brightness with 5000:1 Contrast
Adopted high quality LED chip to ensure ≥4000 nits brightness. At the same time, the whole outdoor LED display can be high contrast under sunshine, you can clearly watch the images/videos clearly
Stable and Reliable with IP65 Rating
The special waterproof design of LED Screen protects it from water and dust. When installed in outdoor areas, protection is a serious matter. Special guard protects it from environment dangers. High IP Rating – IP65 ensures great quality outputs in every condition.
Unique Cabinet Design –Easy to Install & Transport
The special waterproof design of LED Screen protects it from water and dust. When installed in outdoor environment, protection is a serious matter. Special guard protects it from environment dangers and ensure the long life span and good performance.
Wide Viewing Angle for Broader Reach
A wide viewing angle of 160° horizontal and 140° in vertical which reaches more viewers. The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs. This makes it suitable for large gathering and outdoor advertisement.
Specification:
| Specification |
P3 |
P4 |
P5 |
P6 |
P8 |
P10 |
|
Pixel Pitch(mm) |
3mm |
4mm |
5mm |
6mm |
8mm |
10mm |
|
Pixel Density (pixels/sqm) |
111,111 |
62,500 |
40,000 |
27,556 |
15,625 |
10,000 |
|
Cabinet Resolution |
320×320 |
240×240 |
192×192 |
160×160 |
120×120 |
96×96 |
|
Cabinet Dimension |
960×960
(mm) |
960×960
(mm) |
960×960
(mm) |
960×960
(mm) |
960×960
(mm) |
960×960
(mm) |
|
Lamp Type |
SMD1919 |
SMD1921 |
SMD2727 |
SMD3535 |
SMD3535 |
SMD3535 |
|
Module Size(mm) |
192×192
(mm) |
320×160
(mm) |
320×160
(mm) |
192×192
(mm) |
320×160
(mm) |
320×160
(mm) |
|
Module Resolution(mm) |
64×64 |
80×40 |
64×32 |
32×32 |
40×20 |
32×16 |
|
Optimum Viewing Distance |
3m-50m |
4m-65m |
5m-72m |
6m-80m |
8m-90m |
10m-100m |
|
Horizontal Viewing Angle |
≥160° |
≥160° |
≥160° |
≥160° |
≥160° |
≥160° |
|
Vertical Viewing Angle |
≥140° |
≥140° |
≥140° |
≥140° |
≥140° |
≥140° |
|
Control System |
Synchronous Control | Synchronous Control | Synchronous Control | Synchronous Control | Synchronous Control | Synchronous Control |
|
Average Power Consumption |
420w/m² |
385w/m² |
385w/m² |
320w/m² |
320w/m² |
320w/m² |
|
Max Power Consumption |
1350w/m² |
1150w/m² |
1150w/m² |
1000w/m² |
1000w/m² |
1000w/m² |
|
Drive Mode |
1/16 |
1/10 |
1/8 |
1/8 |
1/5 |
1/2 |
|
Refresh Rate |
1920Hz |
1920Hz |
1920Hz |
1920Hz |
1920Hz |
1920Hz |
|
Brightness |
4200cd/m² |
4200cd/m² |
4200cd/m² |
5000cd/m² |
4000cd/m² |
5500cd/m² |
|
Frame Rate |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
|
Brightness Adjustment |
16 levels |
16 levels |
16 levels |
16 levels |
16 levels |
16 levels |
|
Operating Temp(℃) |
-20℃~60℃ | |||||
|
Storage Temp(℃) |
-25℃~60℃ |
|||||
|
Life Time |
75,000~100,000hr |
|||||
