Description
Introduction:

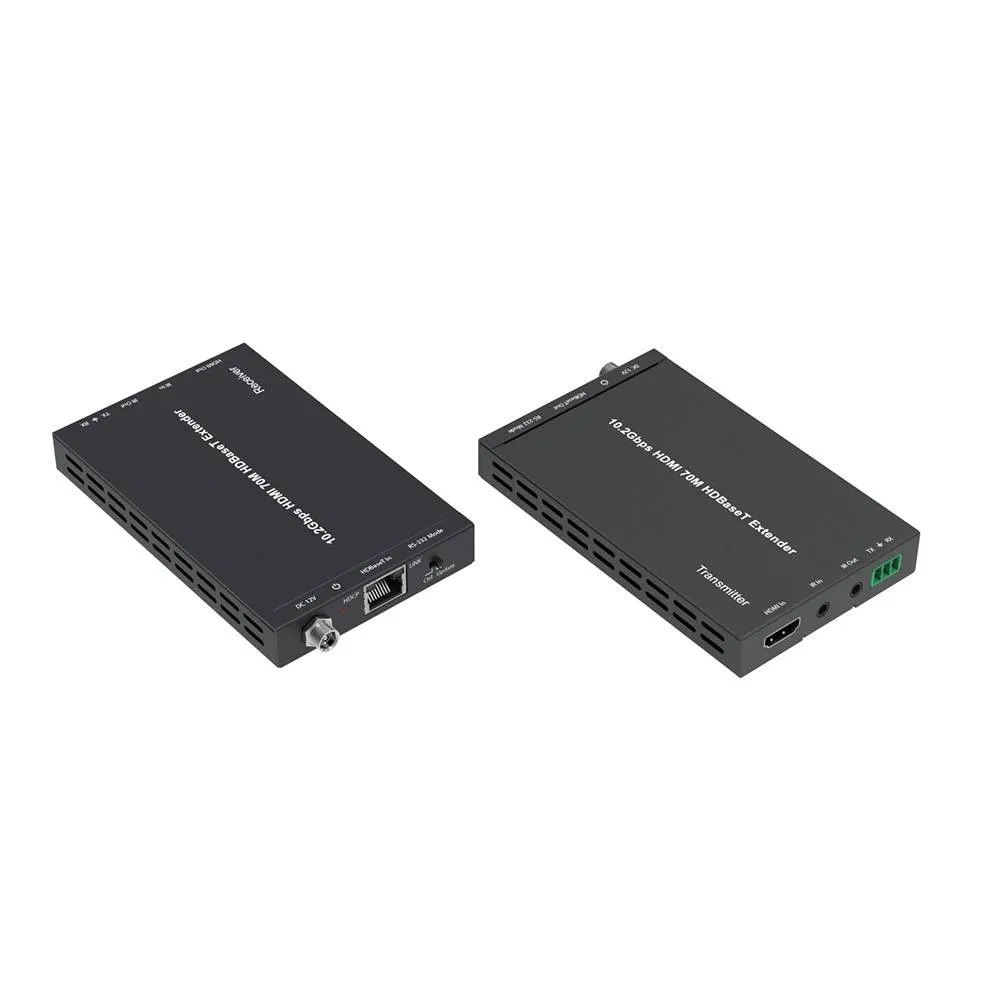

EXT-HB-70C HDMI 70M HDBaseT Extender uses HDBaseT technology to extend the HDMI signal and bi-directional IR control signal to 70 meters via a single Cat 5e/6 cable. This product converts the HDMI signal into a standard HDBaseT signal and then transmits it through the LAN cable. It can easily control the signal source device or display device from the remote end via bi-directional IR signal pass-through. It supports RS-232 signal pass-through, and the resolution is up to 4K×2K@30Hz. This product can be widely used in video conference system, multimedia broadcasting, HDMI signal extension and other fields.
Features:
HDMI 1.4 and HDCP 2.2 compliant
Support video resolution up to 4k2k@30Hz
Support 10.2Gbps video bandwidth
The maximum transmission distance via a single CAT5e/6 cable is:
- 70 meters: 1080P@60Hz/36bit; 3D 1080P@30Hz/36bit;
- 40 meters: 1080P@60Hz/48bit; 1080P@120Hz/24bit;
- 3D 1080P@60Hz/36bit; 4K x 2K@30Hz/24bit.
Support POC (Power Over Cable) function, it means that either the transmitter or receiver is connected to 12V/1A power supply, the other doesn’t need power supply.
With bi-directional IR and RS-232 control signal pass-through
Compact design for easy and flexible installation
Specification:
| Technical | |
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 2.2 |
| Bandwidth | 10.2Gbps |
| Video Resolutions | Up to 4K×2K@30Hz 4:4:4 |
| Transmission Mode | HDBaseT |
| Transmission Distance | 1080P≤70m; 4K×2K≤40m |
| ESD Protection | Human-body Model:
±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
| Connection | |
|
Transmitter ports |
Input: 1×HDMI Type A [19-pin female] Output: 1×HDBT Out [RJ45]
Control: 1×IR In [3.5mm Stereo Mini-jack] 1×IR Out [3.5mm Stereo Mini-jack] 1×RS-232 [Phoenix connector] |
|
Receiver ports |
Input: 1×HDBT Out [RJ45]
Output: 1×HDMI Type A [19-pin female] Control: 1×IR In [3.5mm Stereo Mini-jack] 1×IR Out [3.5mm Stereo Mini-jack] 1×RS-232 [Phoenix connector] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter/Receiver: 120mm (W)×74mm (D)×16mm (H) |
| Weight | Transmitter/Receiver: 240g |
| Power Supply | Input: AC100~240V 50/60Hz
Output: DC12V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 10W (Max) |
| Operating
Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |

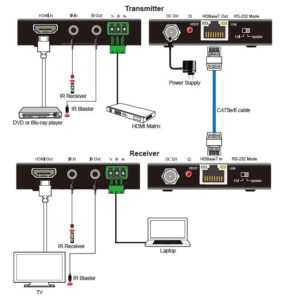

Diagram:
