Description
Introduction:

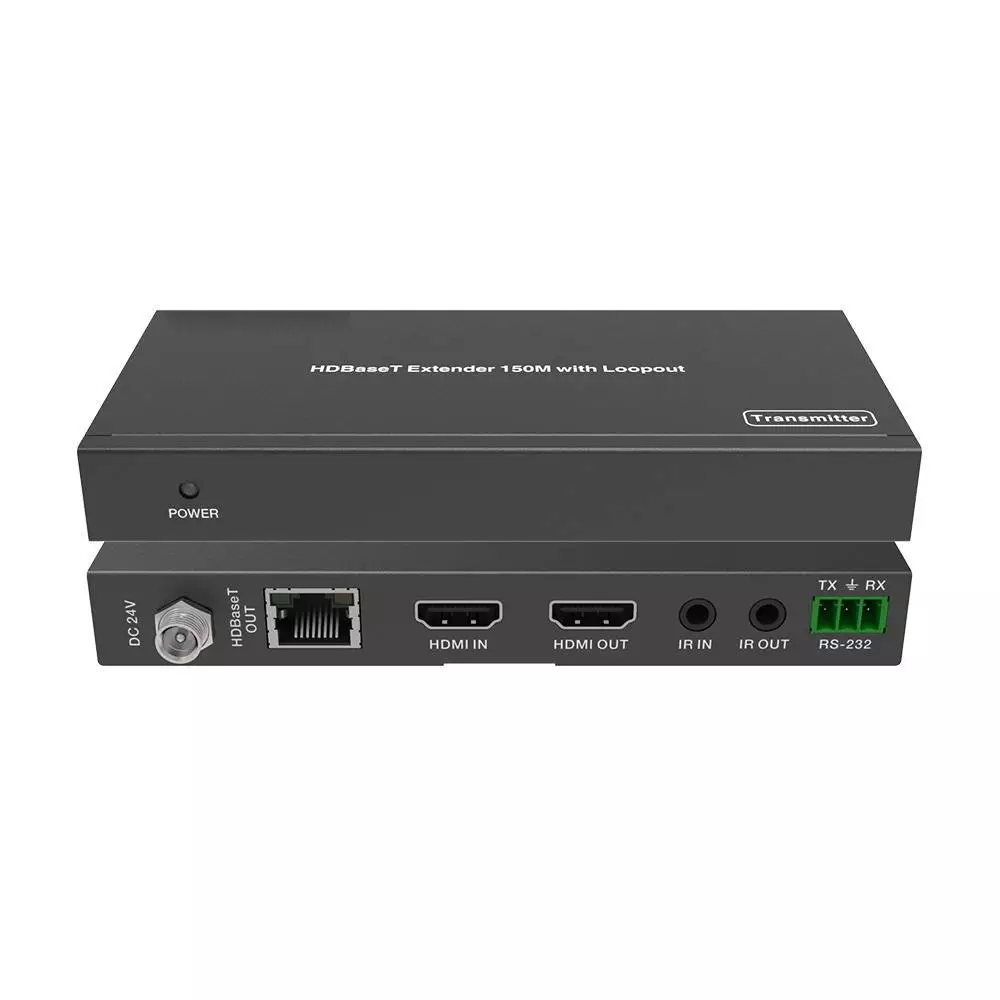

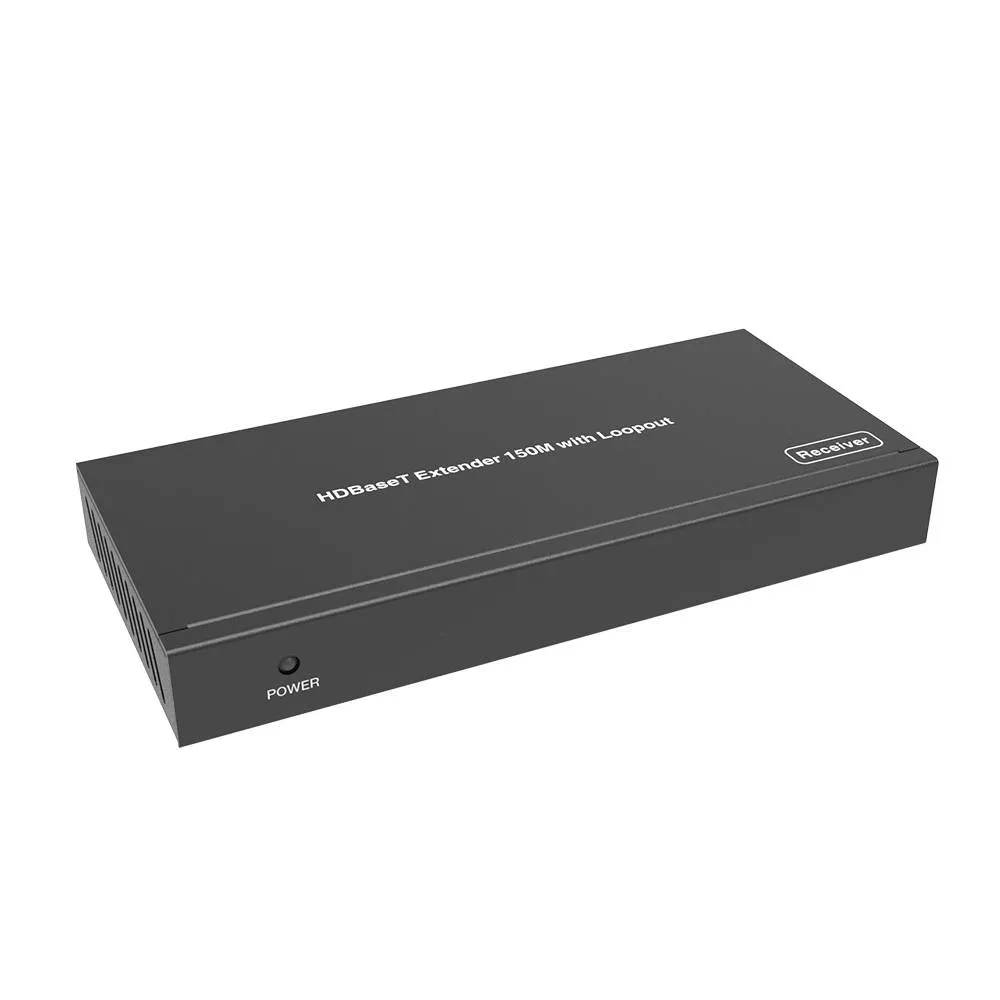

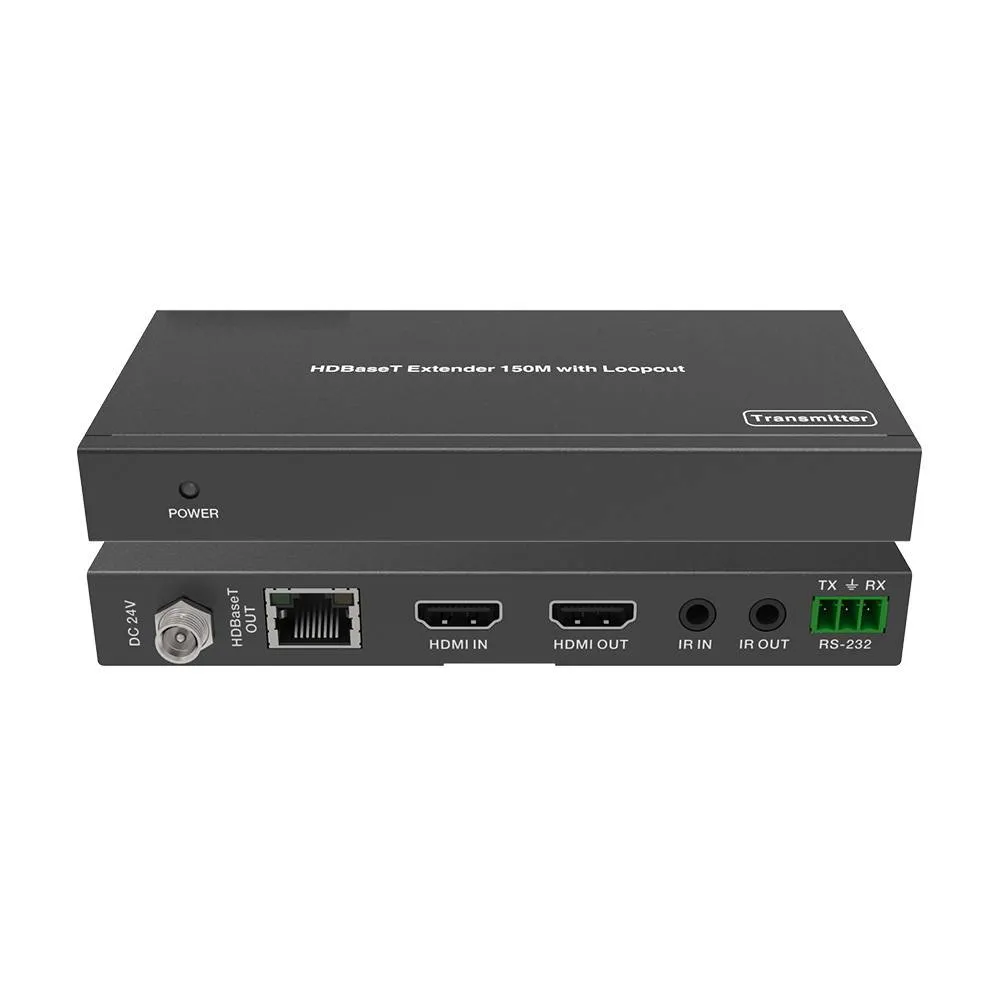

EXT-HB-150C HDMI Extender with Loopout can extend HDMI signal over 500 feet/150 meters to an HDMI compatible display via single Cat5e/6 cable. It also supports bi-directional Infrared control signal and RS-232 transmission together with HDMI signal, it can allow you to easily control your DVD player at TV side or control your TV at the DVD player side when using this extender.
Features:
HDMI 1.4, HDCP 1.4 and DVI compliant.
Video resolutions up to 1080p@60Hz (YUV4:4:4).
HDMI High Bit Rate(HBR) audio pass through.
150 meters transmission distance over CAT6 cable.
POC (Power over Cable), either TX or RX is powered by one 24V@1A power supply.
Bi-directional infrared control and RS232 signal transmission.
Specification:
| Technical | |
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 165MHz |
| Video Resolutions | up to1080P @60Hz YUV4:4:4、RGB4:4:4 |
| Color Depth | 8-bit |
| Color Space | RGB, YUV4:4:4, YUV 4:2:2 |
| HDMI Audio Formats | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby True HD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| ESD Protection | Human-body Model：±8kV (Air-gap discharge) ,
±4kV (Contact discharge) |
| Connections | |
|
Transmitter |
Inputs: 1x HDMI Type A [19-pin female]
1x IR INPUT [3.5mm Stereo Mini-jack] 1x RS232 [Phoenix jack] Outputs: 1x HD BaseT Out [RJ45] 1x HDMI Type A [19-pin female] 1x IR OUTPUT [3.5mm Stereo Mini-jack] |
|
Receiver |
Inputs: 1x HD BaseT In [RJ45]
1x IR INPUT [3.5mm Stereo Mini-jack] Outputs: 1x RS232 [Phoenix jack] 1x HDMI Type A [19-pin female] 1x IR OUTPUT [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 140mm(W)×65mm(D)×18mm(H) |
| Weight | 481g |
| Power Supply | Input: AC100~240V 50/60Hz
Output: DC24V/1A(US/EU standards，CE/FCC/UL certified) |
| Power Consumption | 6W (max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |

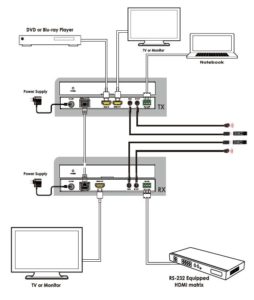

Diagram:
