Description
Introduction:

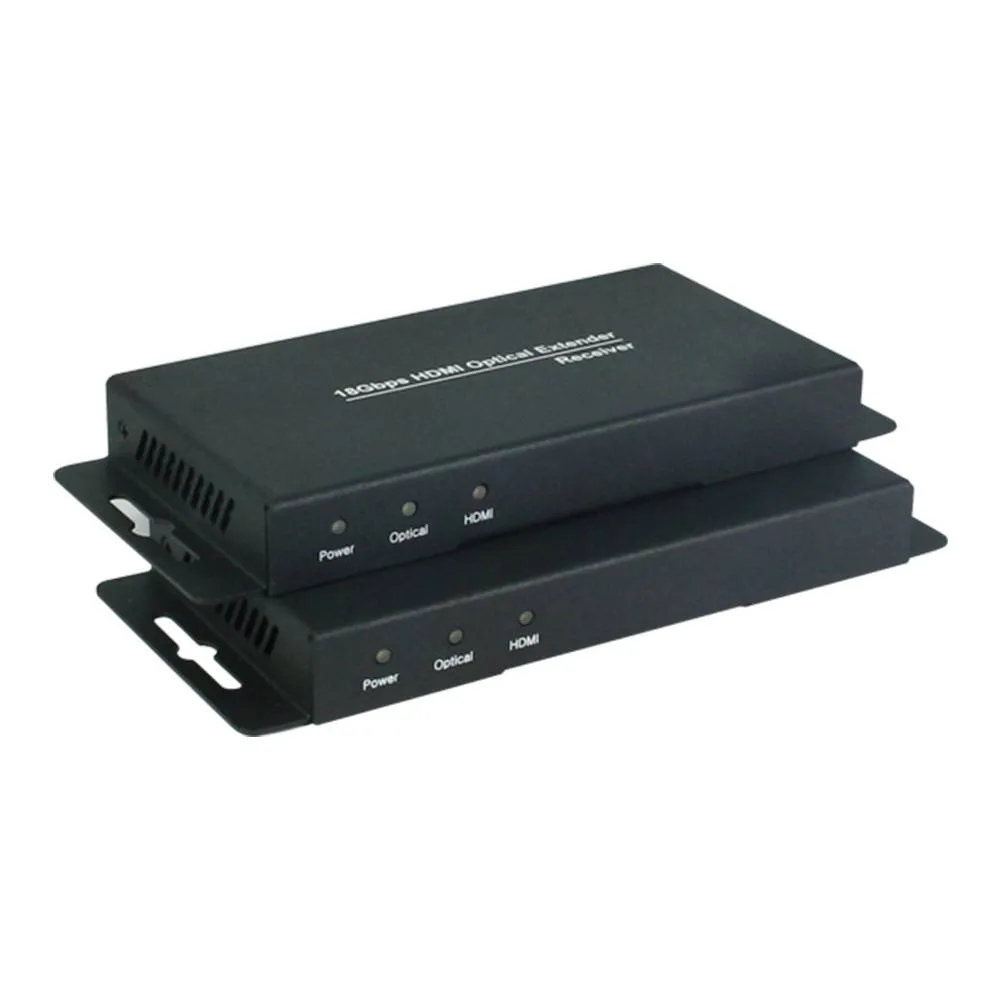

EXT-FB-1000 HDMI over Optical Fiber Extender can extend HDMI signal up to 4K Ultra HD over 3300 feet/1000 meters (Single-mode cable) or 1000 feet/300 meters (Multi-mode cable) to an HDMI compatible display. It also supports bi-directional infrared control and RS-232 signals transmission. It can allow you to easily control your DVD player at TV side or control your TV at the DVD player side when using this extender.
Specification:
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 1 Gbps |
| Video Resolutions | up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz |
| Color Space | RGB YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8-bit ,10-bit, 12-bit |
| HDMI nbsp;Audio Formats | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Operation Range | Up to 3300 feet/1000 meters over single-mode fiber cable Up to 1000 feet/300 meters over multi-mode fiber cable |
| IR Frequency | 2 KHz – 60KHz |
| RS- 32 Baud Rate | 4 00-115200bps |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connections | |

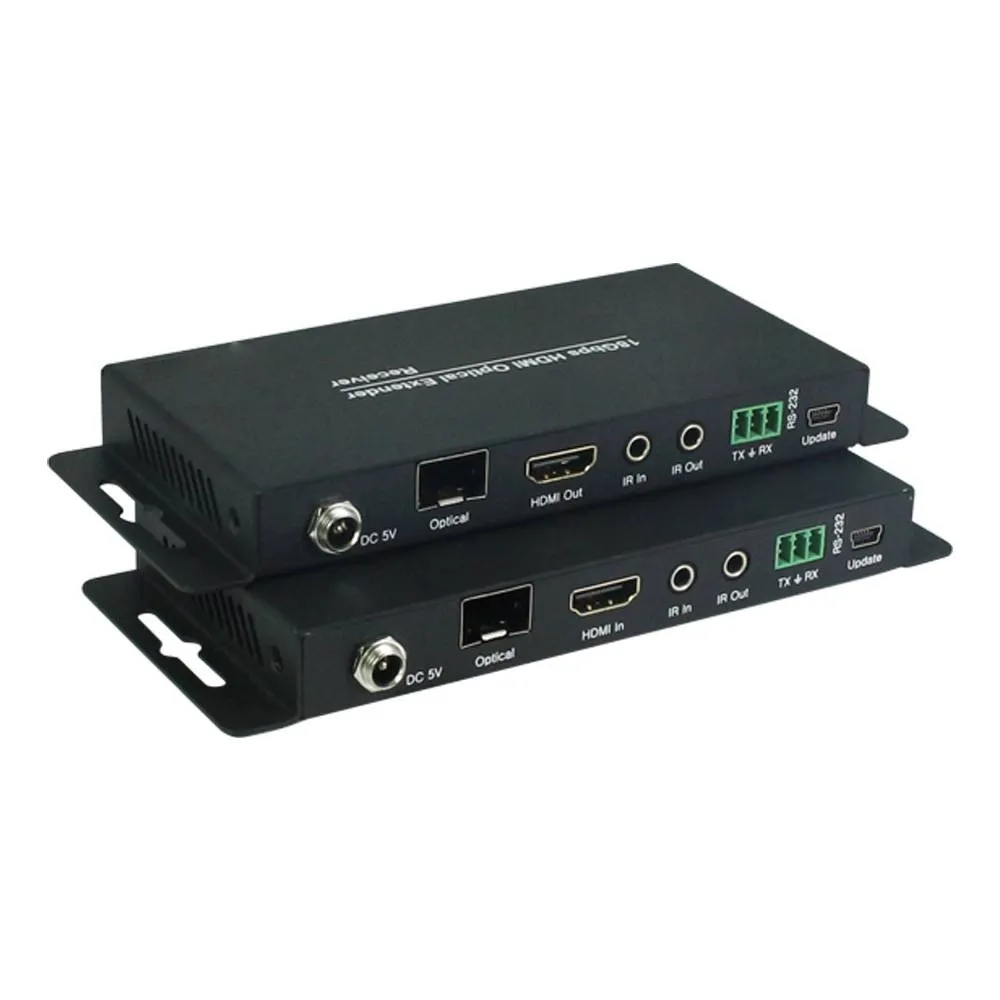

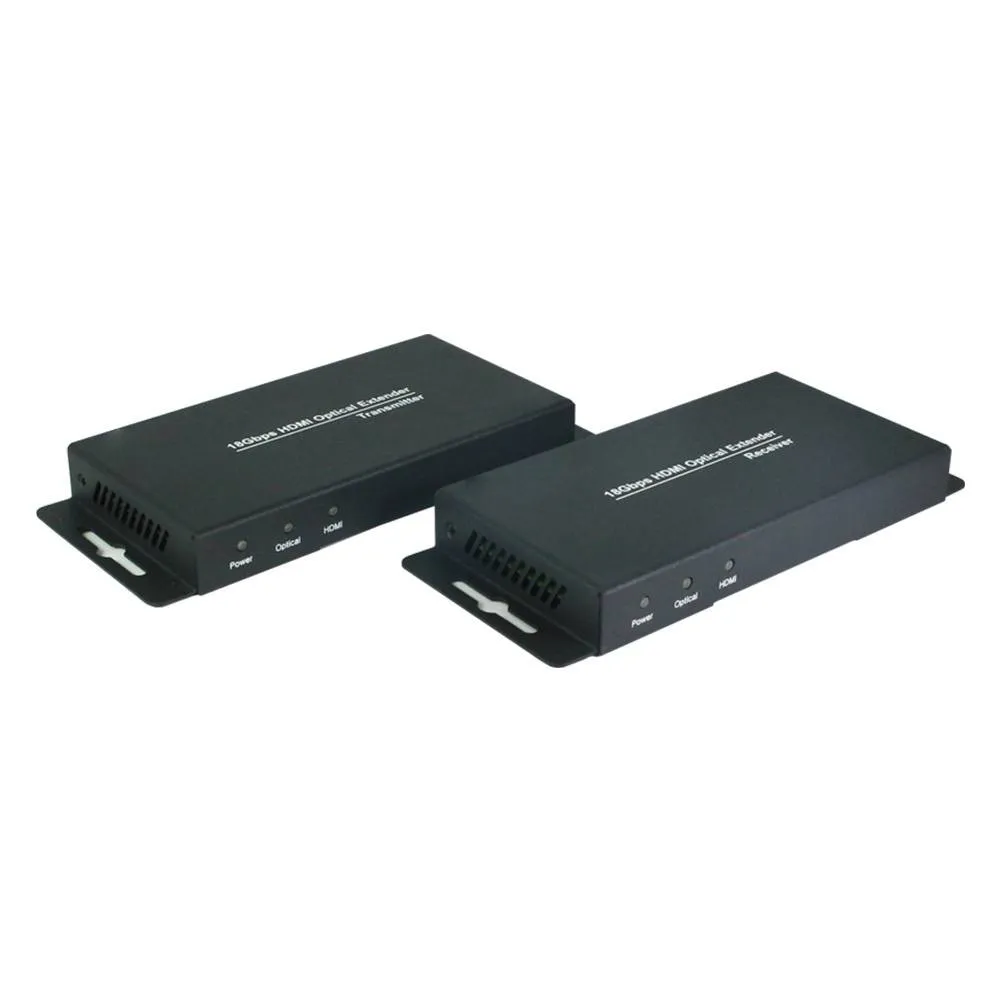

| Transmitter | Inputs 1x HDMI Type A [19-pin female] 1x IR In [3.5mm Stereo Mini-jack] 1x RS-232 [3.81mm Phoenix connector] Outputs: 1x Optical Fiber Out [LC female] 1x IR Out [3.5mm Stereo Mini-jack] |
| Receiver | Inputs 1x Optical Fiber In [LC female] 1x IR In [3.5mm Stereo Mini-jack] Outputs: 1x HDMI Type A [19-pin female] 1x IR Out [3.5mm Stereo Mini-jack] 1x RS-232 [3.81mm Phoenix connector] |
| Mechanical | |
| Housing nbsp; | Metal Enclosure |
| Color | Black |
| Dimensions | 1 0mm [W] x 65mm [D] x 25.6mm [H] |
| Weight | TX 256g RX: 260g |
| Power Supply | Input AC100 – 240V 50/60Hz Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 3W (Max) |
| Operation Temperature | 3 – 104°F / 0 – 40°C |
| Storage temperature | – – 140°F / -20 – 60°C’ |
| Relative Humidity | 20 – 90% RH (no condensation) |
