Description
Introduction:

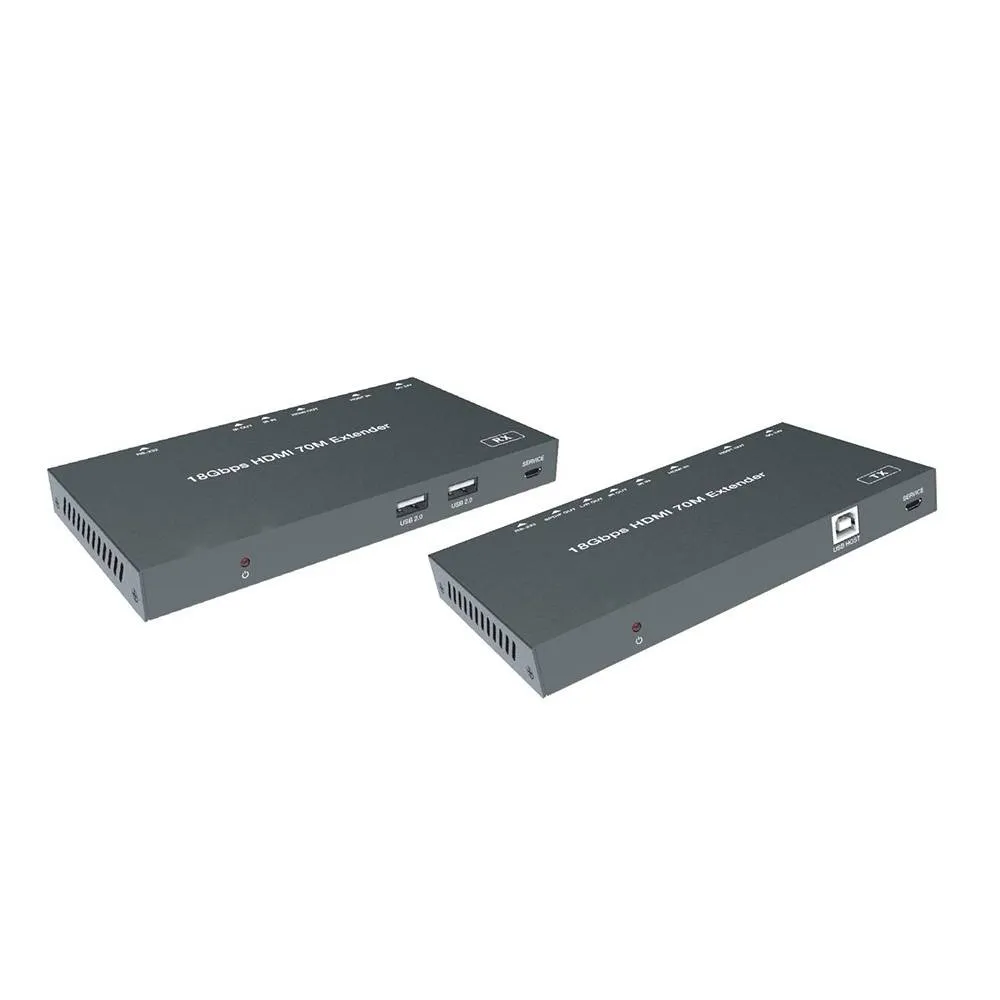

EXT-HB-70U 18Gbps 70M HDBaseT Extender can extend HDMI signal, bi-directional IR control signal, USB signal and RS-232 control signal to a distance up to 70m via a single CAT6/6a cable. It can realize long distance transmission with zero delay and no compression between signal source and display devices. Video resolution up to 4K2K@60Hz YUV 4:4:4. Transmitter supports de-embeded audio for digital optical and stereo analog audio output. The extender supports bi-directional IR signal pass-through function, which can control the signal source devices or display devices from the remote end. It also supports USB KVM and POC function.
The extender can be widely used in other fields such as video conference system, multimedia signal broadcasting, HDMI signal extension, etc.
Features:
HDMI2.0b, USB 2.0, HDCP 2.2 / 1.x and DVI 1.0 compliant
Support 18Gbps video bandwidth
Support video resolution up to 4k2k@60Hz YUV 4:4:4
High bit rate audio transmission via HDMI
The transmission distance can be extended up to 70m / 230ft at the resoution of 1080P@60Hz, or 40m / 164ft at 4K2K@60Hz 4:4:4 via a single CAT6/6a cable
Support USB signal, bi-directional IR and RS-232 control signal passthrough
Transmitter supports de-embeded audio for digital optical and analog audio output.
Support USB KVM function
Support POC (Power over Cable) function
Compact design for easy and flexible installation
Specification:
| Technical | ||||
| HDMI Compliance | HDMI 2.0b | |||
| HDCP Compliance | HDCP 2.2 / 1.x | |||
| Video Bandwidth | 18Gbps | |||
| Video Resolution | Up to 4K2K@60Hz YUV 4:4:4 | |||
| USB Compliance | USB 2.0 | |||
| USB Transfer Rate | Transmission rate up to 480mb/s, USB1.1 compliant | |||
| Transmission Distance | 70m via a single CAT6 cable | |||
| Color Space | RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0 | |||
|
Color Depth |
8-bit, 10-bit, 12-bit (1080P@60Hz) 8-bit (4K2K@60Hz YUV4:4:4)
8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0) |
|||
| HDR | HDR10, HDR10+, HLG | |||
|
Audio Format |
HDMI: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical: Dolby Digital, DTS 5.1, PCM 2CH Analog Signal: LPCM 2CH |
|||
| Connection | ||||
|
Transmitter |
Input: 1×HDMI IN [TypeA, 19-pin female] 1×IR IN [3.5mm Stereo Mini-jack] 1×Service [Micro-USB jack] 1×USB [USB-B, 4-pin female]
Output: 1×HDBaseT OUT [RJ45] 1×IR OUT [3.5mm Stereo Mini-jack] 1×L/R OUT [3.5mm Stereo Mini-jack] 1×SPDIF OUT 1×RS-232 [Phoenix jack] |
|||
|
Receiver |
Input: 1×HDBaseT IN [RJ45 with light] 1×IR IN [3.5mm Stereo Mini-jack] 1×Service [Micro-USB jack]
Output: 1×HDMI OUT [TypeA, 19-pin female] 1×RS-232 [Phoenix jack] 1×IR OUT [3.5mm Stereo Mini-jack] 2×USB [USB-A, 4-pin female] |
|||
| Mechanical | ||||
| Housing | Metal Enclosure | |||
| Color | Black | |||
| Dimensions | Transmitter / Receiver:165mm (W)×88.3mm (D)×20mm (H) | |||
| Power Supply | DC 24V/1A;
Support POC function |
|||
| Power Consumption | 13W (max) | |||
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F | |||
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F | |||
| Relative Humidity | 20~90% RH (non-condensing) | |||

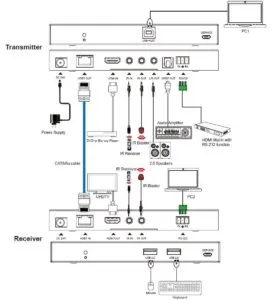

Diagram:
