1080P@60hz 100m 4K@60hz 90m HDMI HDR POC HDBaseT Extenders with ARC

Model:EXT-HB-100A

  • Transmitter:
    Inputs: 1x HDMI Type A
    Outputs: 1x HDBT OUT, 1x SPDIF OUT, 1×L/R OUT, 1×LAN,Control: 1xIR IN, 1xIR OUT, 1xRS-232, 1xSERVICE
  • Receiver:
    Inputs: 1x HDBT IN, 1x SPDIF IN
    Outputs: 1x HDMI Type A, 1x LAN
    Control: 1x IR IN, 1x IR OUT, 1x RS-232, 1x SERVICE

Fill out the form quickly, we’ll contact you with your quote.

Request a Quote

In Stock
SKU: EXT-HB-100A Categories: ,
hdmi-hdr-poc-hdbaset-extenders

Description

Introduction:

EXT-HB-100A 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232, bi-directional IR and internet signal, at the distance of up to 328ft /100 meters between transmitter and receiver via a single CAT6/6a cable and support resolution up to 4K2K@60Hz 4:4:4. The transmitter supports ARC function and local audio extract. In addition, the extender is equipped with bi-directional IR pass-through which allows for source and display control. It also supports PoC function.

The extender offers the most convenient solution for HDMI extension via a single CAT cable with long distance capability, and it’s the perfect solution for any application.



Features:

HDCP 2.2 / 1.x and DVI 1.0 compliant

Support 18Gbps video bandwidth

Video resolution is up to 4k2k@60Hz YUV 4:4:4, high bit rate audio transmission via HDMI

The maximum transmission distance is 328ft / 100 meters via a single CAT6/6a cable

Support PoC (Power over Cable) function

Support ARC (Audio Return Channel) function

Support bi-directional IR, RS-232 and LAN signal pass-through transmission

HDR, HDR10+, Dolby Vision and HLG function supported

Compact design for easy and flexible installation



Specification:

Technical
HDCP Compliance HDCP 2.2 / 1.x
Video Bandwidth 18Gbps




Video Resolution

4K2K 50/60Hz 4:4:4

4K2K 50/60Hz 4:2:2

4K2K 50/60Hz 4:2:0

4K2K 30Hz 4:4:4

1080p, 1080i, 720p, 720i, 480p, 480i

All PC resolutions including 1920 x 1200

Color Space RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0


Color Depth

8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr

4:2:2/4:2:0)

8-bit (4K60Hz 4:4:4 )



HDMI Audio Formats

LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
L/R Audio Formats PCM 2.0
SPDIF Audio Formats LPCM2.0, Dolby Digital, Dolby Digital Plus, DTS
ESD Protection Human body model — ±8kV (Air-gap discharge) &

±4kV (Contact discharge)

Connection








Transmitter

Inputs: 1x HDMI Type A [19-pin female] Outputs: 1x HDBT OUT [RJ45, 8-pin female]

1x SPDIF OUT [S/PDIF]

1×L/R OUT [3.5mm Stereo Mini-jack] 1×LAN [RG45]

Control:  1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack]

1x SERVICE [Mini-USB, Update port]







Receiver

Inputs: 1x HDBT IN [RJ45, 8-pin female] 1x SPDIF IN [S/PDIF]

Outputs: 1x HDMI Type A [19-pin female] 1x LAN [RG45]

Control:  1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack]

1x SERVICE [Mini-USB, Update port]

Mechanical
Housing Metal Enclosure
Color Black
Dimensions Transmitter / Receiver:

163mm [W] x 90mm [D] x 16mm [H]

Weight Transmitter: 170g, Receiver: 165g
Power Supply Input: AC 100 – 240V 50/60Hz

Output: DC 24V/1A (Locking connector)

Power Consumption 13 W
Operating Temperature 32 – 104°F / 0 – 40°C
Storage Temperature -4 – 140°F / -20 – 60°C
Relative Humidity 20 – 90% RH (no condensation)
Resolution Distance
4K2K 296ft /90M
1080P 328ft /100M
Resolution / Cable Length 4K60 –

Feet / Meters

4K30 –

Feet / Meters

1080P60 –

Feet / Meters

HDMI IN / OUT 16ft / 5M 32ft / 10M 50ft / 15M
The use of “Premium High Speed HDMI” cable is highly recommended.

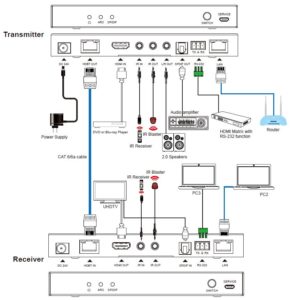

Diagram:
