Description
Introduction:

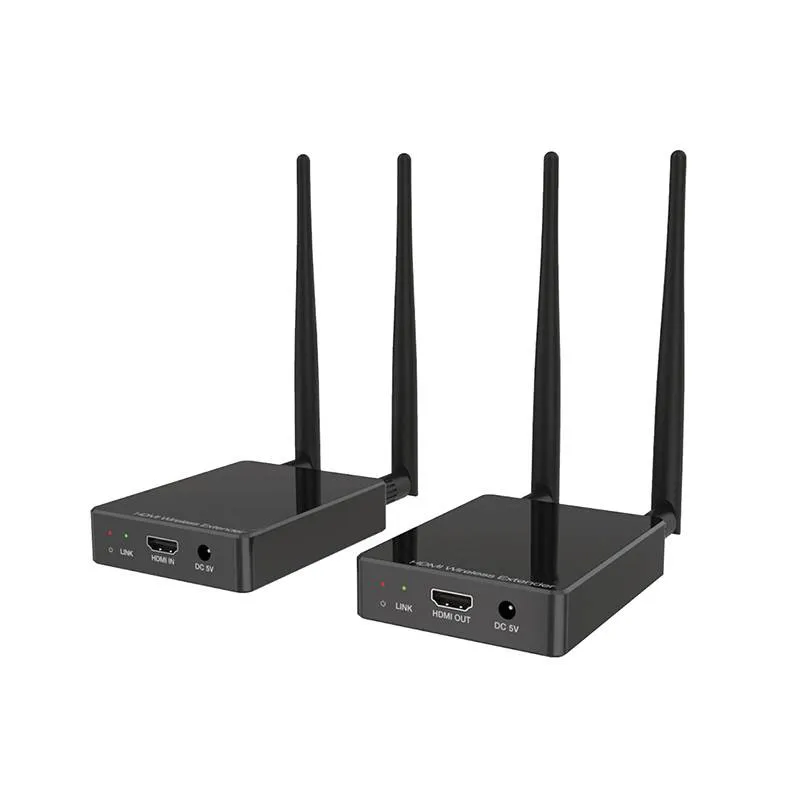

This product is based on the H.265 standard solution, which transmits a HD source signal to an HD display device. It wirelessly extends the distance between the encoder and decoder up to 100 meters (in an open environment without Wi-Fi interference). It supports one-way IR control and provides configurable high quality low bandwidth H.265Compressed video (resolution up to 1080P@60Hz) This wireless extender can easily realize the wireless transmission of HD audio and video signals in the same environment, thus eliminating the tedious work of burying wire in the early stage of wired transmission.
Features:
- Supports HDMI 1.3, HDCP 1.4 and DVI 1.0;
- Transmit a HD source signal wirelessly to a HD display device;
- It has one-way IR transmission function;
- Video resolution up to 1080P@60Hz;
- HDMI wireless transmission range up to 100 meters (open environment without Wi-Fi interference);
- Audio formats support LPCM 2.0CH 32KHz/ 44.1khz /48KHz;
- Using H.265 high performance codec technology;
- The end-to-end delay is less than 120 ms;
- Reasonable design, easy to install.
Specification:
| Specification | |
| HDMI compatible | HDMI 1.3 |
| HDCP compatible | HDCP 1.4 |
| Video bandwidth | 6.75Gbps |
| Video Resolution | 1080p, 1080i, 720p, 720i, 480p, 480i， 1920×1080 @60hz，1920×1200@60Hz(Max) |
| Color Space | RGB / YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0 |
| Color Depth | 8/10/12-bit (1080P60Hz) |
| HDMI audio format | LPCM 2.0CH 32KHz/44.1KHz/48KHz |
| Electrostatic Protection | ±8kV (kV) , ±4kV (Contact discharge) |
| Connect | |
| Encoder | Input：1×HDMI Type A [19-pin Receptacle] Output：1×IR OUT [3.5mm Stereo Mini-jack] 2×WiFi OUT [WiFi antenna] Control：1×SERVICE [Mini-USB, Scalable Link Interface] |
| Decoder | Input：1×IR IN [3.5mm Stereo Mini-jack] 2×WiFi IN [WiFi antenna] Output：1×HDMI Type A [19-pin Receptacle] Control：1×SERVICE [Mini-USB, Scalable Link Interface] |
| Fuselage | |
| Housing | Plastic Enclosure |
| Color | Black |
| Size | Encoder/Decoder：98mm [L]x 76mm [W] x 21mm [H] |
| Weight | Encoder/Decoder：100g |
| Power supplies | Input：AC 100~240V 50/60Hz Output：DC 5V/1A |
| Power Consumption | Encoder：2.25W，Decoder：1.8W |
| Operating temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative humidity | 20~90% RH (No condensation) |
| Resolution/line length | 1080P60Hz – Meter |
| HDMI IN / OUT | 15m |
| Advanced high-speed HDMI cable is recommended. | |
Diagram:
