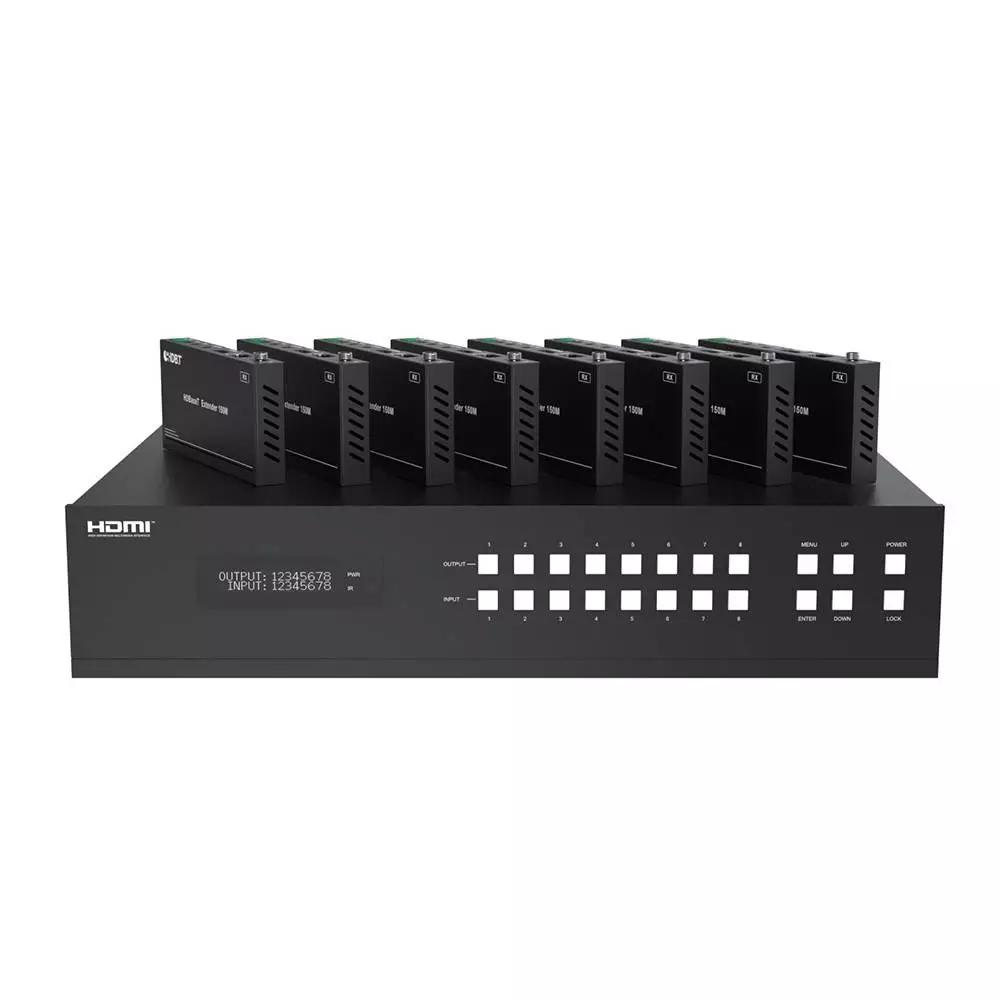

4K@60hz 4:4:4 8×8 HDBaseT 150m Matrices with Audio de-embedding and ARC

Model: MA-HB-HD0808L

  • Input:8 x HDMI Type A,Outputs: 8 x HDMI Type A,8 × HDBaseT port,4× Coaxial audio,8 × balanced analog audio
  • Controls: 9 x IR IN,5x IR OUT ,1 × TCP/IP,1 × RS-232
  • HDBaseT Receiver
    Input:1 x HDBT IN
    Outputs: 1 x HDMI Type A,1 x AUDIO OUT
    Controls: 1 x IR IN,1 x IR OUT,1 x RS-232,1 x SERVICE

Fill out the form quickly, we’ll contact you with your quote.

Request a Quote

In Stock
SKU: MA-HB-HD0808L Categories: ,
7-21 days Delivery
100% Original and quality
Extended Warranty

Description

Introduction:

MA-HB 18Gbps 8×8 HDBaseT(150M) Matrix can connect 8 HDMI sources to 16 displays. It features 8 HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output which runs simultaneously. HDBaseT output can extend video transmission distance up to 492ft / 150m via a single Cat 5e/6/7 cable and the resolution is up to 4K2K@60Hz 4:4:4. Audio de-embedded to analog and coaxial audio is supported. Each HDMI output supports 4K2K to 1080P downscaler independently.

It supports IR matrix. The IR signal is one-to-one control at the Matrix end, but the IR signal follows HDMI video channel at the HDBaseT Receiver end.

The product provides an intuitive set of front panel with OLED screen and supports control via front panel buttons, IR remote, RS-232, LAN, and Web GUI.



Features:

HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant

Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & HDBaseT ports

8 HDMI inputs, 8 HDMI & HDBaseT mirrored outputs

HDMI ports transmit 18Gbps lossless uncompressed video bandwidth

Support 18Gbps lossless compressed HDBaseT signal transmission

Support 4K->1080P Down Scaler for each output port

HDR, HDR10, HDR10+, Dolby Vision, HLG are supported

HDBaseT output can extend video transmission distance up to 492ft / 150m for 1080P or 394ft / 120m for 4K2K via a single Cat 5e/6/7 cable

HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)

Support IR matrix

Audio de-embedded is supported via analog and coax ports

Advanced EDID management and CEC control are supported

24V POC on all HDBaseT ports

1U rack mounted design with front panel OLED display

Control via front panel buttons, IR remote, RS-232, LAN and Web GUI



Specification:

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2 and HDCP 1.x
Video Bandwidth 18Gbps
Video Resolution Up to 4K2K@50/60Hz (4:4:4)
Color Space RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0


Color Depth

8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4)

8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0)

HDR HDR10, HDR10+, Dolby Vision, HLG


HDMI Audio Formats

LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master,

DTS HD-HRA, DTS-X

Coax Audio Formats PCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1
Analog Balanced Audio Formats PCM2.0CH
Vmax 2Vrms
SNR >90dB
THD+N Ratio <0.1%(V_max) 0.001%~0.01%(V_best)
Crosstalk >80dB
Frequency Response 20Hz~20kHz ±0.5dB
ESD Protection Human-body Model:

±8kV (Air-gap discharge) , ±4kV (Contact discharge)

Connection








Matrix

Inputs: 8 x HDMI Type A [19-pin female] Outputs: 8 x HDMI Type A [19-pin female]

8 × HDBaseT port [RJ45]

4 × Coaxial audio [3.5mm Stereo Mini-jack] 8 × balanced analog audio [5-pin Phoenix

connector]

Controls: 9 x IR IN [3.5mm Stereo Mini-jack]

5 x IR OUT [3.5mm Stereo Mini-jack] 1 × TCP/IP [RJ45]

1 × RS-232 [D-Sub 9]







HDBaseT Receiver

Input: 1 x HDBT IN [RJ45, 8-pin female] Outputs: 1 x HDMI Type A [19-pin female]

1 x AUDIO OUT [3.5mm Stereo Mini-jack] Controls: 1 x IR IN [3.5mm Stereo Mini-jack]

1 x IR OUT [3.5mm Stereo Mini-jack] 1 x RS-232 [3-pin Phoenix connector] 1 x SERVICE [Mini-USB, Update port]

Mechanical
Housing Metal Enclosure
Color Black
Dimensions Matrix: 440mm (W) × 374mm (D) × 88.6mm (H) Receiver: 140mm (W) x 65mm (W) x 18mm (W)
Weight Matrix: 6.54Kg, Receiver: 155g
Power Supply AC 100 – 240V 50/60Hz
Power Consumption 125W (Max)
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)
Resolution / Distance 4K60 – Feet / Meters
CAT5e/6/7 492ft / 150M
Resolution / Cable length 4K60 –

Feet / Meters

4K30 –

Feet / Meters

1080P60 –

Feet / Meters

HDMI IN / OUT 16ft / 5M 32ft / 10M 50ft / 15M
The use of “Premium High Speed HDMI” cable is highly recommended.

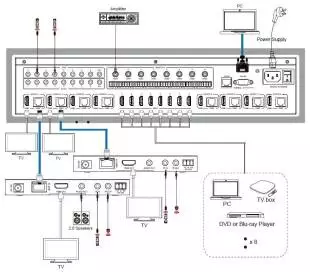

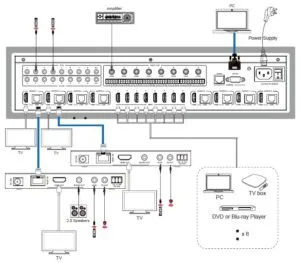

Diagram:



DOWNLOAD

4K@60hz 4:4:4 8×8 HDBaseT 150m Matrices with Audio de-embedding and ARC
