Description
Introduction:

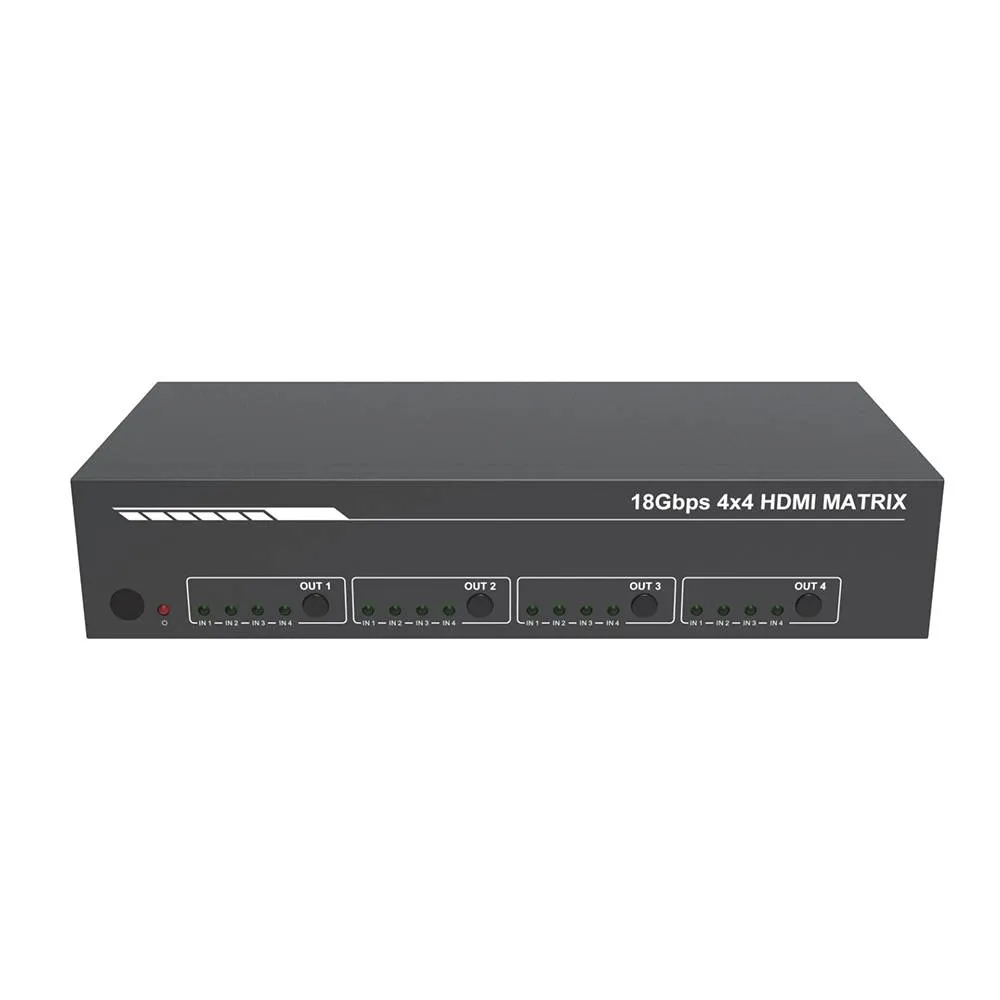

MA-HD HDMI Matrix Switcher can switch any of these four HDMI 2.0 sources to four HDMI 2.0 displays. Each input and output supports up to 4K60 444 resolution and HDCP 2.2. The outputs can be individually scaled for 1080p. De-embedded audio as analog L/R and coaxial is available for both outputs. The ARC function can return display device audio to coaxial port output only. Advanced EDID management is supported. With its 18Gbps bandwidth and the additional features with latest HDMI standards. This switcher can be controlled from the front panel, RS-232, IR remote, or TCP/IP.
Features:
HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
Four 18G HDMI 2.0 video inputs support up to 4K60 444 resolution
Four 18G HDMI 2.0 video outputs support up to 4K60 444 resolution
Four outputs can be individually scaled for 4K→1080p
De-embedded audio to analog L/R and Coaxial ports output
ARC audio return to the coaxial ports output only
Built-in Web GUI for TCP/IP control
Advanced EDID management supported
Four methods of control: Front panel, RS-232, IR remote and TCP/IP
Compact design for easy and flexible installation
Specification:
| Technical | |||
| HDMI Compliance | HDMI 2.0 | ||
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 | ||
| Video Bandwidth | 18 Gbps | ||
|
Video Resolution |
4K2K 50/60Hz 4:4:4
4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions including 1920 x 1200 |
||
| Output Scaling | 4K to 1080p | ||
| 3D Support | Yes | ||
| Color Space | RGB, YCbCr4:4:4,YCbCr4:2:2, YCbCr 4:2:0 | ||
| Color Depth | 8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)]
8-bit [4K60Hz (YCbCr 4:4:4)] |
||
|
HDMI Audio Formats |
PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master
Audio, DSD |
||
| Coaxial Audio Formats | PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1 | ||
| L/R Audio Formats | PCM2.0CH | ||
| HDR Support | HDR10, HDR10+. Dolby Vision, HLG | ||
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge),
±4kV (Contact discharge) |
||
| Connections | |||
| Input Ports | 4×HDMI Type A [19-pin female] | ||
|
Output Ports |
4×HDMI Type A [19-pin female]
4×L/R audio out [3.5mm Stereo Mini-jack] 4×COAX audio out [RCA] |
||
|
Control ports |
1x TCP/IP [RJ45]
1x RS-232[3-pin phoenix connector] 1x IR EXT [3.5mm Stereo Mini-jack] |
||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Color | Black | ||
| Dimensions | 220mm (W)×105mm (D)×44mm (H) | ||
| Weight | 792g | ||
| Power Supply | Input: AC100~240V 50/60Hz
Output: DC12V/2.5A (Locking connector) |
||
| Power Consumption | 10W (max), 1.56W (Standby) | ||
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F | ||
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F | ||
| Relative Humidity | 20~90% RH (non-condensing) | ||
| Resolution / Cable Length | 4K60 –
Feet / Meters |
4K30 –
Feet / Meters |
1080P60 –
Feet / Meters |
| HDMI IN / OUT | 10ft / 3M | 30ft / 10M | 42ft / 15M |
| The use of “Premium High Speed HDMI” cable is highly recommended. | |||

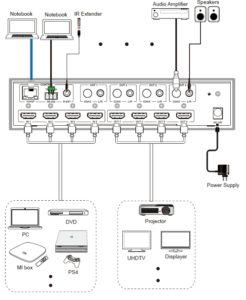

Diagram:
