Description
Introduction:

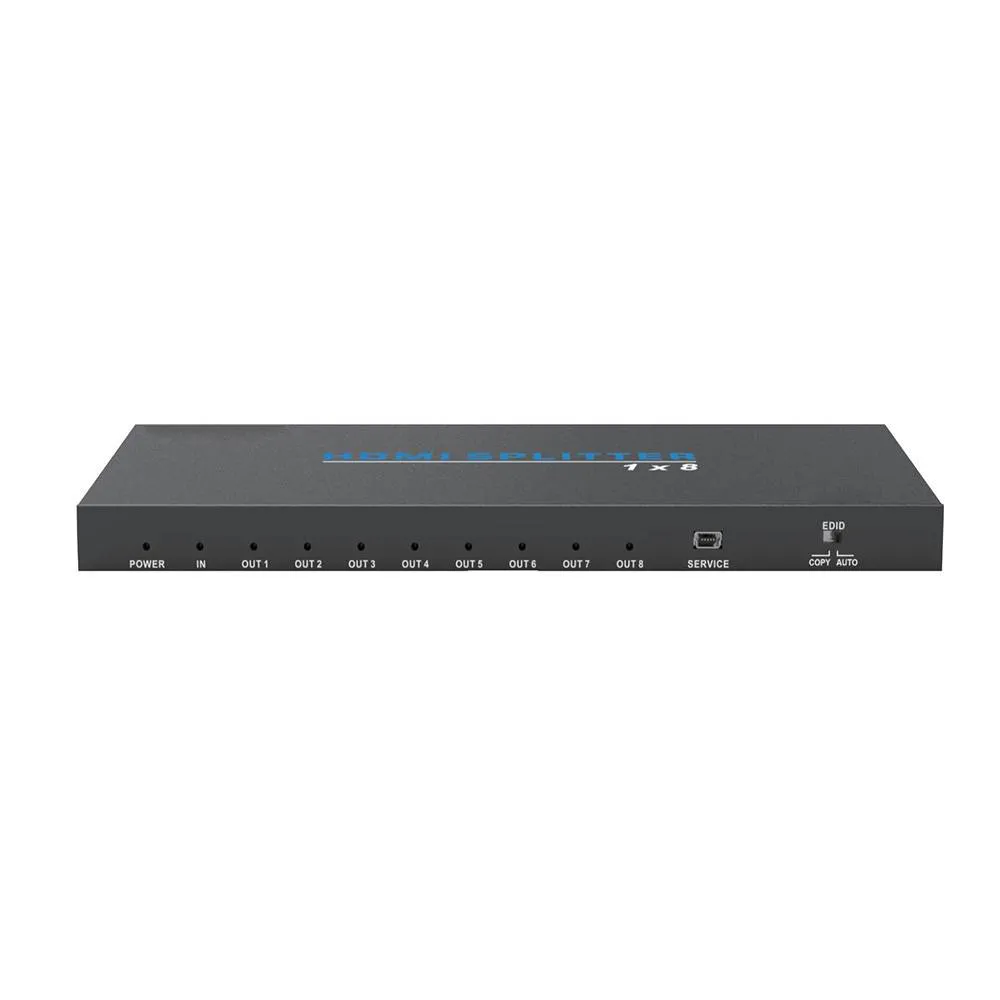

HS-HD-18 18Gbps 1×8 HDMI Splitter is an advanced solution for splitting single HDMI signal to 8 HDMI outputs synchronously. It supports up to 18Gbps bandwidth, HDMI 2.0b/HDCP 2.2 content up to 4K@60Hz 4:4:4. It can be set the COPY/AUTO EDID configuration. Supporting the latest features you can be assured of reliable and high quality HDMI distribution.
Features:
HDMI 2.0b, HDCP 2.2 compliant
Supports 18Gbps bandwidth
Supports resolution up to 4K@60Hz 4:4:4
Supports HDR function
Supports COPY/AUTO EDID control via dialling the dip switch
Compact design for easy and flexible installation
S pecification:
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 594MHz/18Gbps |
| Video Resolution | 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz |
| HDMI Audio Formats | PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos and DTS:X |
| ESD Protection | Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connections | |
| Input Ports | 1×HDMI Type A (19-pin female) 1×SERVICE (Micro USB, Update port) |
| Output Ports | 8×HDMI Type A (19-pin female） |
| Mechanical | |
| Housing | Metal Enclosure |
| Silkscreen Color | Black |
| Dimensions | 243mm (W) × 102mm (D) × 16mm (H) |
| Weight | 572g |
| Power Supply | Input: AC100 – 240V 50/60Hz, Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 6.15W |
| Operation Temperature | -10°C ~ 50°C / 14°F ~ 122°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |

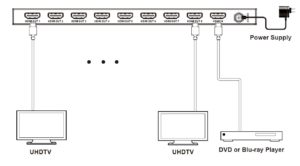

D iagram:
