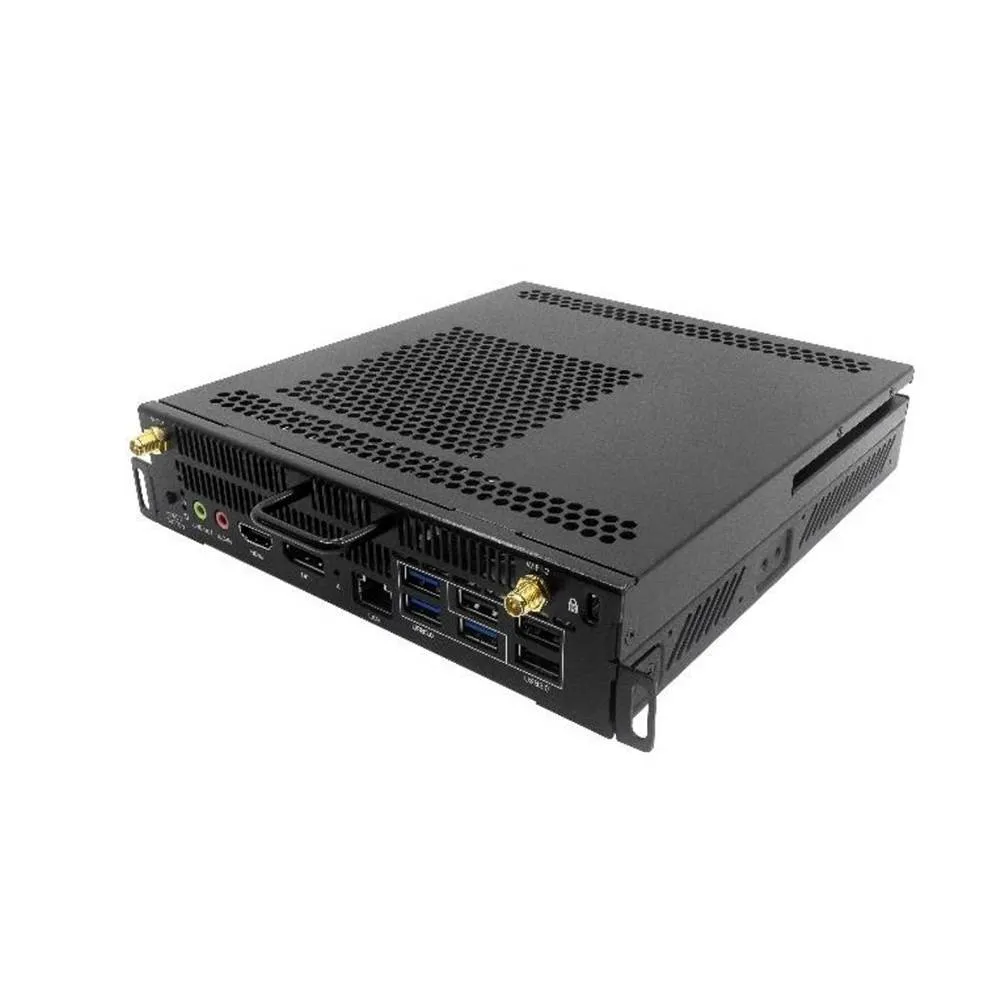

i7 OPS

Model: IFP-OPS-i7

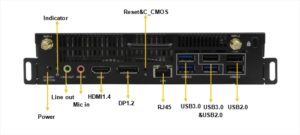

  • Front panel
    1 x HDMI1.4, 1 x DP1.2, 3 x USB 2.0, 3 x USB 3.0, 1 x RJ45, 1 x MIC IN,1 x Line out 2 x Wi-Fi/BT ANT,1 x Power button, 1 x Reset button, 1 x HDMI2.0
    1 x DP1.2, 3 x USB 2.0, 3 x USB 3.0, 1 x RJ45, 1 x MIC IN, 1 x Line out 2 x Wi-Fi/BT ANT, 1 x Power button, 1 x Reset button
  • Rear panel
    1 x 80pin : HDMI 2.0, 2*USB2.0, 1*USB3.0, TTL, AUDIO OUT, 1 x 2.5/5.5 DC IN JACK

Fill out the form quickly, we’ll contact you with your quote.

Request a Quote

In Stock
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0
SKU: IFP-OPS-i7 Categories: ,
7-21 days Delivery
100% Original and quality
Extended Warranty

Description

Introduction:

Intel OPS-C standard module

I7-10700, supports Intel 10th Gen processor

8G,2 x channel DDR4 Memory

256G,1 x M.2 2280/2242 SSD slot

9 x USB2.0/3.0/

M.2 2230 WIFI/BT slot

Displays：1 x HDMI ，1 x DP，1 x HDMI(80pin）,

12-19V DC

Specification:

Processor System CPU I7-10700,Intel® Comet Lake-S ， LGA1200， TDP 65W Intel® Rocket Lake-S ， LGA1200， TDP 65W
PCH H510
BIOS AMI UEFI BIOS






Graphics

 Chipset Intel UHD Graphics
VRAM 32GB (Max)
Multi displays Support Dual displays


Interface

 1 x HDMI1.4 , resolution 4096 x 2160 @ 30Hz 1 x DP1.2 , resolution 4096 x 2160 @ 60Hz

1 x 80pin Con. HDMI2.0，resolution 4096 x 2160 @

60Hz

 1 x HDMI2.0 , resolution 4096 x 2160 @ 60Hz 1 x DP1.2 , resolution 4096 x 2160 @ 60Hz

1 x 80pin Con. HDMI2.0，resolution 4096 x 2160 @

60Hz


Memory

 Type 8G,2 x SO-DIMM DDR4
Max 32GB


Ethernet

 Lan IC Realtek 8111H Gigabit Ethernet
Interface 10/100/1000Mbps
Connector 1 x RJ45


Wireless

 Type PCIe+USB Wi-Fi/BT module
Interface 1 x M.2 2230 for Wifi+BT module


Storage

 Type SSD
Interface 256G,1 x M.2 2280 for PCIE 4X/ SATA SSD






IO Interface

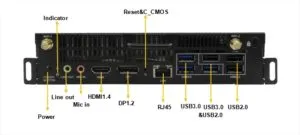

Front panel

 1 x HDMI1.4，4096 x 2160 @ 30Hz

1 x DP1.2，4096 x 2160 @ 60Hz

3 x USB 2.0 ，3 x USB 3.0

1 x RJ45

1 x MIC IN, 1 x Line out 2 x Wi-Fi/BT ANT

1 x Power button, 1 x Reset button

 1 x HDMI2.0，4096 x 2160 @ 60Hz

1 x DP1.2，4096 x 2160 @ 60Hz

3 x USB 2.0 ，3 x USB 3.0

1 x RJ45

1 x MIC IN, 1 x Line out 2 x Wi-Fi/BT ANT

1 x Power button, 1 x Reset button


Rear panel

 1 x 80pin : HDMI 2.0，2*USB2.0 ，1*USB3.0，TTL，AUDIO out

1 x 2.5/5.5 DC IN JACK




Software

 OS Supports WINDOWS 10 / LINUX
Watchdog Support
vPro/AMT N/A
TPM N/A
Power Power input 12 /19V DC IN, 2.5/5.5 DC Jack
Size 195 x 180 x 42 mm






Environment

 Operating

Temp.

 -5~45℃
Operating

Humidity

 10%~90% non-condensing
Storage Temp. -20~70℃
Operating

Humidity

 5%~95% non-condensing
