Description
Introduction:
High-end splicing display panel
Professional display solution, exquisite picture quality
Complete interfaces, 4K DP loop-through
Auto standby functions available for screen protection
Features:

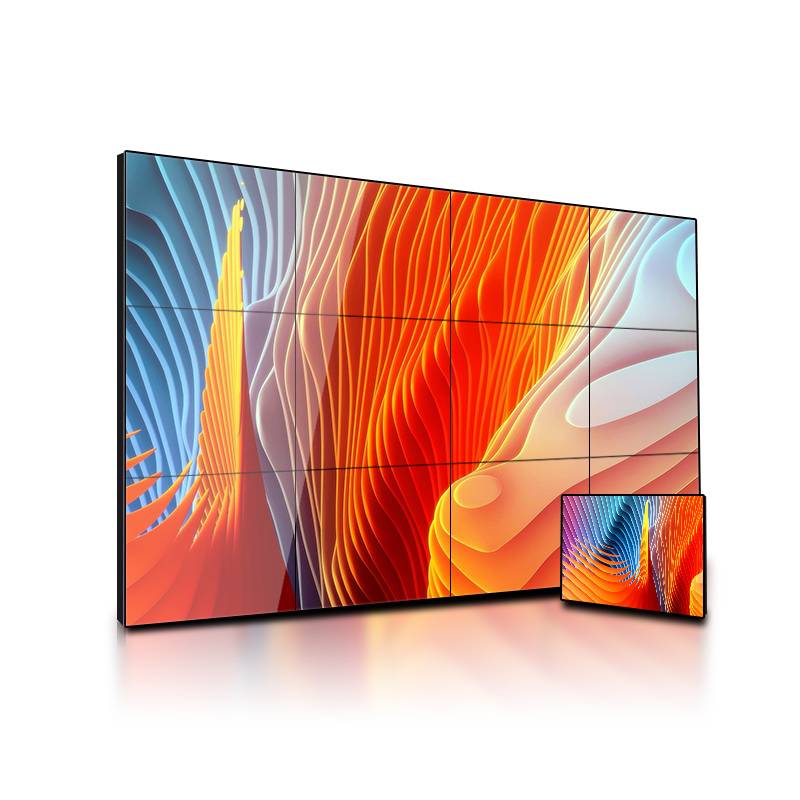

LG splicing display panel
The video wall uses original LG high-end splicing display panel which has such advantages as high brightness, wide viewing angle, chromaticity reaching up to 1.07b and stable display.
Complete interfaces, digital loop-through
Support 4K DP digital signal loop-through; provide HDMI input and DP input and output ports; suitable for various application scenarios.
Industrial Design
Industrial sheet metal design brings strong quality feeling. Humanized appearance design offers simple and practical experience.
Specification:
| Specification | CID-DP-49B35S | CID-DP-55B09S/H | CID-DP-55B18S/H | CID-DP-55B35S | |
| Display parameters | |||||
| Panel size | 49″ | 55″ | 55″ | 55″ | |
| Backlight category | LED | LED | LED | LED | |
| Bare dimension（mm） | 1077.58×113.65×607.8 | 1210.51×121.1×681.22 | 1211.4×121.1×682.2 | 1213.4×88.65×684.2 | |
| Packing dimension（mm） | 1245×218×783 | 1385×218×858 | 1385×218×858 | 1385×218×858 | |
| Power consumption | ≤145W | ≤225W / ≤225W | ≤180W / ≤225W | ≤200W | |
| Operating voltage | 100V-240VAC,50/60Hz | 100V-240VAC,50/60Hz | 100V-240VAC,50/60Hz | 100V-240VAC,50/60Hz | |
| Optimum resolution | 1920×1080@60Hz | 1920×1080@60Hz | 1920×1080@60Hz | 1920×1080@60Hz | |
| Viewing angel | 178º, 178º | 178º, 178º | 178º, 178º | 178º, 178º | |
| Brightness | 500cd/m² | 500cd/m² /700cd/m² | 500cd/m² /700cd/m² | 500cd/m² | |
| Contrast ratio | 1300:1 | 1200:1 | 1400:1 | 1300:1 | |
| Response time | 8ms | 8ms | 8ms | 8ms | |
| Color | 1.07B | 1.07B | 1.07B | 1.07B | |
| Joint | 3.5mm | 0.88mm | 1.8mm | 3.5mm | |
| Shell material | Sheet metal | Sheet metal | Sheet metal | Sheet metal | |
| Input CID-DP-XXBXXX | |||||
| HDMI | ×2 | ||||
| USB | ×1 | ||||
| DP | ×2 | ||||
| RS232(RJ45) | ×1 | ||||
| LAN | ×1 | ||||
| Output | |||||
| DP | ×1 | ||||
| RS232(RJ45) | ×1 | ||||
