Description
Introduction:

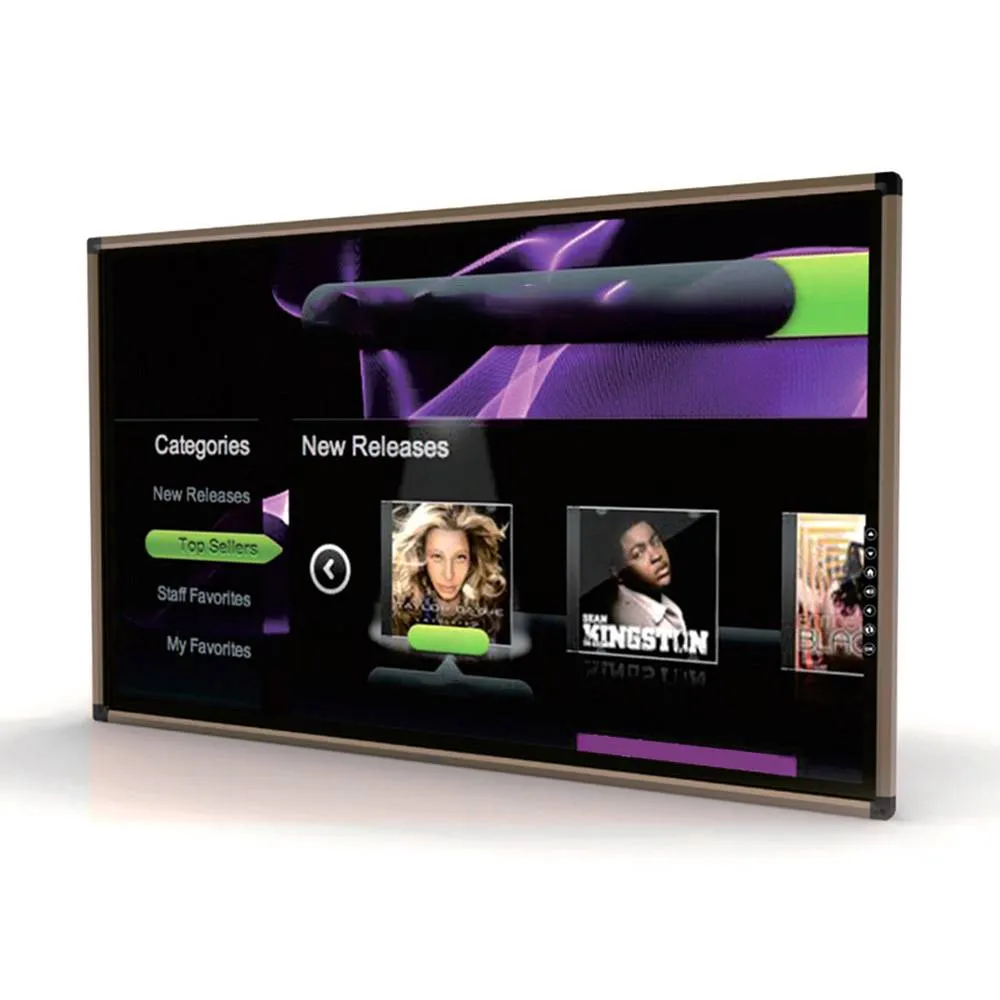

The 75-inch interactive touch display adopts industrial-grade LED full-array backlight panel, which is effective in energy saving and has a service life of up to 100,000 hours.
Built-in self-developed dual/multi-point infrared touch components make the touch more sensitive and accurate.
The power button and the remote control receiver are located in front, which realizes one-key energy saving function and convenient remote control operation. The 3.0cm ultra-narrow frame design makes the body more elegant.
Features:
- Touch Screen applications of large sizes, 55”,65”, 70”, 84”98”;
- Professional grade LCD displays with LED backlit with lifespan 100,000hr;
- Supporting infrared Dual touch/Multi-touch;
- Aluminum frame with narrow bezel 28mm & bezel colors customized available;
- Chemically strengthened, anti-glare, anti-smudge glass options available;
- Shortcut key on the face glass for convenient use;
- PC expansion slots, easy to input/output the audio video signal;
- With the smart power energy saving function, the stand-by power consumption can be 0.5W;
- Designed for 24/7 usage.
Specification:
| Model | CID-TSD-75 |
| Size (inch) | 75″ |
| Backlight | LED |
| Contrast Ratio | 1100:1 |
| Response time | 12ms |
| Pixel Pitch | 0.429mm |
| ower Consumption | 150W |
| Brightness (cd/㎡) | 450 |
| Resolution | 3840×2160 |
| Signal Input | HDMIx4,VGAx1, Videox1,YPbPr x1 |
| Color | 10bit – 1070M |
| Viewing Angle | 178°(CR≥10) |
| Aspect Ratio | 16:9 |
| Power Supply | 100-240VAC, 50/60 Hz |
| Control method | RS232/RJ45,IR |
