Description
Introduction:

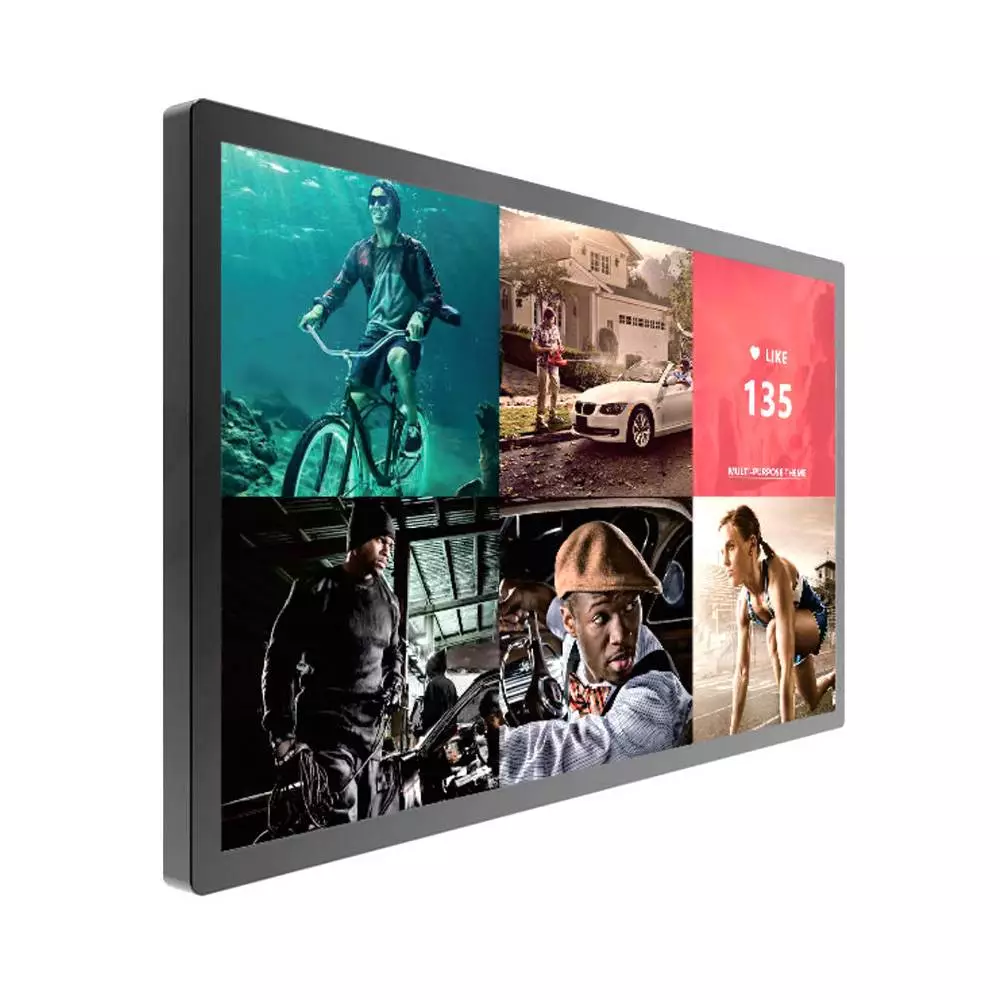

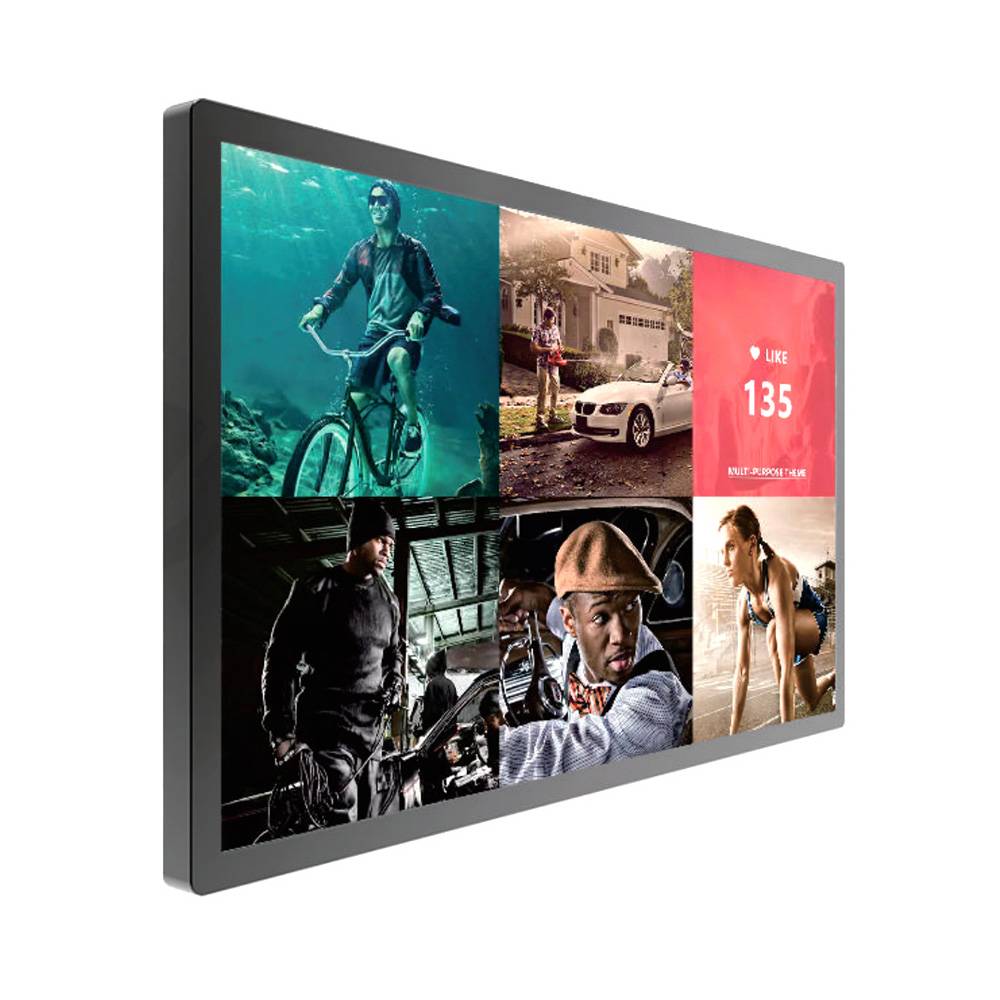

HD Series adopt industrial-grade panel, meets the IP55 dust-proof and water-proof level and can achieve 7*24 hours continuously work, which can be used in the harsh environment. HD Series can be installed in the waiting area in airports, bus stations and other public places. Screen at the top broadcasts television programs, screen at the bottom can play contents of he corresponding operations.
HD Series support HD video output, and have stand-alone and network version two functions; standalone update content through U disk, network version can be connected to the letter of the system established B / S or C / S architecture for content updates.
Features:
- Slimy beauty, rock solid durability, high brightness;
- Super silent of fanless design with stable performance, low power consumption;
- Easy installation, easy to maintain;
- RS232 and Ethernet PC control channels;
- All control commands and video contents are being transferred though IP, meet the focus-type of businesses;
- Various presentation formats available, displaying video, photo, flash, web content, PPT slides, and more;
- Designed for 24/7 usage.
Specification:
| Mode | HD 22 | HD 32 | HD 39 | HD 42/VD 42 | HD 43/VD 43 | HD 47/VD 47 | HD 50/VD 50 |
| Size (inch) | 21.5″ | 32″ | 39″ | 42″ | 43″ | 47″ | 50″ |
| Backlight | CCFL | CCFL | CCFL | LED | LED | LED | LED |
| Response time | 8ms | 6ms | 8ms | 8ms | 8ms | 8ms | 8ms |
| Power Consumption | 160W | 160W | 200W | 240W | 240W | 240W | 250W |
| Brightness (cd/㎡) | 450 1500-2500 |
450 1500-2500 |
500 1500-2500 |
450 1500-2500 |
500 1500-2500 |
450 1500-2500 |
450 1500-2500 |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 |
| Signal Input | DVI ,VGA | HDMI ,DVI ,VGA | DVI x2 ,VGA x1 , Video x1 , YPbPr x1 | ||||
| Color | 8bit – 16.7M | ||||||
| Viewing Angle | 178°(CR≥10) | ||||||
| Aspect Ratio | 16:9 | ||||||
| Power Supply | 100-240VAC, 50/60 Hz | ||||||
| Control method | RS232/RJ45,IR | ||||||
| Application | Indoor/Outdoor | ||||||
| Mode | HD 55/VD 55 | HD 65/VD 65 | HD 75/VD 75 | HD 84/VD 84 | HD 98/VD 98 |
| Size (inch) | 55″ | 65″ | 75″ | 84″ | 98″ |
| Backlight | LED | LED | LED | LED | LED |
| Response time | 12ms | 8ms | 12ms | 5ms | 5ms |
| Power Consumption | 250W | 430W | 160W | 500W | 500W |
| Brightness (cd/㎡) | 450 1500-2500 |
500 1500-2500 |
450 1500-2500 |
450 1500-2500 |
450 1500-2500 |
| Resolution | 1920×1080 | 1920×1080 | 3840×2160 | 3840×2160 | 3840×2160 |
| Signal Input | DVI x2 ,VGA x1 , Video x1 , YPbPr x1 |
DVI x1 ,HDMI x1 , VGA x1 , Video x1 , YPbPr x1 |
HDMI x4 ,VGA x1 , Video x1 , YPbPr x1 |
VGA x1 ,USB x2 ,HDMI(4K) x1 , HDMI(1080) x2 , Video x1 , YPbPr x1 |
|
| Color | 8bit – 16.7M | 10bit – 1070M | |||
| Viewing Angle | 178°(CR≥10) | ||||
| Aspect Ratio | 16:9 | ||||
| Power Supply | 100-240VAC, 50/60 Hz | ||||
| Control method | RS232/RJ45,IR | ||||
| Application | Indoor/Outdoor | ||||
