Description
Introduction:

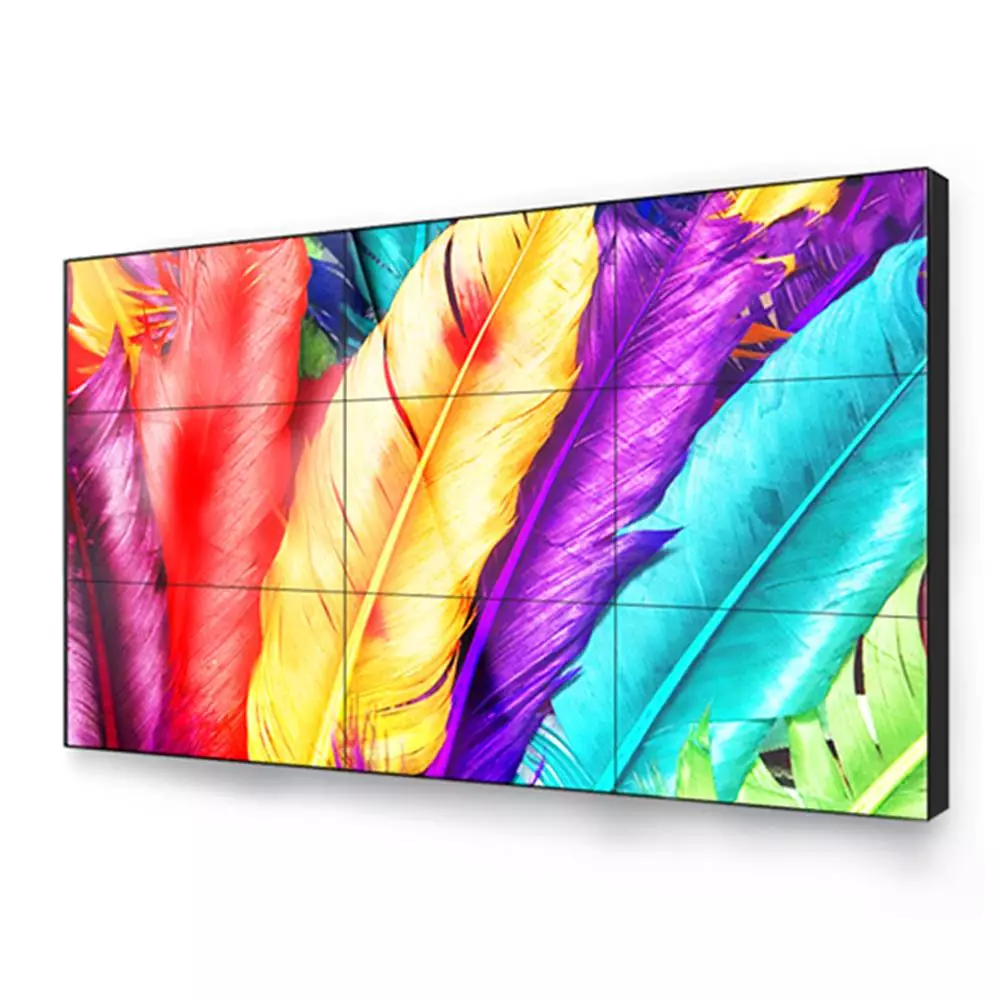

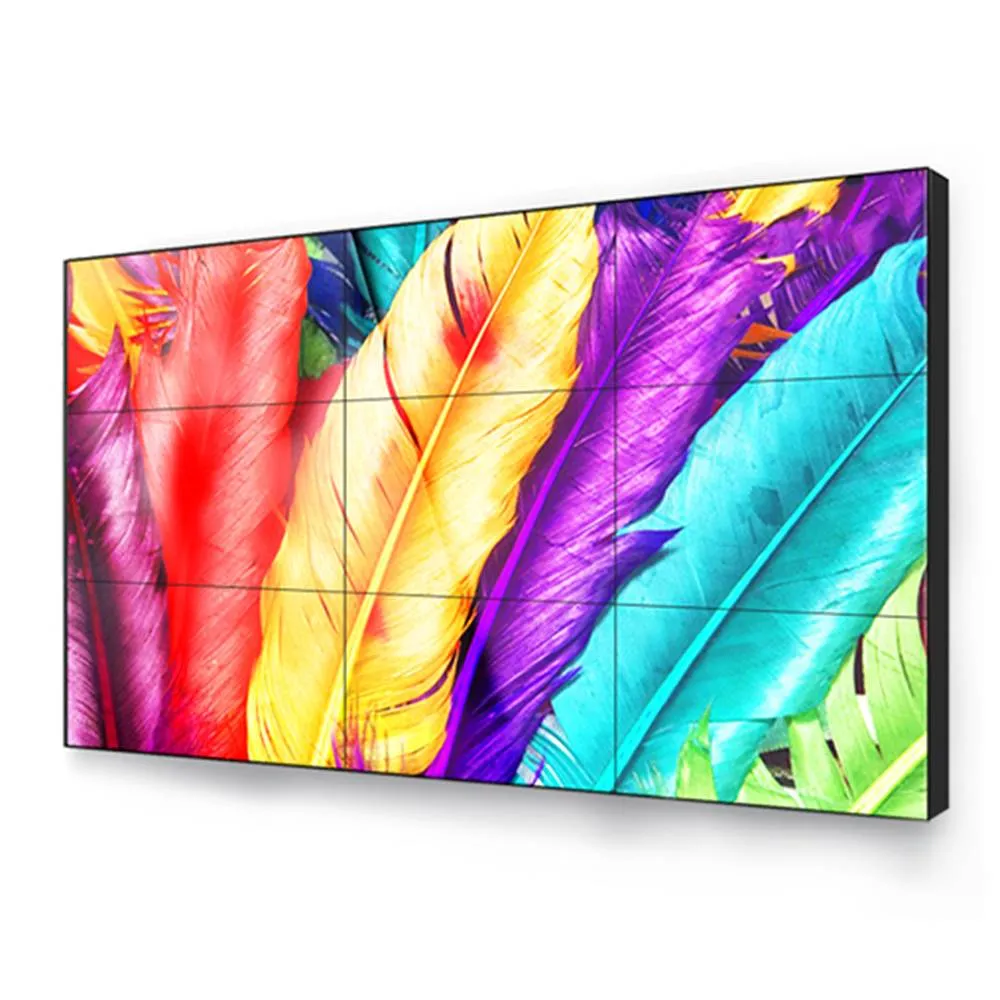

High-end splicing display panel
Professional display solution, exquisite picture quality
HDMI/DVI/VGA Complete interfaces
Auto standby functions available for screen protection
Features:
LG splicing display panel
The video wall uses original LG high-end splicing display panel which has such advantages as high brightness, wide viewing angle, chromaticity reaching up to 1.07b and stable display.
User-friendly menus
User can select the color temperature mode and adjust display parameters such as brightness, contrast and saturation according to the environment, so as to optimize the picture quality.
Industrial Design
Industrial sheet metal design brings strong quality feeling. Humanized appearance design offers simple and practical experience.
Specification:
| Specification | CID-HD-49B35S | CID-HD-55B09S/H | CID-HD-55B18S/H | CID-HD-55B35S | |
| Display parameters | |||||
| Panel size | 49″ | 55″ | 55″ | 55″ | |
| Backlight category | LED | LED | LED | LED | |
| Bare dimension（mm） | 1077.58×113.65×607.8 | 1210.51×121.1×681.22 | 1211.4×121.1×682.2 | 1213.4×88.65×684.2 | |
| Packing dimension（mm） | 1245×218×783 | 1385×218×858 | 1385×218×858 | 1385×218×858 | |
| Power consumption | ≤145W | ≤225W / ≤225W | ≤180W / ≤225W | ≤200W | |
| Operating voltage | 100V-240VAC,50/60Hz | 100V-240VAC,50/60Hz | 100V-240VAC,50/60Hz | 100V-240VAC,50/60Hz | |
| Optimum resolution | 1920×1080@60Hz | 1920×1080@60Hz | 1920×1080@60Hz | 1920×1080@60Hz | |
| Viewing angel | 178º, 178º | 178º, 178º | 178º, 178º | 178º, 178º | |
| Brightness | 500cd/m² | 500cd/m² /700cd/m² | 500cd/m² /700cd/m² | 500cd/m² | |
| Contrast ratio | 1300:1 | 1200:1 | 1400:1 | 1300:1 | |
| Response time | 8ms | 8ms | 8ms | 8ms | |
| Color | 1.07B | 1.07B | 1.07B | 1.07B | |
| Joint | 3.5mm | 0.88mm | 1.8mm | 3.5mm | |
| Shell material | Sheet metal | Sheet metal | Sheet metal | Sheet metal | |
| Input CID-HD-XXBXXX | |||||
| HDMI | ×1 | ||||
| DVI | ×1 | ||||
| VGA | ×1 | ||||
| AV(BNC) | ×1 | ||||
| RS232(RJ45) | ×1 | ||||
| Output | |||||
| RS232(RJ45) | ×1 | ||||
