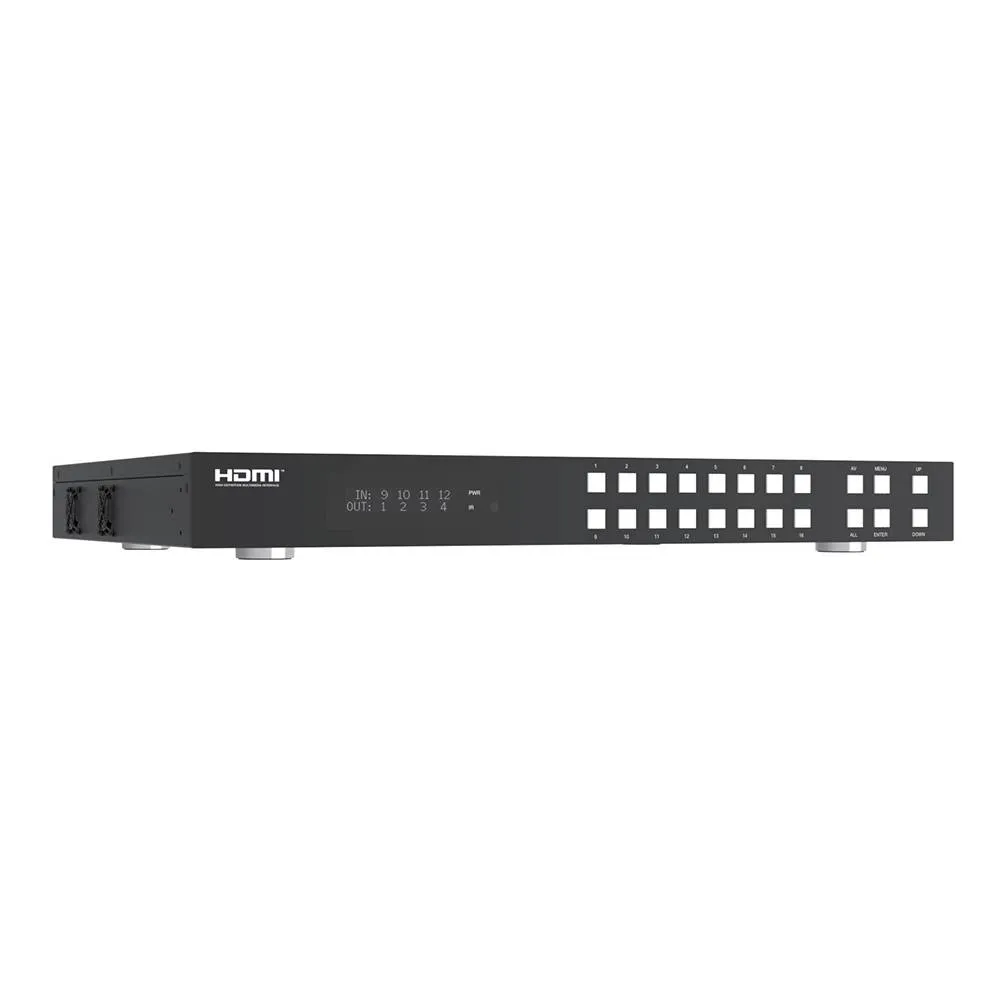

4K@60hz 4:4:4 HDMI HDR Matrices with Audio de-embedding

Model: MA-HD-HD0808AD

  • Input Ports:16×HDMI Type A
  • Output Ports:16×HDMI Type A 、16×Coax Audio
  • Control Ports:1×TCP/IP 、1×RS-232

Fill out the form quickly, we’ll contact you with your quote.

Request a Quote

In Stock
SKU: CL-3343 Categories: ,
7-21 days Delivery
100% Original and quality
Extended Warranty

Description

Introduction:

MA-HD HDMI Matrix supports the transmission of video (up to 4K2K@60Hz YUV 4:4:4) and multi-channel high resolution digital audio from 8 HDMI sources to 8 HDMI displays. Audio de-embedded to analog and coaxial audio is supported from 8 HDMI output ports. While HDMI output ARC function is enabled, the ARC audio from HDMI display devices will be extracted to coaxial audio output. Each HDMI output of this 8×8 HDMI Matrix supports 4K2K to 1080P downscaler independently. Control is via front panel buttons, IR remote, RS-232, LAN and Web GUI.



Features:

HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant

Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports

Support 18Gbps video bandwidth

Dolby Vision, HDR10+ and HLG are supported.

Support 4K->1080P Down Scaler for each output port

HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)

Audio de-embedded is supported via analog and coax ports

ARC, CEC and smart EDID management are supported

1U rack mounted design with front panel OLED display

Control via front panel buttons, IR remote, RS-232, LAN and Web GUI



Specification:

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2 and HDCP 1.4
Video Bandwidth 18Gbps
Video Resolution Up to 4K2K@50/60Hz (4:4:4)
Color Space RGB, YCbCr 4:4:4/4:2:2/4:2:0
Color Depth 8-bit, 10-bit, 12-bit
HDMI Audio Formats (Pass-through) LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Coax Audio Formats LPCM 2.0, Dolby Digital / Plus, DTS 5.1
L/R Audio Formats PCM2.0
HDR formats HDR10,HDR10+,Dolby Vision, HLG
ESD Protection Human-body Model:

±8kV (Air-gap discharge) , ±4kV (Contact discharge)

Connection
Input Ports 8×HDMI Type A [19-pin female] 1×IR EXT [3.5mm Stereo Mini-jack]


Output Ports

8×HDMI Type A [19-pin female] 8×Coax Audio (RCA)

8×L/R Audio [3.5mm Stereo Mini-jack]

Control Ports 1×TCP/IP [RJ45]

1×RS-232 [D-Sub 9]

Mechanical
Housing Metal Enclosure
Color Black
Dimensions 440mm (W)×200mm (D)×44.5mm (H)
Weight 2.8kg
Power Supply Input: AC 100 – 240V 50/60Hz

Output: DC 12V/5A (US/EU standard, CE/FCC/ULcertified)

Power Consumption 43W
Operating Temperature -10°C ~ 45°C / 14°F ~ 113°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)
Resolution / Cable length 4K60 –

Feet / Meters

4K30 –

Feet / Meters

1080P60 –

Feet / Meters

HDMI IN / OUT 16ft / 5M 32ft / 10M 50ft / 15M
The use of “Premium High Speed HDMI” cable is highly recommended.

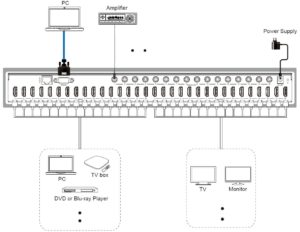

Diagram:
