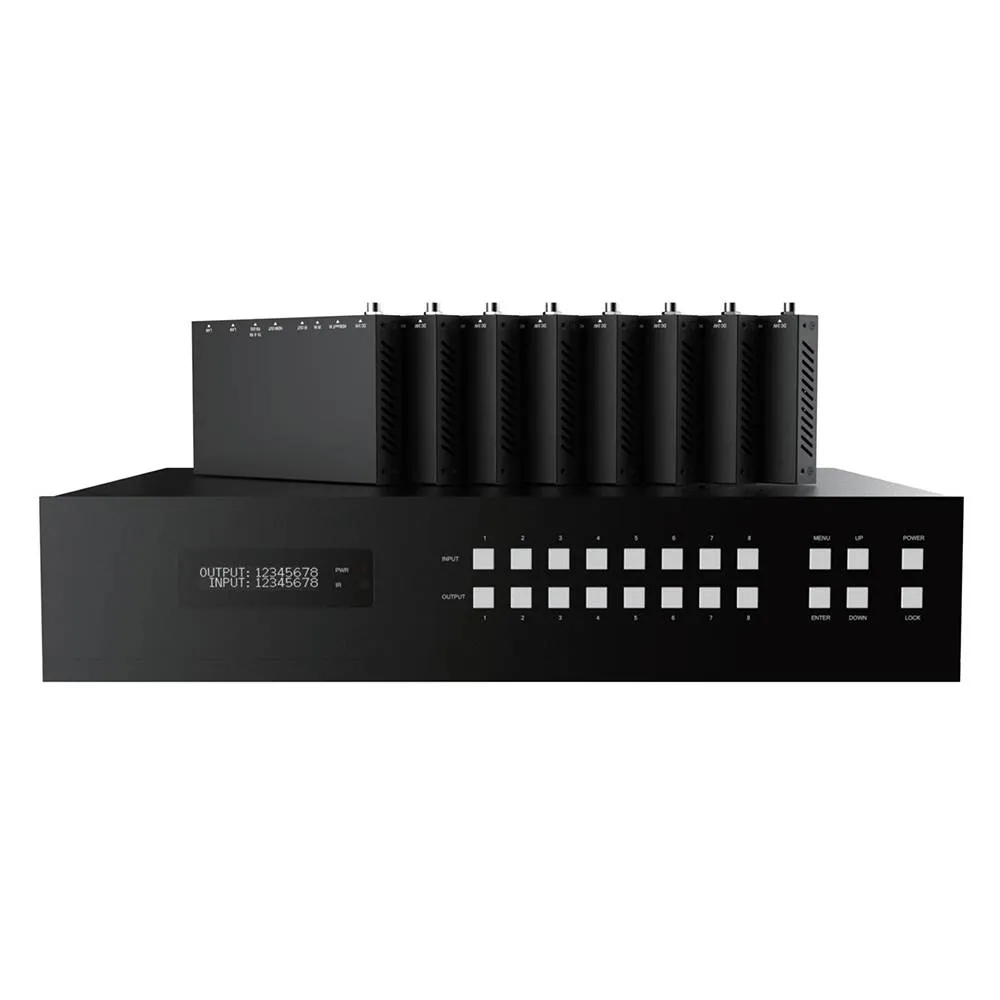

4K@60hz 4:4:4 HDR HDBaseT 100m Matrices with Audio de-embedding and ARC

Model: MA-HB-HD0808S

  • Input:8×INPUT,10×IR INPUT,2×Stereo Audio,1×SPDIF,1×SPDIF
  • Output:8×HDMI OUTPUT, 8×HDBaseT port,9×IR OUTPUT,8×RS-232,8×SPDIF,8×Stereo Audio,1×LAN
  • Control:1×TCP/IP,1×RS-232
  • HDBaseT Receiver
    Input Ports: 1×HDBaseT IN,1×IR IN
    Output Ports: 1×HDMI OUT,1×IR OUT
    Control Ports: 1×SERVICE,1×RS-232 ,2×LAN

Fill out the form quickly, we’ll contact you with your quote.

Request a Quote

In Stock
SKU: MA-HB-HD0808S Categories: ,
7-21 days Delivery
100% Original and quality
Extended Warranty

Description

Introduction:

MA-HB 18Gbps 8×8 HDBaseT(100M) Matrix can connect eight HDMI sources to sixteen displays. It features eight HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output which runs simultaneously. It supports video resolution up to 4K@60Hz 4:4:4. The HDBaseT output can extend video transmission distance up to 328ft / 100m via a single CAT 5e/6/7 cable.

It supports IR matrix and Audio matrix. With ARC function, it can return the audio signal from HDMI or HDBaseT display device to coaxial audio and analog audio output by Web GUI or ASCII code control. It can also extract the audio signal from HDMI source device to analog audio and coaxial audio output by Web GUI or ASCII code control. Moreover, the product supports bi-directional IR and RS-232 function. The IR signal is one-to-one control at the Matrix end, but the IR signal follows HDMI video channel at the HDBaseT Receiver end. The RS-232 port is a bi-directional channel and supports one-to-one transmission.

The product provides an intuitive set of front panel with OLED screen and supports control via front panel buttons, IR remote, RS-232, LAN and Web GUI.



Features:

HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant

8 HDMI inputs, 8 HDMI outputs and 8 HDBaseT mirrored outputs

Support video resolution up to 4K@60Hz 4:4:4

HDMI ports transmit 18Gbps lossless uncompressed video bandwidth

Support 18Gbps lossless compressed HDBaseT signal transmission

Support 4K->1080P Down Scaler

Dolby Vision, HDR10+, HLG are supported

HDBaseT output can extend video transmission distance up to 328ft / 100 meters via a single CAT 5e/6/7 cable.

HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)

Support ARC function on local HDMI and HDBaseT output ports

IR matrix and Audio matrix are supported

Support smart EDID management

24V POC on all HDBaseT ports

Control via front panel buttons, IR remote, RS-232, LAN, and Web GUI



Specification:

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2 and HDCP 1.4
Video Bandwidth 18Gbps
Video Resolution Up to 4K2K@50/60Hz (4:4:4)
Color Space RGB, YCbCr 4:4:4/4:2:2/4:2:0
Color Depth 12-bit (4K), 16-bit (1080P)
HDMI Audio Formats (Pass-through) PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master

Audio, DSD

Coax Audio Formats PCM 2.0, Dolby Digital / Plus, DTS,
L/R Audio Formats PCM2.0
HDR formats 4:4:4,4:2:2,4:2:0(10,12bit deep color)

HDR10,HDR10+,Dolby Vision, HLG

Infrared 20KHz ~ 60KHz
ESD Protection Human-body Model:

±8kV (Air-gap discharge) , ±4kV (Contact discharge)

Connection
Matrix




Input Ports

8×INPUT [HDMI Type A, 19-pin female] 10×IR INPUT [3.5mm Stereo Mini-jack] 2×Stereo Audio [3.5mm Stereo Mini-jack B] 1×SPDIF(OPTICAL)

1×SPDIF(COAX)





Output Ports

8×HDMI OUTPUT [HDMI Type A, 19-pin female] 8×HDBaseT port [RJ45]

9×IR OUTPUT [3.5mm Stereo Mini-jack] 8×RS-232 [3-pin Phoenix connector] 8×SPDIF(COAX)

8×Stereo Audio[3.5mm Stereo Mini-jack]

1×LAN [RJ45]

Control Ports 1×TCP/IP [RJ45]

1×RS-232 [D-Sub 9]

HDBaseT Receiver
Input Ports 1×HDBaseT IN [ RJ45]

1×IR IN [3.5mm Stereo Mini-jack]

Output Ports 1×HDMI OUT [HDMI Type A, 19-pin female] 1×IR OUT [3.5mm Stereo Mini-jack]


Control Ports

1×SERVICE [Micro USB, Update port] 1×RS-232 [Phoenix jack]

2×LAN [RJ45]

Mechanical
Housing Metal Enclosure
Color Black
Dimensions TX: 440mm (W)×362mm (D)×88mm (H) RX: 163mm (W)×90.3mm (D)×18mm (H)
Weight TX: 6.9 kg, RX: 392g
Power Supply AC 100 – 240V 50/60Hz
Power Consumption 128W (Max)
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)
Resolution / Distance 4K60 – Feet / Meters
CAT 5e/6/7 328ft / 100M
Resolution / Cable length 4K60 –

Feet / Meters

4K30 –

Feet / Meters

1080P60 –

Feet / Meters

HDMI IN / OUT 16ft / 5M 32ft / 10M 50ft / 15M
The use of “Premium High Speed HDMI” cable is highly recommended.

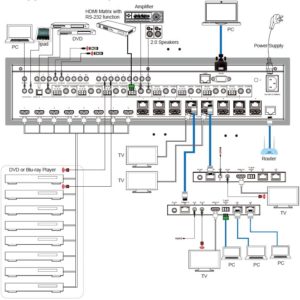

Diagram:
