4K@60hz 4:4:4 HDMI HDBaseT 150m Matrices with Audio de-embedding and ARC

Description

Introduction:

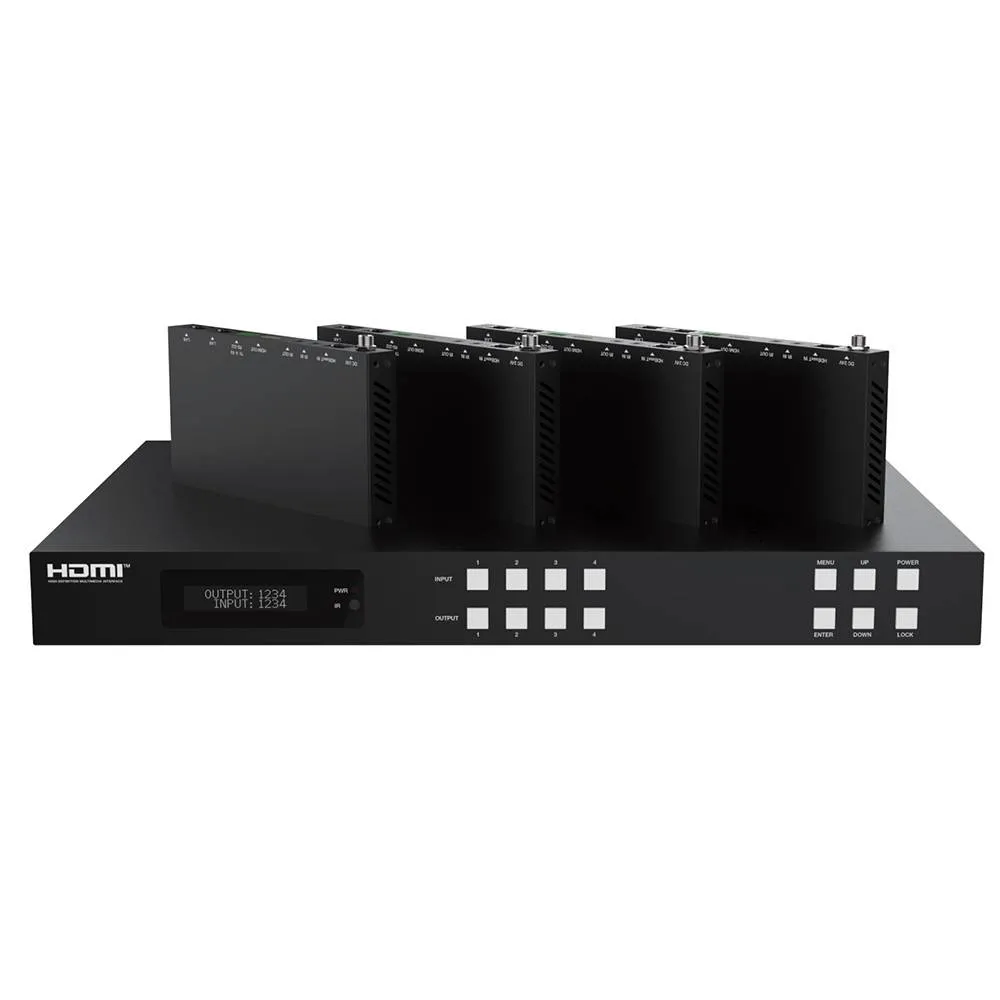

MA-HB 18Gbps 4×4 HDBaseT(150M) Matrix can connect four HDMI sources to eight displays. It features four HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output which runs simultaneously. HDBaseT output can extend video transmission distance up to 492ft / 150m via a single Cat 5e/6/7 cable and the resolution is up to 4K2K@60Hz 4:4:4. Audio de-embedded to analog and coaxial audio is supported. Each HDMI output supports 4K2K to 1080P downscaler independently.

It supports IR matrix. The IR signal is one-to-one control at the Matrix end, but the IR signal follows HDMI video channel at the HDBaseT Receiver end.

The product provides an intuitive set of front panel with OLED screen and supports control via front panel buttons, IR remote, RS-232, LAN, and Web GUI.



Features:

HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant

Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & HDBaseT ports

4 HDMI inputs, 4 HDMI & HDBaseT mirrored outputs

HDMI ports transmit 18Gbps lossless uncompressed video bandwidth

Support 18Gbps lossless compressed HDBaseT signal transmission

Support 4K->1080P Down Scaler for each output port

HDR, HDR10, HDR10+, Dolby Vision, HLG are supported

HDBaseT output can extend video transmission distance up to 492ft / 150m for 1080P or 394ft / 120m for 4K2K via a single Cat 5e/6/7 cable

HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)

Support IR matrix

Audio de-embedded is supported via analog and coax ports

Advanced EDID management and CEC control are supported

24V POC on all HDBaseT ports

1U rack mounted design with front panel OLED display

Control via front panel buttons, IR remote, RS-232, LAN and Web GUI



Specification:

	Technical
	HDMI Compliance		HDMI 2.0b
	HDCP Compliance		HDCP 2.2 and HDCP 1.x
	Video Bandwidth		18Gbps
	Video Resolution		Up to 4K2K@50/60Hz (4:4:4)
	Color Space		RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
	Color Depth		8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit，10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0）
	HDR		HDR10, HDR10+, Dolby Vision, HLG
	HDMI Audio Formats		LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
	Coax Audio Formats		PCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1
	Analog Balanced Audio Formats		PCM2.0CH
	Vmax		2Vrms
	SNR		＞90dB
	THD+N Ratio		＜0.1%（V_max） 0.001%~0.01%（V_best）
	Crosstalk		＞80dB
	Frequency Response		20Hz~20kHz ±0.5dB
	ESD Protection		Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)
Connection
Matrix		Inputs: 4 x HDMI Type A [19-pin female] Outputs: 4 x HDMI Type A [19-pin female] 4 × HDBaseT port [RJ45] 4 × Coaxial audio [3.5mm Stereo Mini-jack] 4 × balanced analog audio [5-pin Phoenix connector] Controls: 5 x IR IN [3.5mm Stereo Mini-jack] 5 x IR OUT [3.5mm Stereo Mini-jack] 1 × TCP/IP [RJ45] 1 × RS-232 [D-Sub 9]
HDBaseT Receiver		Input: 1 x HDBT IN [RJ45, 8-pin female] Outputs: 1 x HDMI Type A [19-pin female] 1 x AUDIO OUT [3.5mm Stereo Mini-jack] Controls: 1 x IR IN [3.5mm Stereo Mini-jack] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x RS-232 [3-pin Phoenix connector] 1 x SERVICE [Mini-USB, Update port]
Mechanical
Housing		Metal Enclosure
Color		Black
Dimensions		Matrix: 440mm (W) × 200mm (D) × 44.5mm (H) Receiver: 140mm (W) x 65mm (W) x 18mm (W)
Weight		Matrix: 3.1Kg, Receiver: 155g
Power Supply		AC 100 – 240V 50/60Hz
Power Consumption		60W (Max)
Operating Temperature		0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature		-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity		20~90% RH (non-condensing)
Resolution / Distance		4K60 – Feet / Meters
CAT5e/6/7		492ft / 150M
Resolution / Cable length		4K60 – Feet / Meters		4K30 – Feet / Meters	1080P60 – Feet / Meters
HDMI IN / OUT		16ft / 5M		32ft / 10M	50ft / 15M
The use of “Premium High Speed HDMI” cable is highly recommended.
