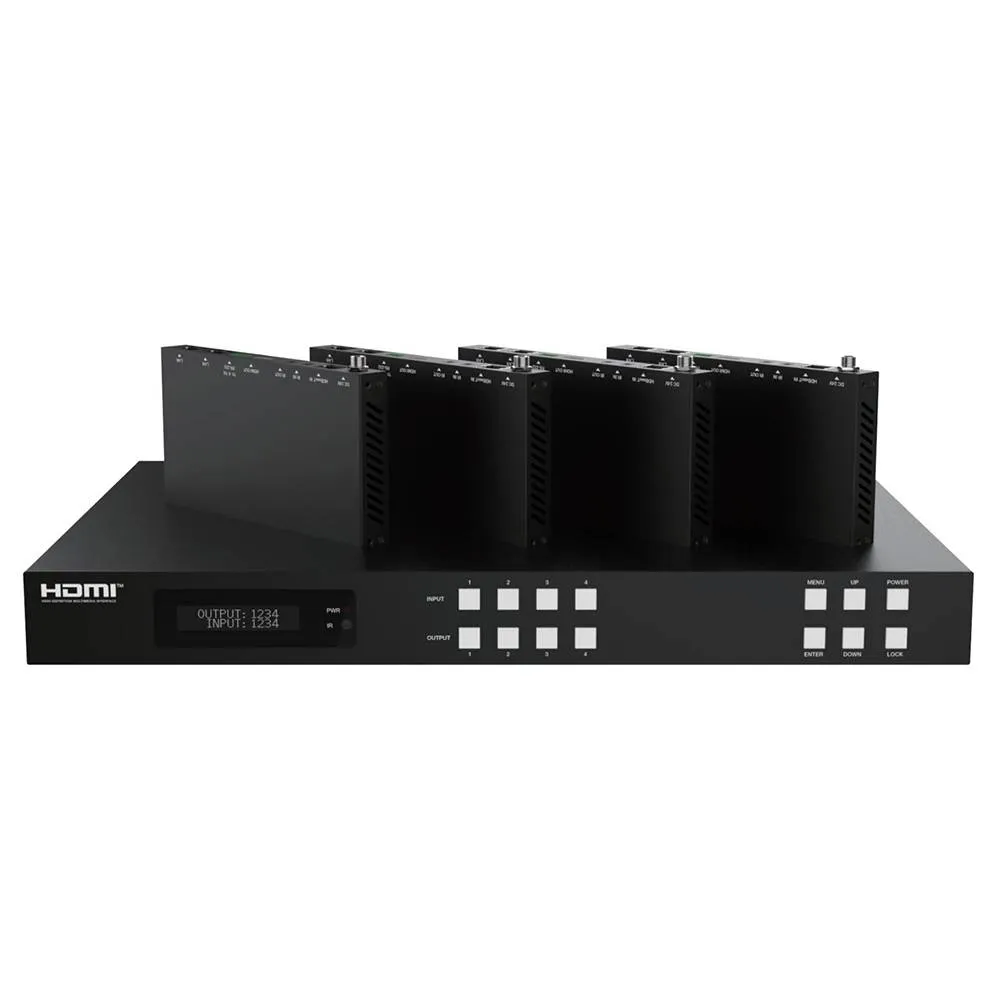

4K@60hz 4:4:4 HDR HDBaseT 100m Matrices with Audio de-embedding and ARC

Description

Introduction:

MA-HB 18Gbps 4×4 HDBaseT(100M) Matrix can connect four HDMI sources to eight displays. It features four HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output which runs simultaneously. HDBaseT output can extend video transmission distance up to 328ft / 100m via a single cat5e/6/7 cable and the resolution is up to 4K@60Hz 4:4:4.

It supports IR matrix and Audio matrix. With ARC function, it can return the audio signal from HDMI or HDBaseT display device to coaxial audio and analog audio output by Web GUI or ASCII code control. It can also extract the audio signal from HDMI source device to analog audio and coaxial audio output by Web GUI or ASCII code control. Moreover, the product supports bi-directional IR and RS-232 function. The IR signal is one-to-one control at the Matrix end, but the IR signal follows HDMI video channel at the HDBaseT Receiver end. The RS-232 port is a bi-directional channel and support one-to-one transmission.

The product provides an intuitive set of front panel with OLED screen and supports control via front panel buttons, IR remote, RS-232, LAN, and Web GUI.



Features:

HDCP 2.2 and HDCP 1.4 compliant

4 HDMI inputs, 4 HDMI & HDBaseT mirrored outputs

HDMI ports transmit 18Gbps lossless uncompressed video bandwidth

Support 18Gbps lossless compressed HDBaseT signal transmission

Support 4K->1080P Down Scaler

Dolby Vision, HDR10+, HLG are supported

HDBaseT output can extend video transmission distance up to 328ft / 100 meters via a single cat5e/6/7 cable and the resolution is up to 4K@60Hz 4:4:4.

HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)

Support ARC function on local HDMI and HDBaseT output ports

IR matrix and Audio matrix are supported

Support smart EDID management are supported

24V POC on all HDBaseT ports

Control via front panel buttons, IR remote, RS-232, LAN, and Web GUI

Specification:

	Technical
	HDCP Compliance		HDCP 2.2 and HDCP 1.4
	Video Bandwidth		18Gbps
	Video Resolution		Up to 4K2K@50/60Hz (4:4:4)
	Color Space		RGB, YCbCr 4:4:4/4:2:2/4:2:0
	Color Depth		12-bit (4K), 16-bit (1080P)
	HDMI Audio Formats (Pass-through)		PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
	Coax Audio Formats		PCM 2.0, Dolby Digital / Plus, DTS,
	L/R Audio Formats		PCM2.0
	HDR formats		4:4:4,4:2:2,4:2:0(10,12bit deep color) HDR10,HDR10+,Dolby Vision, HLG
	Infrared		20KHz ~ 60KHz
	ESD Protection		Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)
	Connection
	Matrix
	Input Ports		4×INPUT [HDMI Type A, 19-pin female] 6×IR INPUT [3.5mm Stereo Mini-jack] 2×Stereo Audio [3.5mm Stereo Mini-jack B] 1×SPDIF(OPTICAL) 1×SPDIF(COAX)
	Output Ports		4×HDMI OUTPUT [HDMI Type A, 19-pin female] 4×HDBaseT port [RJ45] 5×IR OUTPUT [3.5mm Stereo Mini-jack] 4×RS-232 [3-pin Phoenix connector] 4×SPDIF(COAX) 4×Stereo Audio[3.5mm Stereo Mini-jack] 1×LAN [RJ45]
	Control Ports		1×TCP/IP [RJ45] 1×RS-232 [D-Sub 9]
HDBaseT Receiver
Input Ports		1×HDBaseT IN [ RJ45] 1×IR IN [3.5mm Stereo Mini-jack]
Output Ports		1×HDMI OUT [HDMI Type A, 19-pin female] 1×IR OUT [3.5mm Stereo Mini-jack]
Control Ports		1×SERVICE [Micro USB, Update port] 1×RS-232 [Phoenix jack] 2×LAN [RJ45]
Mechanical
Housing		Metal Enclosure
Color		Black
Dimensions		TX: 440mm (W)×274mm (D)×45mm (H) RX: 163mm (W)×90.3mm (D)×18mm (H)
Weight		TX: 3977g, RX: 392g
Power Supply		AC 100 – 240V 50/60Hz
Power Consumption		70W (Max)
Operating Temperature		0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature		-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity		20~90% RH (non-condensing)
Resolution / Distance		4K60 – Feet / Meters
CAT5e/6/7		328ft / 100M
Resolution / Cable length		4K60 – Feet / Meters		4K30 – Feet / Meters	1080P60 – Feet / Meters
HDMI IN / OUT		16ft / 5M		32ft / 10M	50ft / 15M
The use of “Premium High Speed HDMI” cable is highly recommended.

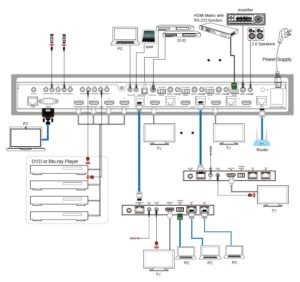

Diagram:
