Description
Introduction:

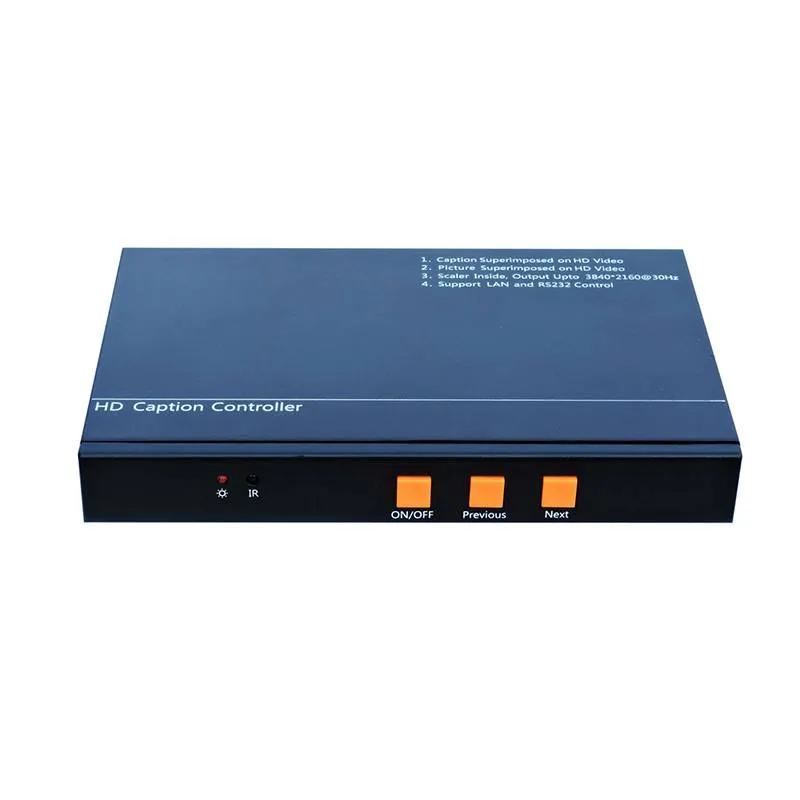

CC Series is a Caption Controller, products using advanced text overlay technology, HD HDMI signal superimposed on text and HD picture and the words flow. Users can superimpose text of any size in any position, and the font color and font background can be arbitrarily selected .
CC Series also supports the function of superimposing multiple text, users can easily control the displayed text, pictures and display mode through the local area network.
Features:
- Support 1 x HDMI signal input, HDMI signal embedded audio;
- Support 1 x HDMI signal output, HDMI signal embedded audio;
- Supports superimposing languages, pictures and videos in various languages on the signal；
- Support the establishment of scenes, and switch scenes;
- Adapted to various countries around the world writing superimposed;
- Support setting the size and position of pictures, videos and text;
- Support network control;
Specification:
| Product Hardwarear Information | Operating system | Android |
| Input/Output Signal | Input interface | 1 x HDMI |
| Input resolution | Up to 1920 x 1080@60Hz | |
| Output interface | 1x HDMI, 1 x 3.5mm audio interface | |
| Output resolution | Up to 1920 x 1080@60Hz | |
| Color | 24bit, 16.77 million colors | |
| Caption type | Text,Image,Video | |
| Control | Control method | Software |
| Stability | Safety | Hardware Structure, no virus interference |
| Continuity | 365 days, 7 x 24 hours operation | |
| Electrical Parameters | Voltage | DC12V 3A |
| Power | <5W | |
| Package | Product size | 232mm(L) x 140mm(W) x 35mm(H) |
| Product weight | 0.75KG | |
| Package size | 310mm(L) x 290mm(W) x 130mm(H) | |
| Gross weight | 2.5KG |

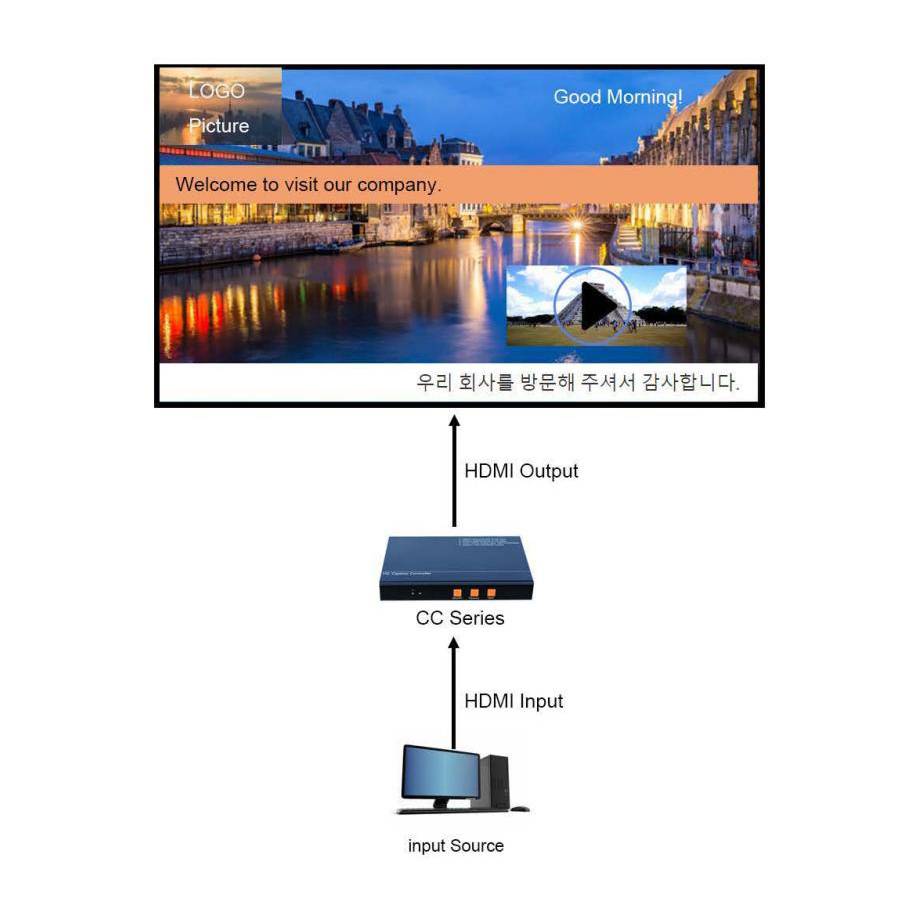

Diagram:
