Description
Introduction:
PS-WPS-61K is the 4K wireless and wired scaler collaboration system which not only support 4K wireless presenting the laptop, MacBook, Android and iOS device to the main screen to share the ideas, but also support scaler switch the HDMI and VGA sources.
Features:
- Support VESA PC resolution input, auto-detecting
- Can transmit PC’s mirror/extended desktop or Macbook’s mirror desktop
- Can transmit smart devices’ mirror, photos, videos, music etc.
- Support remote viewing the active signal on displayer by installed app on smart devices
- Support remote control the active source devices from other smart devices.
- Support “Airplay” for apple device
- Multiple inputs: 3 x HDMI, 1 x VGA
- HDMI source input with 4Kx2K@60Hz support
- Supports multiple HDMI output resolutions, such as 4Kx2K@60Hz, 4Kx2K@30Hz and 1080P.
- HDCP compliant.
- Easy-to-use panel and Web GUI.
- Control methods – Front Panel, LAN (Web GUI and TCP) and RS232.
- On-site firmware upgrading through LAN or USB ports (reserved for some devices).
Specification:
| Specifications of PS-WPS-61K on Windows | |
| Features | |
| SW format | WirelessMedia.exe for Windows |
| Security | WPA/WPA2 |
| Required Windows OS | Windows XP/Vista/7/8/8.1/10 and above, 32 & 64 bit |
| Video Capacity | Wireless Transmission 1080P@ < 30Hz |
| Distance | 35m without obstacle between lap-top WIFI module and WSP-511A0 |
| Control | |
| Transmitter | Visual button on Lap-top |
| Indicator | Green/Red visual indicator on visual button |
| Specifications of PS-WPS-61K on macOS | |
| Features | |
| SW format | WirelessMedia.app for macOS |
| Security | WPA/WPA2 |
| Required Windows OS | macOS 10.13 |
| Video Capacity | Wireless Transmission 1080P@ < 30Hz |
| Distance | 35m without obstacle between lap-top WIFI module and PS-WPS-61K |
| Control | |
| Transmitter | Visual button on Lap-top |
| Indicator | Green/Red visual indicator on visual button |
| Specifications of PS-WPS-61K | |
| Supported Formats | |
| Video Input Formats | 1x Wireless, 3x HDMI, 1x VGA |
| Format Compliance | WIFI 11n/ac |
| Video Output Formats | 1x HDMI with CEC |
| Video Output Resolution | 1920×1080@60Hz, 3840×2160@30Hz/60Hz, 1920×1200@60Hz |
| Format Compliance | HDMI1.4/HDMI2.0 |
| Audio Input Formats | 1x analog audio in |
| Audio Output Formats | HDMI: embedded digital audio
De-embedded analog stereo audio: 20 kΩ impedance |
| Inputs Connectors | |
| Wireless Input | WIFI 11n/ac |
| Outputs Connectors | |
| HDMI Output | 1x HDMI 19-pin female connector |
| Analog Audio Output | 1x 3.5mm PC audio female connectors |
| Features | |
| Number of window simultaneous on screen | 1 |
| Number of simultaneous connections | <14 |
| Data rate wireless | Up to 300Mbps, depending on the WIFI module of the lap-top |
| Video Playback Frame Rate | 20-30 FPS |
| Latency of wireless | 100-130ms (lowest latency mouse lower to 20ms) |
| Wireless transmission protocol | IEEE 802.11 a/g/n/ac |
| Frequency band | 2.4 GHZ and 5 GHz |
| Video Capacity: | 1080P @ <60Hz Airplay for IOS devices
1080P @ <60Hz WMedia.apk for Android 1080P @ <60Hz WMedia.APP for IOS devices 1080P @ <30Hz for WirelessMedia.EXE for Windows 4K @ <60Hz for wired HDMI |
| Remote Viewing | Mirroring remote view on mobile by app installed |
| Mobile Capability | Free IOS app, Free Android app |
| Encryption | AES WPA PSK, WPA2 PSK |
| Remote Mouse | Remote control presenter’s PC |
| “WirelessMedia C” | Support 1080P maximum 30frm/s over wireless channel
Adopt H.264 compression tech on the transmitter 35m distance between transmitter and base unit, “Auto-password” for each meeting or class for security, Real-time remote viewer of the main screen from mobile device app, |
| Firmware 2.2 | Preview Windows, enable preview windows to monitor each lap-top
Low-latency mouse, minimum 20ms latency for mouse HDMI AUTO-switch, auto-switch between HDMI input and wireless input Airplay 2.0, support Airplay 2.0 device |
| Firmware 3.0 | Segmented Dual Network, staying both Guest network and Corp network
Security Levels, enables three different security level Win10 Extended Desktop, enables presenter mode White Board & Annotation |
| Control | |
| On-Screen Setting | Configuration Visual button, by HID mouse, or remote control on APP |
| Ethernet | Telnet |
| RS-232 | 1x 3-pin terminal connector |
| Mechanical | |
| Dimensions (W x D x H) | 215X159X43.5MM |
| Weight | 1KG |
| Environmental | |
| Operating Temperature | +32° to +104° F (0° to +40° C) |
| Storage Temperature | -4° to +140° F (-20° to +60° C) |
| Humidity (Storage / Operating) | 20% to 90% (non-condensing) |
| Power | |
| DC Power | 12V |
| Power Consumption | 10W (max.) |
| Accessories Included | |
| 1x DC adapter with four plug-in, US, Europe, UK, Australia | |

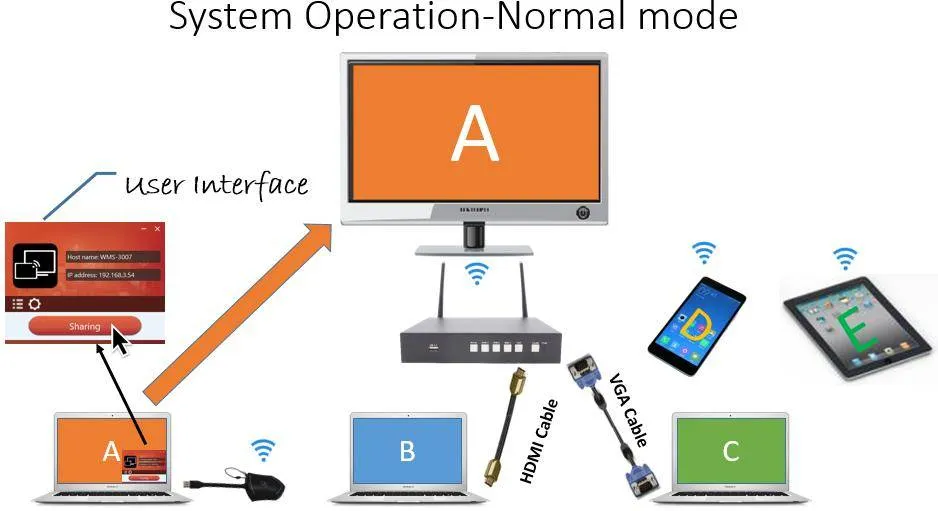

Diagram:
