Description
Introduction:

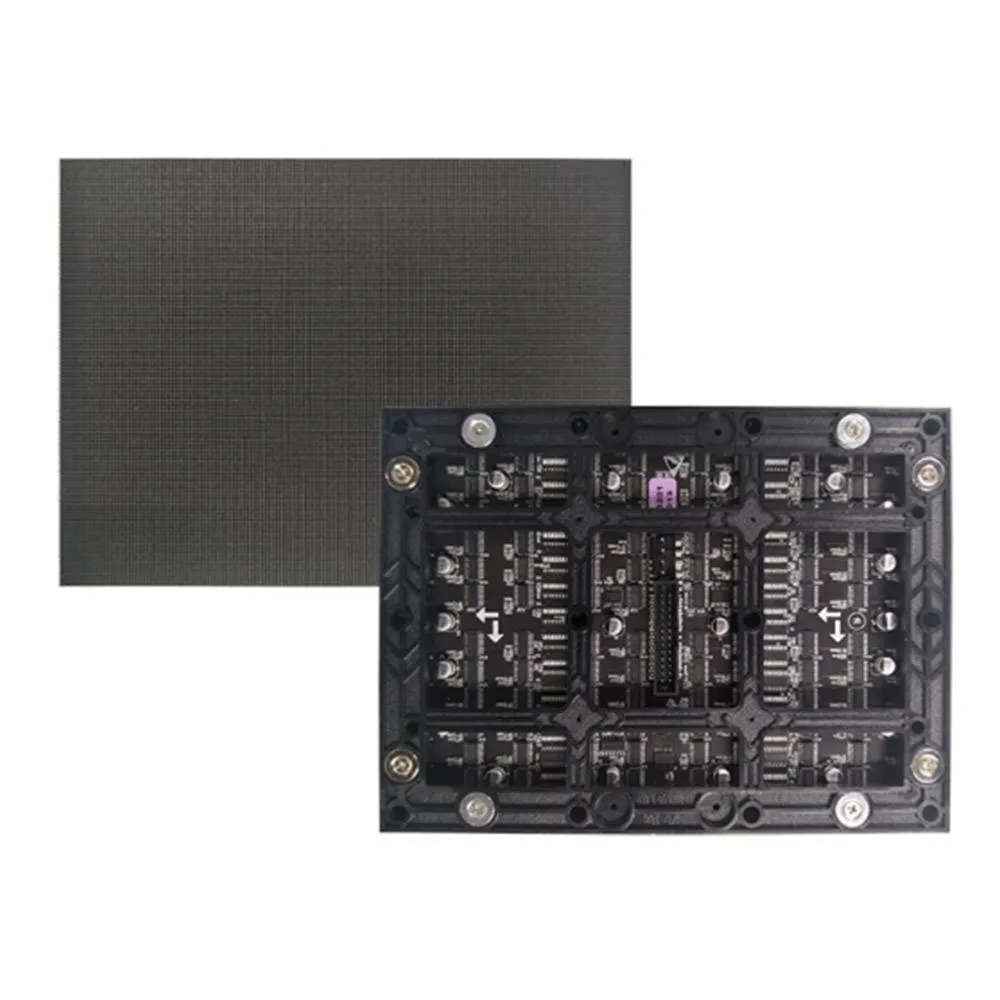

Pixel Pitch: P1.2/P1.5/P1.6/P1.8/P2.0/P2.5/P3.0/P4.0
Module Size: 320*160
Brightness: 450-550cd/sqm
Refresh Rate: 3840Hz
Features:
High Definition Image Quality
The ultra-high resolution of fine-pitch LEDs brings exquisite display effects, and it is the perfect embodiment of the new generation of ultra-high-definition LED display technology.
Easy to Achieve 4K or higher Resolution
The fine-pitch LED display can be spliced in any size and in any direction, and a variety of video source specifications can be selected, and it is easy to realize FHD and 4K large screens.
Incredible Display Effect
Pixel-by-pixel calibration, 3840Hz refresh rate, high grayscale, smart brightness adjustment with 160° wide view contribute to stunning broadcasting.
Specification:
| Specification |
P1.2 |
P1.5 |
P1.6 |
P1.8 |
P2.0 |
P2.5 |
P3.0 |
P4.0 |
|
Pixel Pitch(mm) |
1.25mm |
1.53mm |
1.667mm |
1.839mm |
2.0mm |
2.5mm |
3.076mm |
4.0mm |
|
Pixel Density (pixels/sqm) |
640,000 |
429,975 |
360,000 |
295,690 |
250,000 |
160,000 |
105,688 |
62,500 |
|
Input Voltage |
220V |
220V |
220V |
220V |
220V |
220V |
220V |
220V |
|
Lamp Type |
SMD1010 |
SMD1212 |
SMD1212 |
SMD1515 |
SMD1515 |
SMD2121 |
SMD2121 |
SMD2121 |
|
Module Size(mm) |
320×160
(mm) |
320×160
(mm) |
320×160
(mm) |
320×160
(mm) |
320×160
(mm) |
320×160
(mm) |
320×160
(mm) |
320×160
(mm) |
| Module Resolution(mm) |
256×128 |
208×104 |
192×96 |
174×87 |
160×80 |
128×64 |
104×52 |
80×40 |
| Optimum Viewing Distance |
1.2m-15m |
1.5m-20m |
1.5m-20m |
1.8m-28m |
2.0m-25m |
2.5m-30m |
3.0m-40m |
4.0m-40m |
|
Horizontal Viewing Angle |
≥160° |
≥160° |
≥160° |
≥160° |
≥160° |
≥160° |
≥160° |
≥160° |
| Vertical Viewing Angle |
≥140° |
≥140° |
≥140° |
≥140° |
≥140° |
≥140° |
≥140° |
≥140° |
|
Max. Power Consumption |
39.5w |
37.5w |
36.5w |
34.5w |
33.5w |
28.5w |
23w |
20w |
|
Drive Mode |
1/64 |
1/52 |
1/48 |
1/29 |
1/40 |
1/32 |
1/26 |
1/20 |
|
Refresh Rate |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
|
White Balance Brightness |
450cd/m² |
450cd/m² |
450cd/m² |
450cd/m² |
550cd/m² |
550cd/m² |
450cd/m² |
450cd/m² |
|
Weight |
0.2kg |
0.2kg |
0.2kg |
0.2kg |
0.18kg |
0.18kg |
0.18kg |
0.18kg |
| Operating Temp(℃)
|
-20℃~60℃ | |||||||
| Storage Temp(℃) | -25℃~60℃ | |||||||
| Humidity Range | 10%~90%, Non-condensing | |||||||
| Life Time | 75,000~100,000hr | |||||||
