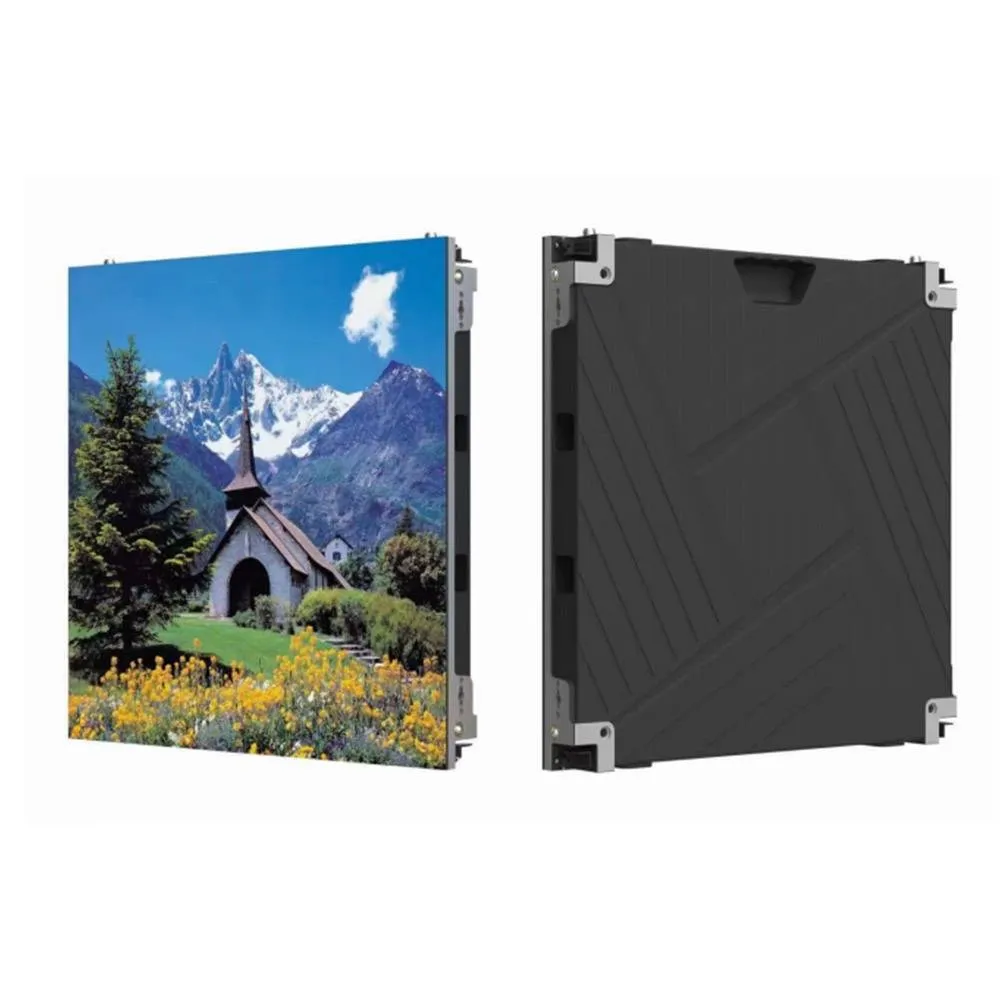

Indoor Full Color Fine Pitch LED Video Wall

Model: EID-DC-PXX

  • Pixel Pitch: P1.2/P1.5/P1.6/P1.8/P2.0/P2.5/P3.0
  • Cabinet Size: 640*480
  • Brightness: 450-600cd/sqm
  • Refresh Rate:3840Hz

Fill out the form quickly, we’ll contact you with your quote.

Request a Quote

In Stock
SKU: EID-DC-PXX Categories: ,
7-21 days Delivery
100% Original and quality
Extended Warranty

Description

Introduction:

Pixel Pitch: P1.2/P1.5/P1.6/P1.8/P2.0/P2.5/P3.0

Cabinet Size: 640*480

Brightness: 450-600cd/sqm

Refresh Rate: 3840Hz





Features:

High Definition Image Quality

The ultra-high resolution of fine-pitch LEDs brings exquisite display effects, and it is the perfect embodiment of the new generation of ultra-high-definition LED display technology.



Easy to Achieve 4K or higher Resolution

The fine-pitch LED display can be spliced in any size and in any direction, and a variety of video source specifications can be selected, and it is easy to realize FHD and 4K large screens.



Incredible Display Effect

Pixel-by-pixel calibration, 3840Hz refresh rate, high grayscale, smart brightness adjustment with 160° wide view contribute to stunning broadcasting.



Specification:

Specification

P1.2



P1.5



P1.6



P1.8



P2.0



P2.5



P3.0




Pixel Pitch(mm)



1.25mm



1.53mm



1.667mm



1.839mm



2.0mm



2.5mm



3.076mm




Pixel Density (pixels/sqm)



640,000



429,975



360,000



295,690



250,000



160,000



105,688




Cabinet Resolution



512×384



416×312



384×288



348×261



320×240



256×192



208×156




Cabinet Dimension

640×480

(mm)

640×480

(mm)

640×480

(mm)

640×480

(mm)

640×480

(mm)

640×480

(mm)

640×480

(mm)




Lamp Type



SMD1010



SMD1212



SMD1212



SMD1515



SMD1515



SMD2121



SMD2121




Module Size(mm)

320×160

(mm)

320×160

(mm)

320×160

(mm)

320×160

(mm)

320×160

(mm)

320×160

(mm)

320×160

(mm)




Module Resolution(mm)



256×128



208×104



192×96



174×87



160×80



128×64



104×52




Optimum Viewing Distance



1.2m-15m



1.5m-20m



1.5m-20m



1.8m-28m



2.0m-25m



2.5m-30m



3.0m-40m




Horizontal Viewing Angle



≥160°



≥160°



≥160°



≥160°



≥160°



≥160°



≥160°




Vertical Viewing Angle



≥140°



≥140°



≥140°



≥140°



≥140°



≥140°



≥160°




Control System

Synchronous Control Synchronous Control Synchronous Control Synchronous Control Synchronous Control Synchronous Control Synchronous Control


Average Power Consumption



237w/m²



225w/m²



219w/m²



155w/m²



147w/m²



127w/m²



124w/m²




Max. Power Consumption

711w/m² 675w/m² 657w/m²

470w/m²



440w/m²



385w/m²



377w/m²




Drive Mode



1/64



1/52



1/48



1/29



1/40



1/32



1/26




Refresh Rate



3840Hz



3840Hz



3840Hz



3840Hz



3840Hz



3840Hz



3840Hz




White Balance Brightness



450cd/m²



450cd/m²



450cd/m²



600cd/m²



600cd/m²



500cd/m²



600cd/m²




Frame Rate



50/60



50/60



50/60



50/60



50/60



50/60



50/60




Brightness Adjustment



16 levels



16 levels



16 levels



16 levels



16 levels



16 levels



16 levels




Cabinet Weight



6.7±0.05kg 6.7±0.05kg 6.7±0.05kg 6.7±0.05kg 7.0±0.05kg 7.0±0.05kg 8.0±0.05kg



Operating Temp(℃)



-20℃~60℃



Storage Temp(℃)



-25℃~60℃



Humidity Range 10%~90%, Non-condensing,  Life Time 75,000~100,000hr
