Description
Introduction:
Pure-hardware FPGA Array, modular design, parallel video processing hardware systems;
Hot-swappable for I/O modules, control modules, easy to upgrade and maintenance;
Up to 4 video wall groups control on single controller and work with variety of display terminals such as LCD, LED, DLP and projector
Features:
Supports 1080P@60hz HDMI input and output;
Supports PC and browser control, signal preview and video wall monitoring;
Supports scrolling text and background image;
Scene management, including save, switch, recall, recycle, maximum support 128 scenes;
Supports roaming, overlay, zoom in/out, multi-window switching, picture-in-picture, signal clip;
Supports LCD, DLP and LED video wall, manage up to 4 groups with different resolution at the same time;
Variety of control methods such as RS232, Network and compatible with third party control system;
Support EDID, customize the output resolution according to the physical resolution of the display system;
S pecification:
| Chassis | 2U | 3U | 6U |
| Max Input Channel | 8 | 20 | 36 |
| Quad Channel Output Card (Supports 2 windows / screen) | 12 | 16 | 36 |
| Dual Channel Output Card (Supports 4 windows / screen) | 6 | 8 | 18 |
| Input/Output Card | Input Card | Signal Type | DVI/HDMI |
| Qty Port | 4 channels | ||
| Max Resolution | 1920 x 1200@60Hz | ||
| Output Card | Signal Type | DVI/HDMI | |
| Qty Port | 4 channels | ||
| Max Resolution | 1920 × 1200@60HZ | ||
| Hardware Information | Product Type | Pure hardware FPGA architecture | |
| Processing Technology | FPGA real-time processing technology | ||
| Start Up | ＜10S | ||
| Card Type | Pure hardware pluggable,hot-swappable structure | ||
| Safety characteristics | No virus & crash | ||
| Image Processing Techniques | Display | Image combing, windowing, moving, zooming in/out, roaming, display monitoring, signal previewing, ect. | |
| Switching Response Time | Millisecond switch | ||
| Max Group | 4 | ||
| Number of signal copy | <16 | ||
| Open windows | 2/4 windows on each single screen | ||
| User manager | Multi user and multilevel permissions partition settings | ||
| Signal Preview | Support | ||
| POWER | N+1 redundant power supply structure | ||
| EDID | Support | ||
| Control | Network Control | TCP/IP | |
| RJ45 | |||
| 100M | |||
| Serial port control | RS232 DB9 | ||
| Baud Rate 115200 | |||
| Third Party Control | Supported | ||
| Working Environment | Temperature | 0-50℃ | |
| Humidity | 10-90％without condensation | ||
| Voltage | 100-240VAC 50/60Hz | ||
| （MTBF） | ＞50000h | ||

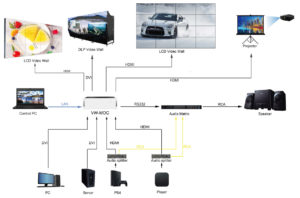

D iagram:
Professional Video Wall_VW-MOP-HDXXXX_V1.0
