Description
Introduction:
Pure-hardware FPGA Array, modular design, 6.25G/s base exchange processing speed;
Support hot-swappable for I/O modules, control modules, redundant power supply. Easy to upgrade and maintenance;
Support VGA, DVI, HDMI, CVBS, DP, SDI, HDbaseT, IP-Video, Fiber input sources and VGA, DVI, HDMI, SDI, CVBS, HDbaseT, Fiber output
Features:
Up to 4K@60hz HDMI 2.0 input and 4K@30hz HDMI 1.4 Output;
Supports roaming, overlay, zoom in/out, multi-window switching, picture-in-picture, signal clip;
Supports LCD, DLP and LED video wall, manage up to 4 groups with different resolution at the same time;
Variety of control methods such as RS232, Network, Keypad and compatible with third party control system;
Support EDID, customize the output resolution according to the physical resolution of the display system;
Advanced image decoding technology, compatible with a number of manufacturers’ IPC signal and seamless access with variety resolutions
S pecification:

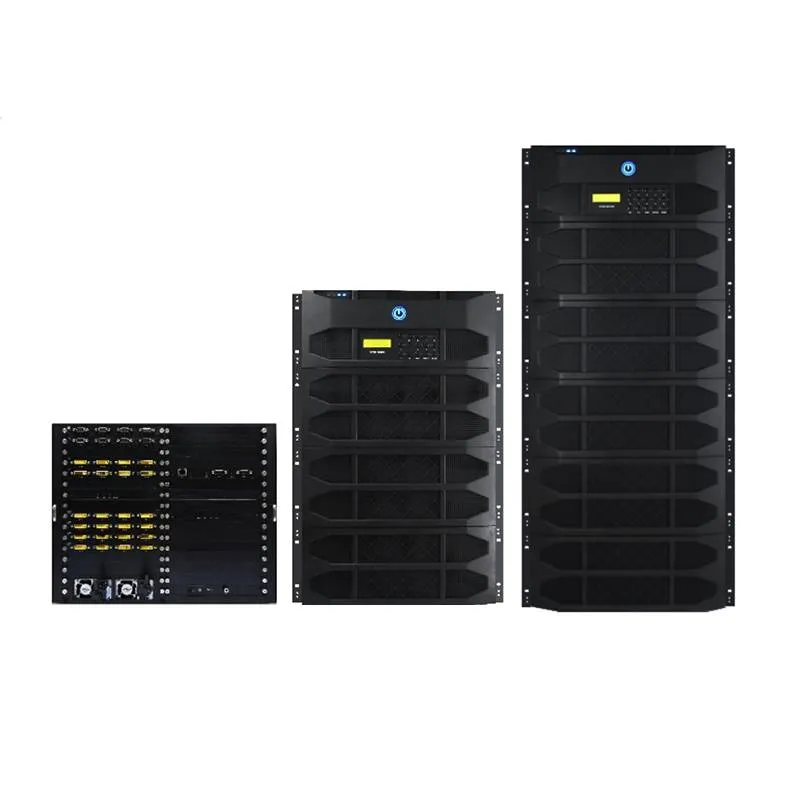

| Chassis | 4U | 8U | 16U | 24U | 32U(Double) |
| Input Slots | 4 | 9 | 20 | 40 | 80 |
| Output Slots | 4 | 8 | 20 | 40 | 80 |
| Input/Output Card | Input Card | Signal Type | Duallink DVI/VGA/DVI/HDMI/HDMI1.4/Ypbpr/CVBS/SDI /IPV/HDBaseT/Fiber |
| Qty Port | 2/4/8 channel | ||
| Max Resolution | 3840×2160@60Hz | ||
| Output Card | Signal Type | VGA/DVI/HDMI/HDMI1.4/ CVBS/SDI/HDBaseT/Fiber | |
| Qty Port | 2/4 channel | ||
| Max Resolution | 3840*2160@30HZ | ||
| Hardware Information | Product Type | Pure hardware FPGA architecture | |
| Processing Technology | FPGA real-time processing technology | ||
| Start Up | ＜30S | ||
| Card Type | Pure hardware pluggable,hot-swappable structure | ||
| Power supply configuration | N+1 | ||
| Safety characteristics | No virus & crash | ||
| Image Processing Techniques | Display | Image combing, windowing, moving, zooming in/out, roaming, display monitoring, signal previewing, ect. | |
| Switching Response Time | Millisecond switch | ||
| Max Group | 16 | ||
| Number of signal copy | ≥8 | ||
| Dual-Screen Windows | 8 | ||
| IP decoding | Compatible with most IPC and mainstream providers | ||
| User manager | Multi user and multilevel permissions partition settings | ||
| Preview and Echo | Support | ||
| Mobile Control | IPad visualization management | ||
| EDID Editor | Input EDIDself-adaption, output EDID edit and load | ||
| Image | Subtitle superposition and image cropping | ||
| Control | Network Control | TCP/IP | |
| RJ45 | |||
| 10M/100M | |||
| Serial port control | RS232 DB9 | ||
| Baud Rate 115200 | |||
| Third Party Control | Infrared remote control, serial port, keyboard, network, central control, mobile terminal | ||
| Working Environment | Temperature | -15-60℃ | |
| Humidity | 10-90％without condensation | ||
| Voltage | 100-240VAC 50/60Hz | ||
| （MTBF） | ＞50000h | ||

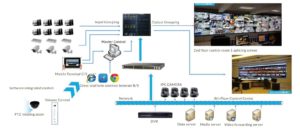

Diagram:
