Description
Introduction:

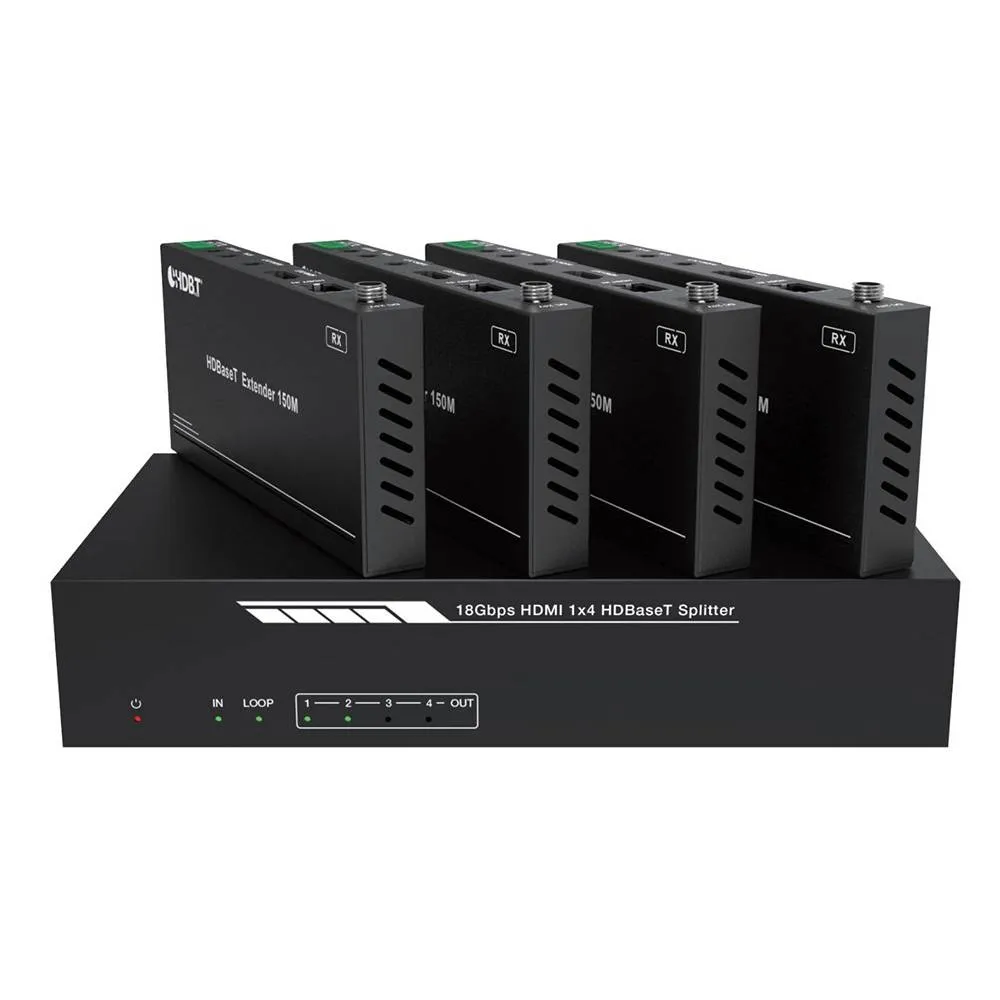

HS-HB-14 18Gbps HDMI 1×4 HDBaseT Splitter can distribute 1 source signal to any 4 display devices. The HDMI signal transmission distance can be extended up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable. The product supports up to 7.1CH HD audio pass-through. Audio extract function and advanced EDID management are supported.
Features:
HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
Support 18Gbps video bandwidth
Support video resolution up to 4K2K@60Hz 4:4:4
Support HDR, HDR10+, HLG and Dolby vision
Support up to 7.1CH HD audio pass-through
Support digital and analog audio de-embedded output
Extend the signal transmission distance up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable
Support 1 HDMI input, 1 HDMI loop output and 4 HDBaseT outputs.
IR, RS-232 routed to HDBaseT output
Advanced EDID management
Support one-way POC function (only from transmitter to receiver)
Compact design for easy and flexible installation
Specification:
| Technical | |||
| HDMI Compliance | HDMI 2.0b | ||
| HDCP Compliance | HDCP 2.2/1.x | ||
| Video Bandwidth | 594MHz/18Gbps | ||
| Video Resolution | Up to 4k2k@60Hz 4:4:4 | ||
|
Color Depth |
8-bit,10-bit,12-bit(1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4)
8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0) |
||
| Color Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 | ||
| HDR | Support HDR, HDR10+, HLG, Dolby vision | ||
|
HDMI Audio Formats |
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X | ||
| Coaxial Audio Formats | PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1 | ||
| Analog Audio Formats | PCM 2.0CH | ||
| ESD Protection | Human body model—±8kV (Air-gap discharge) &
±4kV (Contact discharge) |
||
| Connection | |||
| Input | 1×HDMI Type A (19-pin female) | ||
|
Output |
1×HDMI Type A (19-pin female） 4x HDBaseT OUT [RJ45]
1x Coaxial Audio OUT [RCA] 1x L/R Audio OUT [5-pin phoenix connector] |
||
|
Control |
1×RS-232 (3-pin phoenix connector） 1x EDID DIP switch [5-pin]
1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] |
||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Silkscreen Color | Black | ||
| Dimensions | Transmitter: 220mm (W) × 130mm (D) × 40mm (H) Receiver: 140mm (W) × 65mm (D) × 18mm (H) | ||
| Weight | Transmitter: 853g Receiver: 246g | ||
| Power Supply | Input: AC100 – 240V 50/60Hz, Output: DC 24V/2.7A
(US/EU standards, CE/FCC/UL certified) |
||
| Power Consumption | 35W | ||
| Operation
Temperature |
0°C ~ 40°C / 32°F ~ 104°F | ||
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F | ||
| Relative Humidity | 20~90% RH (non-condensing) | ||

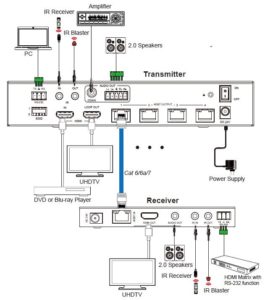

Diagram:
