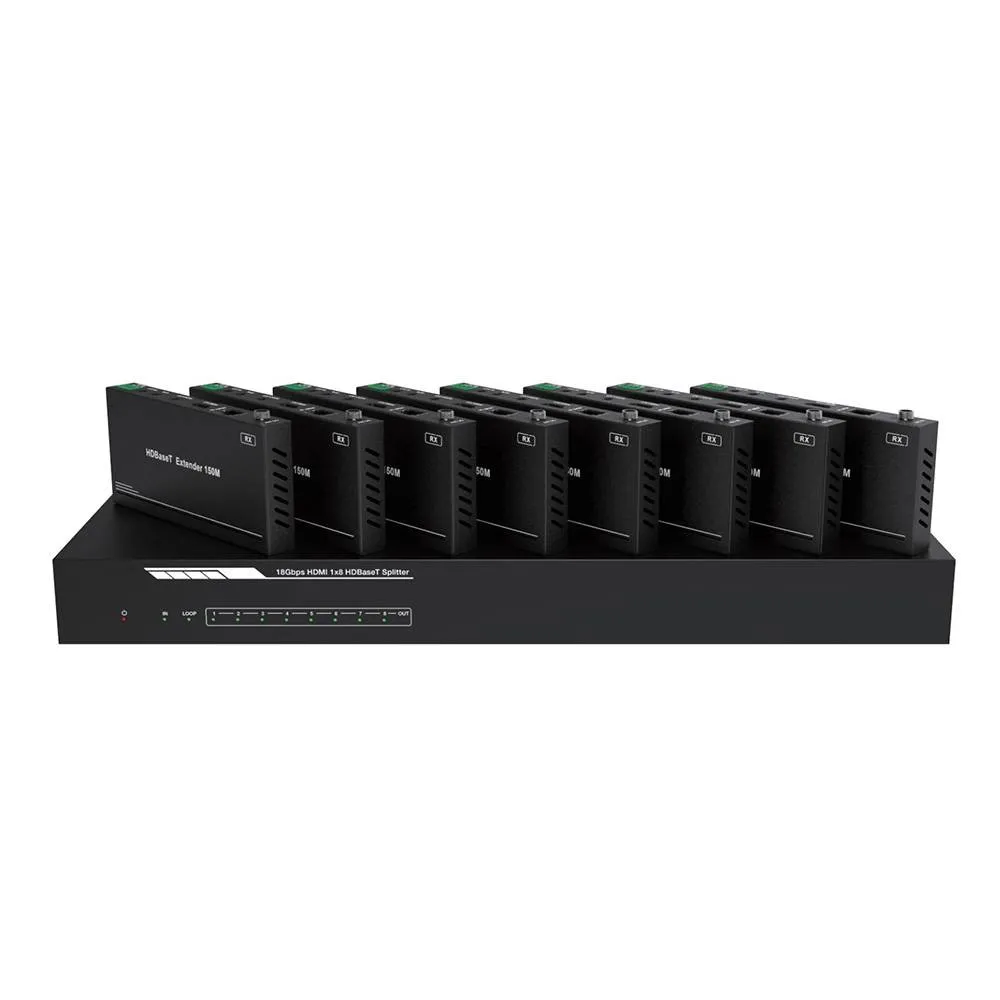

4K@60hz 18Gbps HDCP 2.2 HDR 150m 1×8 HDBaseT Splitter with EDID Management

Model:HS-HB-18

  • Input:1×HDMI Type A
  • Output:1×HDMI Type A 、8x HDBaseT OUT 、1x Coaxial Audio OUT 、1x L/R Audio OUT
  • Control:1×RS-232 、 1x EDID DIP switch 、1x IR IN 、1x IR OUT

Fill out the form quickly, we’ll contact you with your quote.

Request a Quote

In Stock
SKU: HS-HB-18 Categories: ,
7-21 days Delivery
100% Original and quality
Extended Warranty

Description

Introduction:

HS-HB-18 18Gbps HDMI 1×8 HDBaseT Splitter can distribute 1 source signal to any 8 display devices. The HDMI signal transmission distance can be extended up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable. The product supports up to 7.1CH HD audio pass-through. Audio extract function and advanced EDID management are supported.



Features:

HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant

Support 18Gbps video bandwidth

Support video resolution up to 4K2K@60Hz 4:4:4

Support HDR, HDR10+, HLG and Dolby vision

Support up to 7.1CH HD audio pass-through

Support digital and analog audio de-embedded output

Extend the signal transmission distance up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable

Support 1 HDMI input, 1 HDMI loop output and 8 HDBaseT outputs.

IR, RS-232 routed to HDBaseT output

Advanced EDID management

Support one-way POC function (only from transmitter to receiver)

Compact design for easy and flexible installation

Specification:

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2/1.x
Video Bandwidth 594MHz/18Gbps
Video Resolution Up to 4k2k@60Hz 4:4:4


Color Depth

8-bit,10-bit,12-bit(1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4)

8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0)

Color Space RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDR Support HDR, HDR10+, HLG, Dolby vision


HDMI Audio Formats

LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Coaxial Audio Formats PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1
Analog Audio Formats PCM 2.0CH
ESD Protection Human body model—±8kV (Air-gap discharge) &

±4kV (Contact discharge)

Connection
Input 1×HDMI Type A (19-pin female)


Output

1×HDMI Type A (19-pin female) 8x HDBaseT OUT [RJ45]

1x Coaxial Audio OUT [RCA]

1x L/R Audio OUT [5-pin phoenix connector]



Control

1×RS-232 (3-pin phoenix connector) 1x EDID DIP switch [5-pin]

1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack]

Mechanical
Housing Metal Enclosure
Silkscreen Color Black
Dimensions Transmitter: 440mm (W) × 130mm (D) × 44mm (H) Receiver: 140mm (W) × 65mm (D) × 18mm (H)
Weight Transmitter: 1.62kg Receiver: 246g
Power Supply Input: AC100 – 240V 50/60Hz, Output: DC 24V/3.75A

(US/EU standards, CE/FCC/UL certified)

Power Consumption 72W
Operation

Temperature

0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)

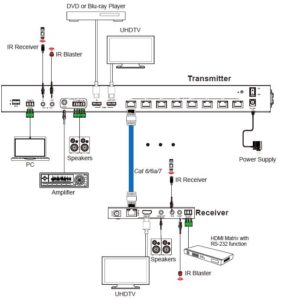

Diagram:
