Description
Introduction:

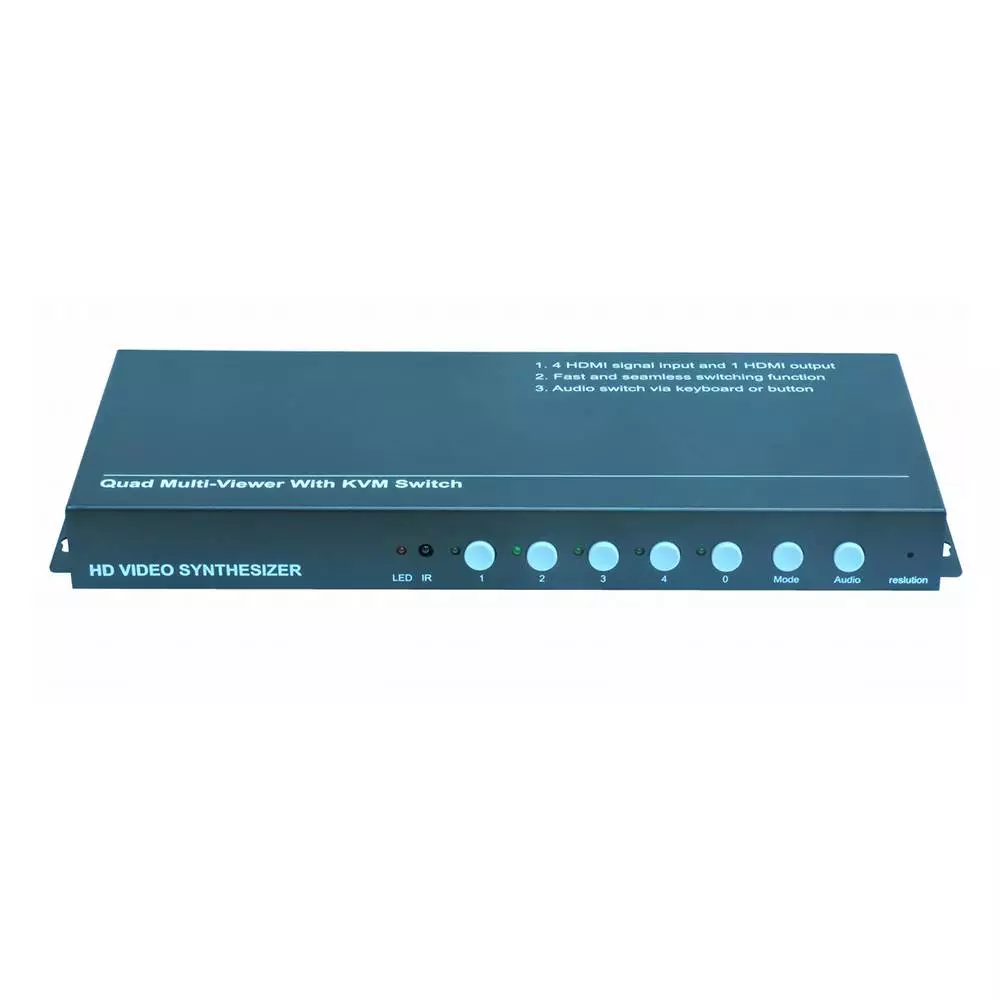

SW-HD-HD0401K is a multiview 4 channels input and 1 channel output with KVM. The main function is to convert the 4 x HDMI signals input to the multiview into one HDMI signal output, so that 4 digital signals are displayed on a HD display unit at the same time.
Features:
Supports four-split, left-right two-split, up-down two-split, full-screen display modes;
4 x HDMI signal input, HDMI signal embedded audio;
1 x HDMI output, HDMI signal embedded audio, support signal output with maximum resolution of 1920 * 1080@60Hz;
Support 3.5mm audio interface output;
In split mode, the audio and kvm follows the mouse movement to switch;
Support seamless switching of the second-cut function, all single-screen or different split modes switch without black screen;
Support chassis button, infrared remote control, and keyboard hotkey control functions;
S pecification:
| Name | Specification |
| Input Interface | 4 x HDMI / 4 x USB |
| Input Resoultion | 1920 x 1080@30Hz and downward compatibility |
| Output Interface | 1 x HDMI / 1 x 3.5mm audio |
| Output Resoultion | 1920 x 1080@60Hz and downward compatibility |
| Color | 24bit, 16.77 million colors |
| Splicing Mode | 1 x 2, 2 x 2, 2 x 1, full screen |
| Control Method | Chassis button, remote control, keyboard hot keys |
| Safety | Hardware structure, no virus interference |
| Continuity | 365 days, 7 x 24 hours operation |
| Voltage | DC 12V |
| Power | <15W |
| Size | 288mm(L) x 30mm(W) x 119mm(H) |
| Weight | 0.75KG |
D iagram:
