Description
Introduction:

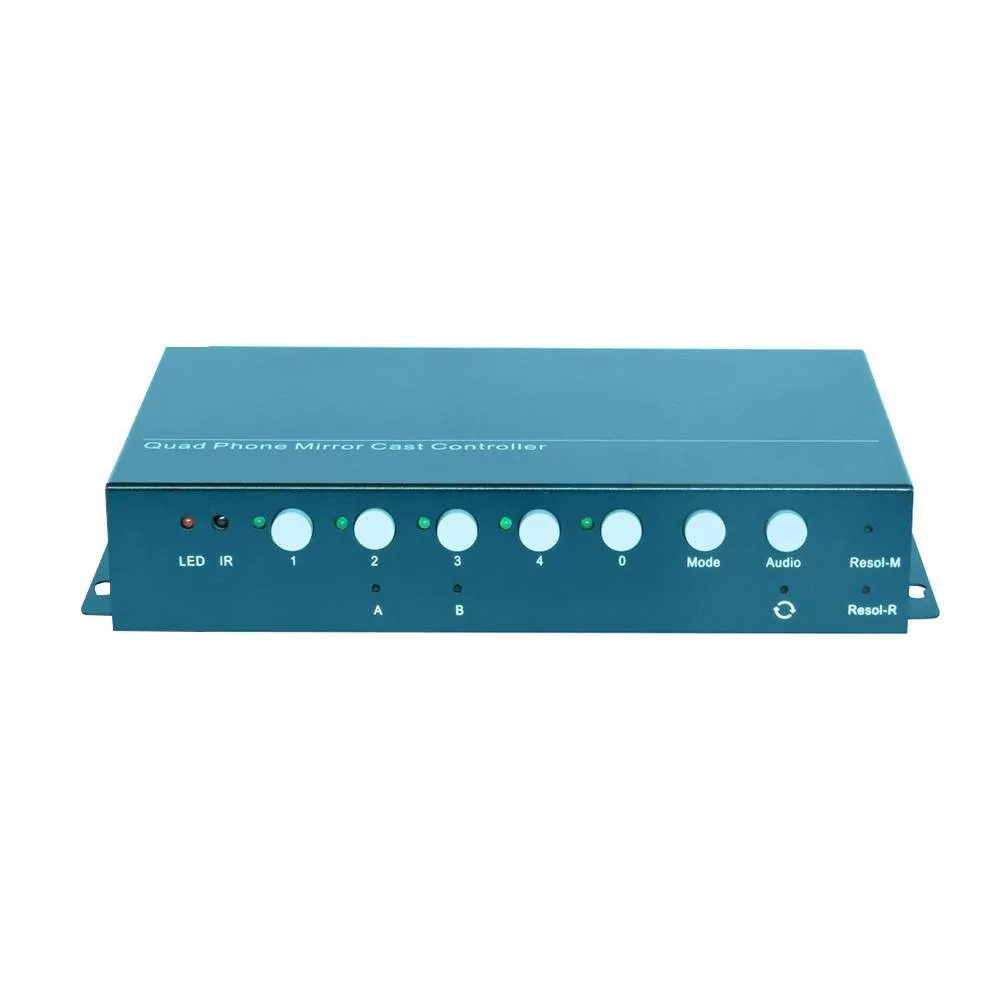

SW-HD-UHD0401M is a multiviewer 4 channels input and 1 channel output with MHL. The main function is to convert the 4 x HDMI signals input to multiewer into single HDMI signal output, so that 4 digital signals are displayed on a UHD display unit at the same time. And MHL supports connecting to mobile phone display, suitable for live broadcast industry, advertising industry and so on.
Features:
Support 4 x HDMI(MHL) inputs;
Support 1 x HDMI signal output;
The input resolution is up to 3840 x 2160@60Hz, and the output is up to 3840 x 2160@60HZ, which is backward compatible;
Support PIP ,Vertical screen display;
One-click screenshot function；
Support image rotation of 90 degrees and 270 degrees;
Specification:
| Product Hardware Information | System structure | Pure hardware architecture |
| Operating system | No operating system | |
| Input/Output Signal | Input interface | 4 x HDMI2.0 |
| Input resolution | Up to 3840 x 2160@60Hz | |
| Output interface | 1 x HDMI2.0, 2 x 3.5mm audio interface | |
| Output resolution | Up to 3840 x 2160@60Hz | |
| Image Processing | Color | 24bit, 16.77 million colors |
| Splicing mode | 1 x 2, 2 x 2, Single signal full screen… | |
| Control | Control method | Chassis keys, remote control |
| Stability | Safety | Hardware Structure, no virus interference |
| Continuity | 365 days, 7 x 24 hours operation | |
| Electrical Parameters | Voltage | DC 12V |
| Power | <10W | |
| Package | Product size | 199mm(L) x 119mm(W) x 39mm(H) |
| Product weight | 0.7KG | |
| Package size | 290mm(L) x 210mm(W) x 139mm(H) | |
| Gross weight | 1.9KG |

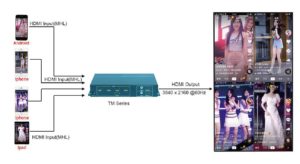

Diagram:
