Description
Introduction:

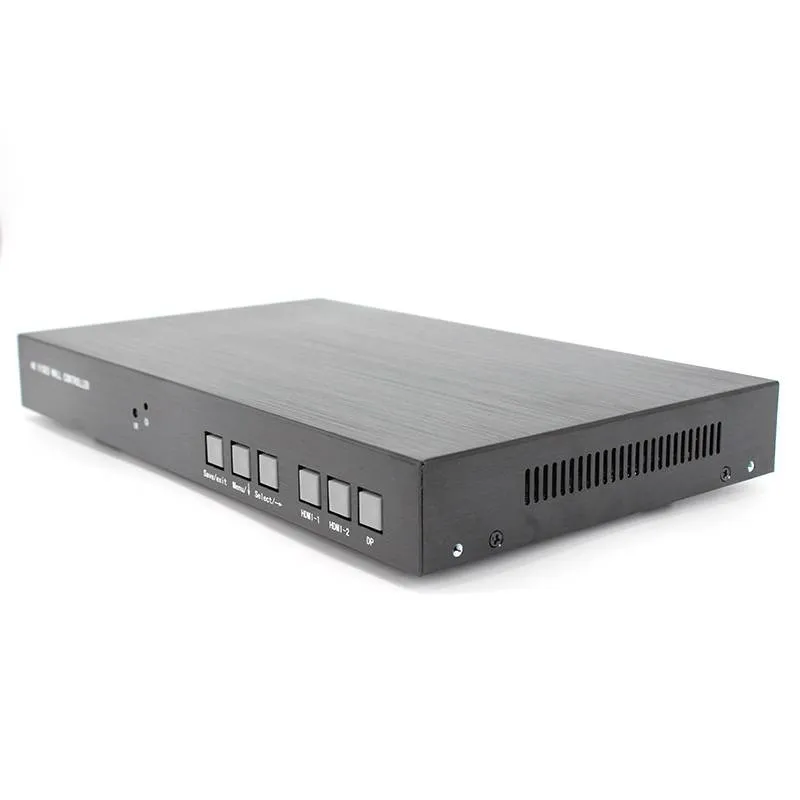

CE-UHD Series is a 4K four-screen video wall processor. Its main function is to display a 3840×2160@60HZ ultra-high-definition image on a 2×2 splicing display unit. The product adopts advanced image processing technology, and the input signal can support HDMI2.0 at most, that is, 3840×2160@60HZ. Even when playing fast animation, there will be no delay or frame loss.
Features:
- Support 1 x HDMI2.0, 1 x HDMI1.4, 1 x DP1.2 signal input, Maximum resolution support 3840×2160@60Hz;
- Support custom 4 x HDMI 1.3 signal output, each output resolution 1920×1080 @ 60HZ;
- Realize all 2×2 four-screen splicing functions, such as 1×2, 1×3, 1×4 display mode;
- Support screen 180° rotation, Multiple splicing modes can be realized;
- Output HDMI built-in audio, which can achieve video + audio synchronization, and supports 3.5mm audio interface, supports external speakers.
Specification:
| Product Hardwarear Information | System structure | Pure hardware architecture |
| Operating system | No CPU and operating system | |
| Input/Output Signal | Input interface | 1 x HDMI2.0, 1 x DP1.2,1 x HDMI1.4 |
| Input resolution | Up to 3840 x 2160@60Hz | |
| Output interface | 4 x HDMI1.3, 1 x 3.5mm audio | |
| Output resolution | Up to 1920 x 1080@60Hz | |
| Image Processing | Color | 24bit, 16.77 million colors |
| Splicing mode | 2 x 2 / 1 x 4 / 1 x 3 / 1 x 2 / 4 x 1… | |
| Control | Control method | Chassis button, remote control |
| Stability | Safety | Hardware Structure, no virus interference |
| Continuity | 365 days, 7 x 24 hours operation | |
| Electrical Parameters | Voltage | DC12V 3A |
| Power | <12W | |
| Package | Product size | 299mm(L) x 175mm(W) x 35mm(H) |
| Product weight | 0.75KG | |
| Package size | 310mm(L) x 290mm(W) x 130mm(H) | |
| Gross weight | 2.5KG |

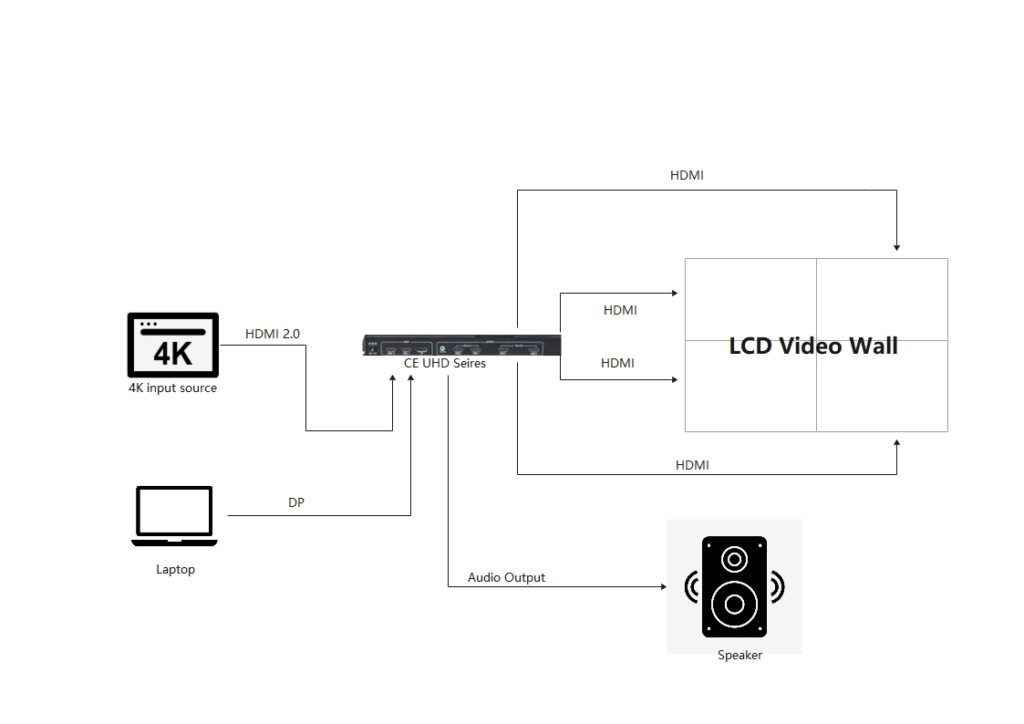

Diagram:
