Description
Introduction:

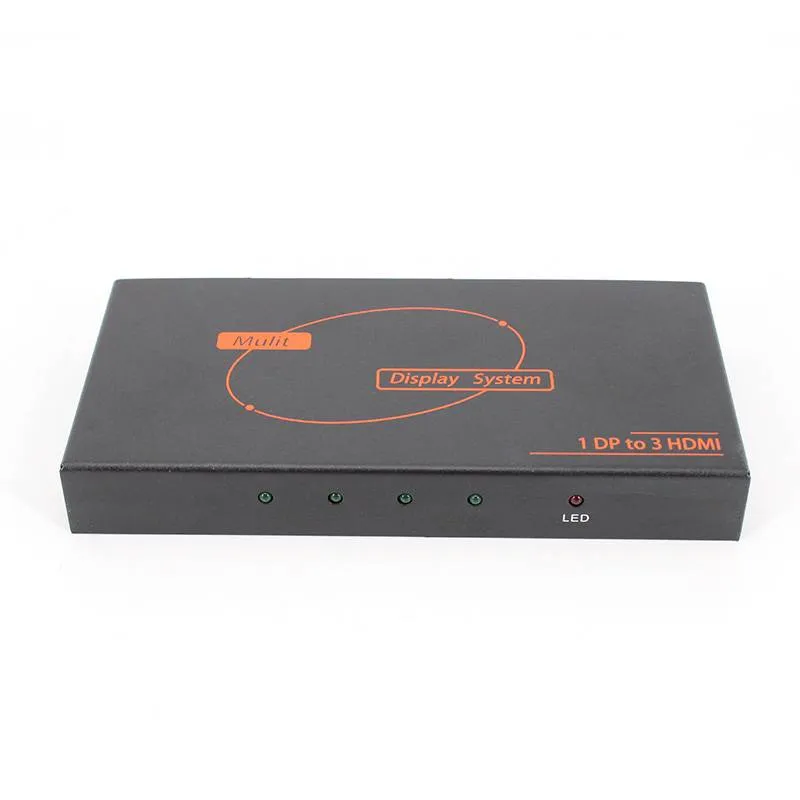

CM-UHD series is a multi-display adapter 1 channel input and 3 channels output that supports 1 x DP signal input and 3 x HDMI signal outputs. Its main function is to make a computer’s DP output expand 3 x HDMI signals, and achieve that each output HDMI interface can run a program full screen.
Features:
- 1 x DP signal input, 3 x HDMI signal output, HDMI signal embed Audio.
- Support three-screen expansion function, and can be backward compatible with two-screen expansion.
- Each output port can be set up to 1920×1200 @ 60Hz output.
- Support setting the resolution of each display separately.
- Each output can run and make the program full screen display.
Specification:
| Product Hardwarear Information | System structure | Pure hardware architecture |
| Operating system | No CPU and operating system | |
| Input/Output Signal | Input interface | 1 x DP (Windows system) |
| Input resolution | Up to 5760 x 1080@60Hz | |
| Output interface | 3 x HDMI1.3 | |
| Output resolution | Up to 1920 x 1080@60Hz | |
| Image Processing | Color | 24bit, 16.77 million colors |
| Splicing mode | 1 x 3 / 3 x 1 / 2 x 1 / 1 x 2 | |
| Control | Control method | Input PC (Windows system) |
| Stability | Safety | Hardware Structure, no virus interference |
| Continuity | 365 days, 7 x 24 hours operation | |
| Electrical Parameters | Voltage | DC 5V |
| Power | 5W | |
| Package | Product size | 150mm(L) x 71mm(W) x 20mm(H) |
| Product weight | 0.3KG | |
| Package size | 208mm(L) x 107mm(W) x 62mm(H) | |
| Gross weight | 0.6KG |

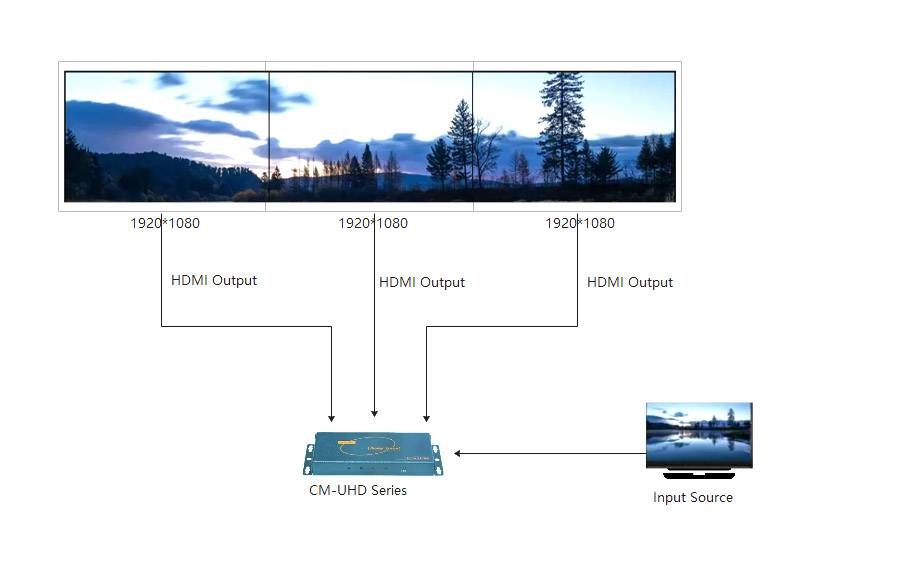

Diagram:
