Description
Introduction:

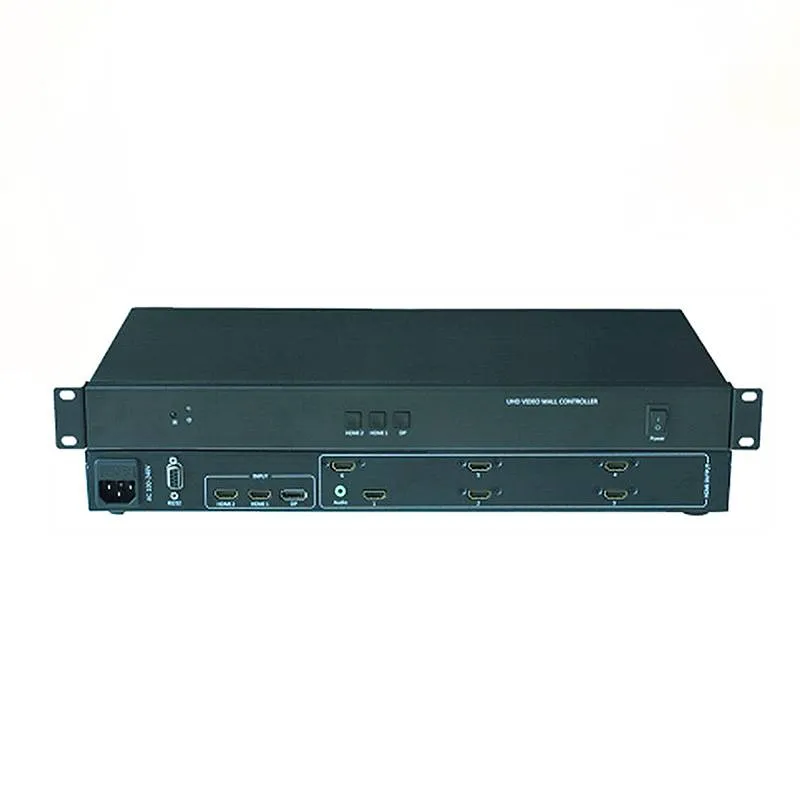

CR pro creative video wall processor is used in exhibition and other applications, video wall is not limited as the media to show the information , creative design can greatly enhance the overall display effects and to bring more impact visual experience. CR pro creative video wall processor can personalized video wall for users, it has been widely used in the exhibition hall, business hall, the street windows and other applications.
Â
Features:
4K Ultra HD signal support
Support 4K@60hz Ultra HD signal acquisition, HDMI2.0 interface Resolution up to 3840*2160@60Hz, adaptive backward compatible;
More Flexible Layout
Besides supporting traditional MxN splicing, the position of the display device can also be set free, the output signal by the frame sync, smooth consistency, without tearing. Built-in screen rotation function, without the need for special handling sources, each output signal can be independent of 90 ° / 180 ° / 270 ° rotation , supports horizontal / vertical screen combination in the same group screen.
Unlimited Video Wall Scale
The CR pro creative video wall processor supports custom output ratios from 2 to 24, supports video walls with up to 24 monitors, and the input resolution is much higher than 4K. We also accept special customizations when your creative video wall design requires more than 24 monitors.
Edge Compensation
Support eliminated a sense of visual incoherence because of the lcd’s edge, and the compensation range can be freely set.
Specification:
| Input | HDMI | Signal format | HDMI 2.0/DP 1.2/HDMI 1.4 |
| Resolution | Â Max 3840*2160@60Hz | ||
| Output | HDMI | Audio Output | 1 stereo |
| Signal format | HDMI 1.3 | ||
| Interface type | HDMI TYPE A | ||
| Output Channel | 24-Feb | ||
| Resolution | 1920*1080@60Hz | ||
| Image Processing | Image rotation | 90 °, 180 °, 270, mirroring | |
| Edge Compensation | Support | ||
| Color | 24bit, 16.77m | ||
| Control | Serial port | RS232 | |
| Key Button | Support | ||
| Environment | Temperature | 0°C-40°C | |
| Humidity | 10%-90% | ||
| Size | 442(W)*242 (D) *45-90(H)mm | ||
| Voltage | 100-220V | ||
| Power | Max 20W | ||
| Weight | 3.0-5.0 KG | ||
