Description
Introduction:

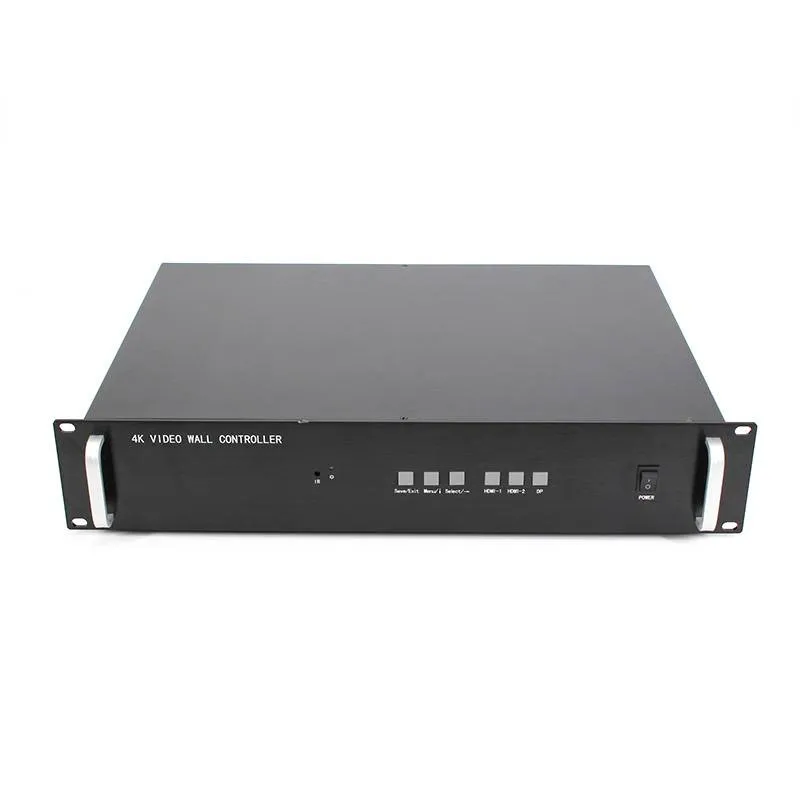

The CS-UHD series is a customized 4K video wall processor, its main function is to display a 3840×2160@60HZ ultra-high-definition 4K image on the M x N splicing display unit. The product adopts advanced image processing technology, and the input signal can support HDMI2.0 at most, that 3840×2160@60HZ. Even when playing fast animation, there will be no delay or frame loss.
Features:

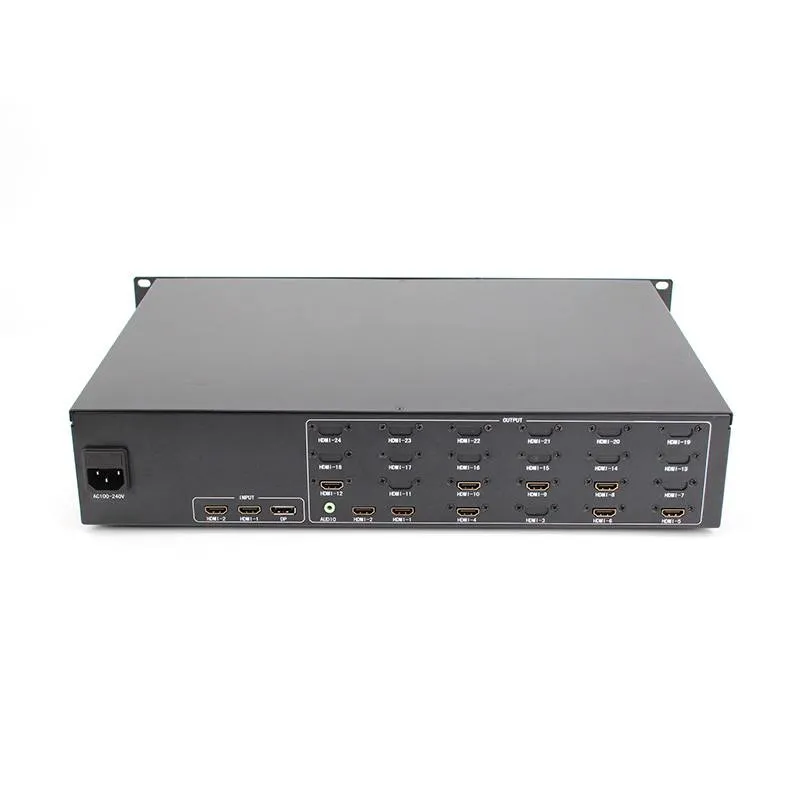

- Support 1 x HDMI2.0, 1 x HDMI1.4, 1 x DP1.2 signal input, Maximum resolution support 3840×2160@60Hz.
- Support custom 2 to 24 channels HDMI 1.3 signal output, each output resolution 1920×1080 @ 60HZ.
- Using modular design, single machine can customize 2 to 24 screen splicing.
- Support screen 180° rotation, Multiple splicing modes can be realized.
- Output HDMI built-in audio, which can achieve video + audio synchronization, and supports 3.5mm audio interface, supports external speakers.
Specification:
| Product Hardwarear Information | System structure | Pure hardware architecture |
| Operating system | No operating system | |
| Input/Output Signal | Input interface | 1 x HDMI2.0, 1 x DP,1 x HDMI1.4 |
| Input resolution | Up to 3840 x 2160@60Hz | |
| Output interface | 2~24 HDMI1.3 | |
| Output resolution | Up to 1920 x 1080@60Hz | |
| Image Processing | Color | 24bit, 16.77 million colors |
| Splicing mode | 2 x 2 / 3 x 3 / 2 x 3 / 4 x 4 / 4 x 6… | |
| Control | Control method | Chassis button, remote control |
| Stability | Safety | Hardware Structure, no virus interference |
| Continuity | 365 days, 7 x 24 hours operation | |
| Electrical Parameters | Voltage | 100 ~ 240V |
| Power | <120W | |
| Package | Product size | 441mm(L) x 310mm(W) x 88mm(H) |
| Product weight | 5KG | |
| Package size | 525mm(L) x 400mm(W) x 180mm(H) | |
| Gross weight | 6.75KG |

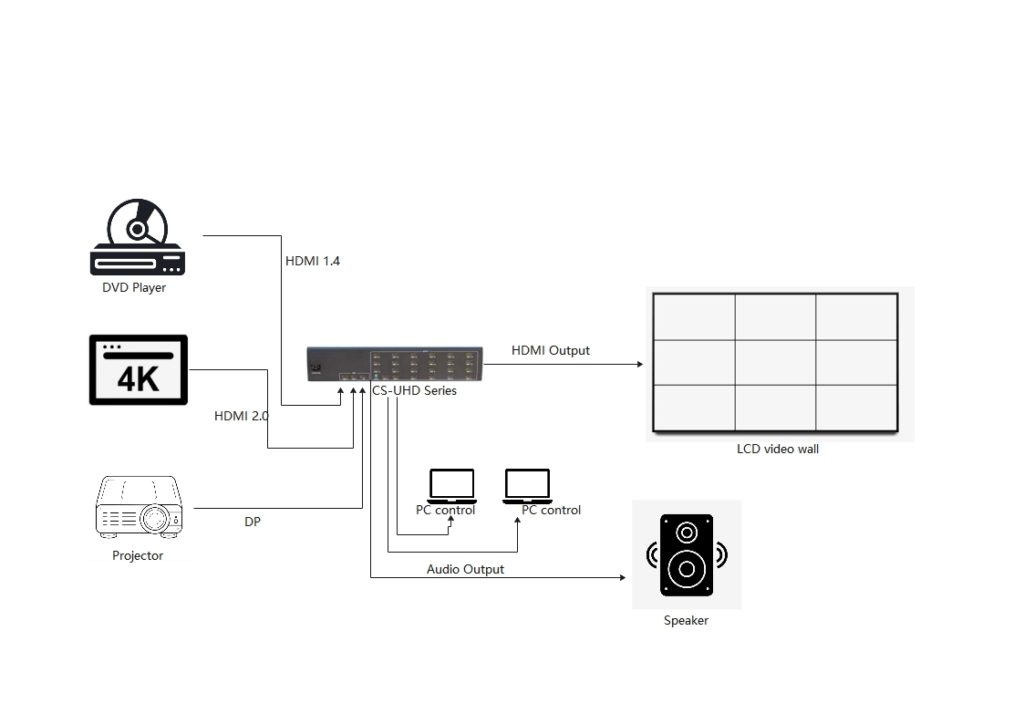

Diagram:
