Description

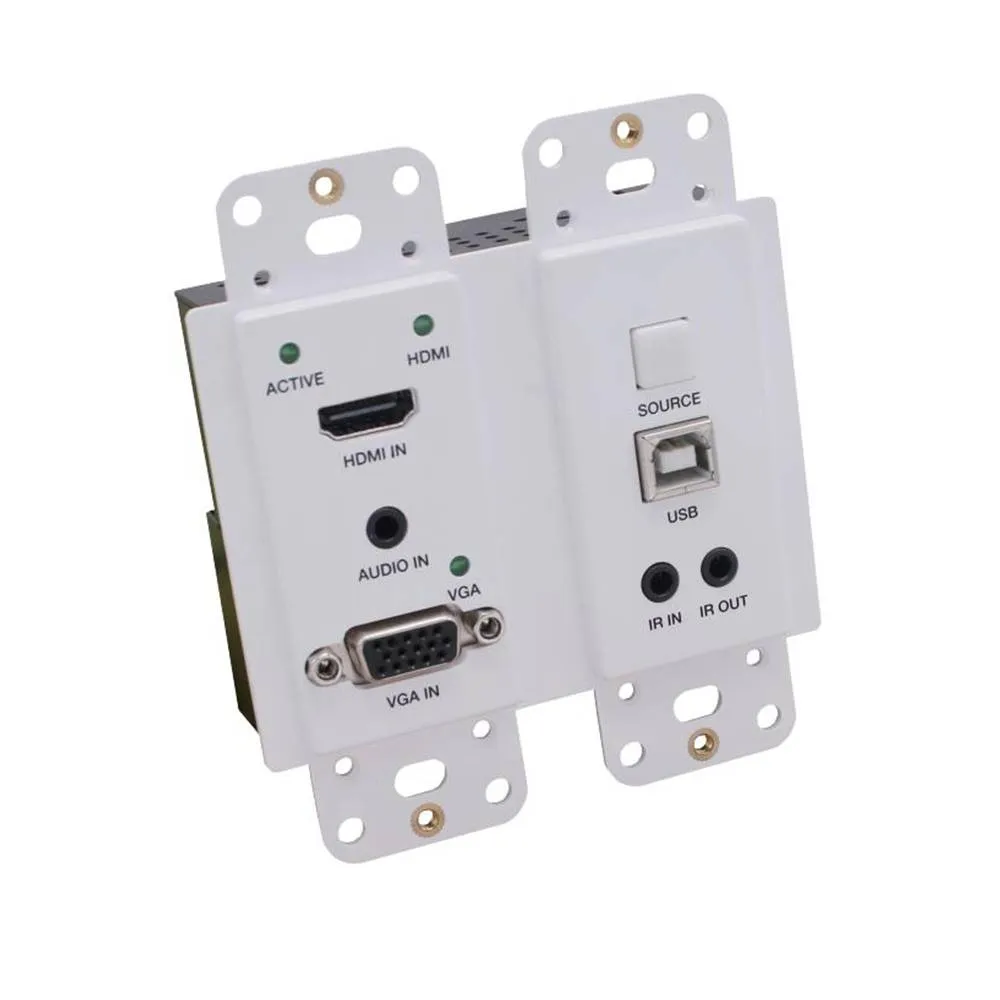

Introduction:
WP-HB-HVU70 supports HDMI and VGA with audio inputs within a standard 2-Gang US Decora wall box. It can transmit HDMI signal over CAT6/6a/7 to the distance up to 131ft/40m for 4K2K@60Hz(4:4:4) or 1080p60Hz up to 230ft/70m. Auto-switching allows user to plug-in and
play. Built-in two-way IR, RS-232 and USB transmissions for easy device control.
Features:
HDMI 2.0b 18Gbps, HDCP 2.2 compliant
up to 4K2K@60Hz(4:4:4), 4K2K@30Hz, 1080p@120Hz
up to 7.1 channels HD audio
HDBaseT™ over a single CAT6/6a/7 cable up to 230ft/40m distancefor 4K2K@60Hz(4:4:4) or up to 230ft/70m distance for 1080p60Hz
Built-in scaling for VGA input
Automatic and manual switching modes
Two-way IR, RS-232 and USB supported
2-Gang US Decora Wall
S pecification:
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18 Gbps |
| HDMI Video Resolution | 4K2K@50/60Hz 4:4:4 (max) |
| Color Space | RGB/YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 10-bit, 12-bit |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| VGA Video Resolution | 1080P@50/60Hz 4:4:4 (max) |
| ESD Protection | Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |
| Transmitter | Inputs: 1x HDMI Type A [19-pin female] 1x VGA [15-pin female] 1x USB [USB-B] 1x IR IN [Phoenix jack] 1x RS-232 [Phoenix jack] 1×AUDIO IN [3.5mm Stereo Mini-jack] Outputs:1x HDBaseT Out [RJ45] 1x IR OUT [Phoenix jack] |
| Mechanical | |
| Housing | Plastic Enclosure |
| Color | White |
| Dimensions | 91.8mm [W] x 104.8mm [D] x 43mm [H] |
| Weight | 212.5g |
| Power Supply | Input: AC100 – 240V 50/60Hz Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 6W (Max) |
| Operating Temperature | 32 – 104°F / 0 – 40°C |
| Storage Temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (no condensation) |

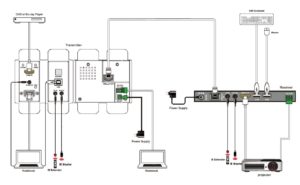

D iagram:
